1696279-01 - Brute 22" Snow Thrower, 8.0 Gross TP (2014) Wheel & Body Covering Group Parts Diagram

22" Snow Thrower, 8.0 Gross TP

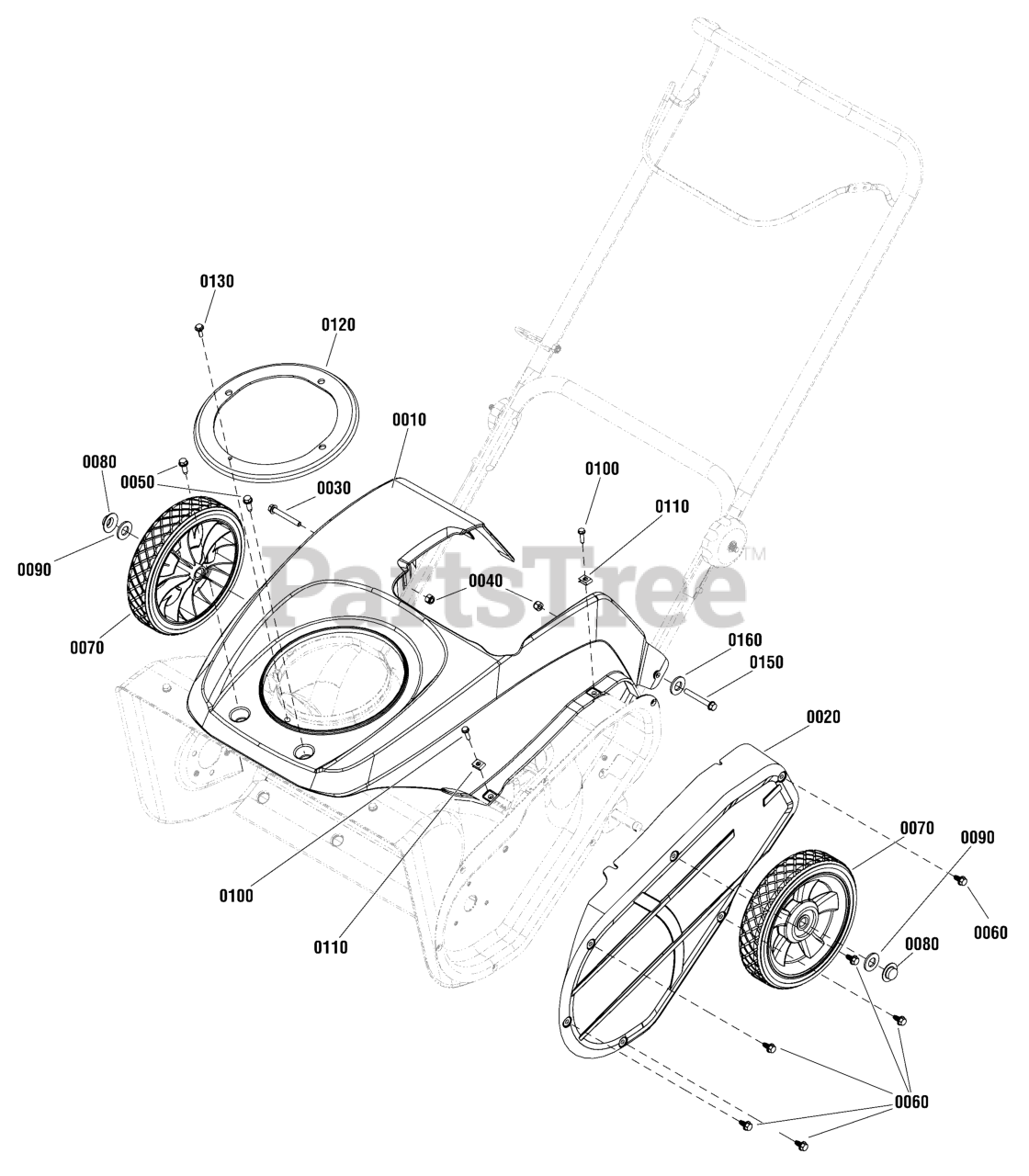

Wheel & Body Covering Group Parts Diagram

  • Title

0010

Murray 1750161YP

COVER, Top, Black

$165.99

$

Usually ships in 2-12 days

0

0020

Murray 1739650YP

COVER, Drive Case

$58.99

$

Usually ships in 2-12 days

0

0030

Murray 1750777YP

CAPSCREW, Hex Washer Head, 1/4 x 20 x 2

$3.99

$

In Stock, only 2 left!

0

0040

Murray 7091603SM

NUT, Nylock, 1/4
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 1750444YP

SCREW, Hi-Low, 1/4-15 x 3/4
(Superseded to 7091081SM)

$4.49

$

In Stock, Qty 12

0

0060

Murray 1750447YP

SCREW, Hex Washer Head, Trilob,1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 4 left!

0

0070

Murray 311236YP

WHEEL, Yellow, 2 x 8, Plastic 1/2
(Superseded to 709522)

$26.99

$

Usually ships in 2-12 days

0

0080

Murray 703179

NUT, Push, 1/2" Cap Type, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0090

Murray 7025074SM

WASHER, Flat, 17/32 x 5/8

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 1750638YP

CAPSCREW, Hex Washer Head, 10-24 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0110

Murray 885118YP

NUT, U-Style Speed, #10

$3.49

$

Usually ships in 2-12 days

0

0120

Murray 1739752YP

COVER, Chute

$5.49

$

In Stock, only 1 left!

0

0130

Murray 316042MA

SCREW, Hex Washer Head, #10-HL x 5/8

$4.49

$

Usually ships in 2-12 days

0

0150

Murray 703588

CAPSCREW, Hex Head, 1/4-20 x 1 3/4, GR5

$3.99

$

In Stock, only 1 left!

0

0160

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0
