1696279-01 - Brute 22" Snow Thrower, 8.0 Gross TP (2014) Chute Rotation Group - Manual Parts Diagram

22" Snow Thrower, 8.0 Gross TP

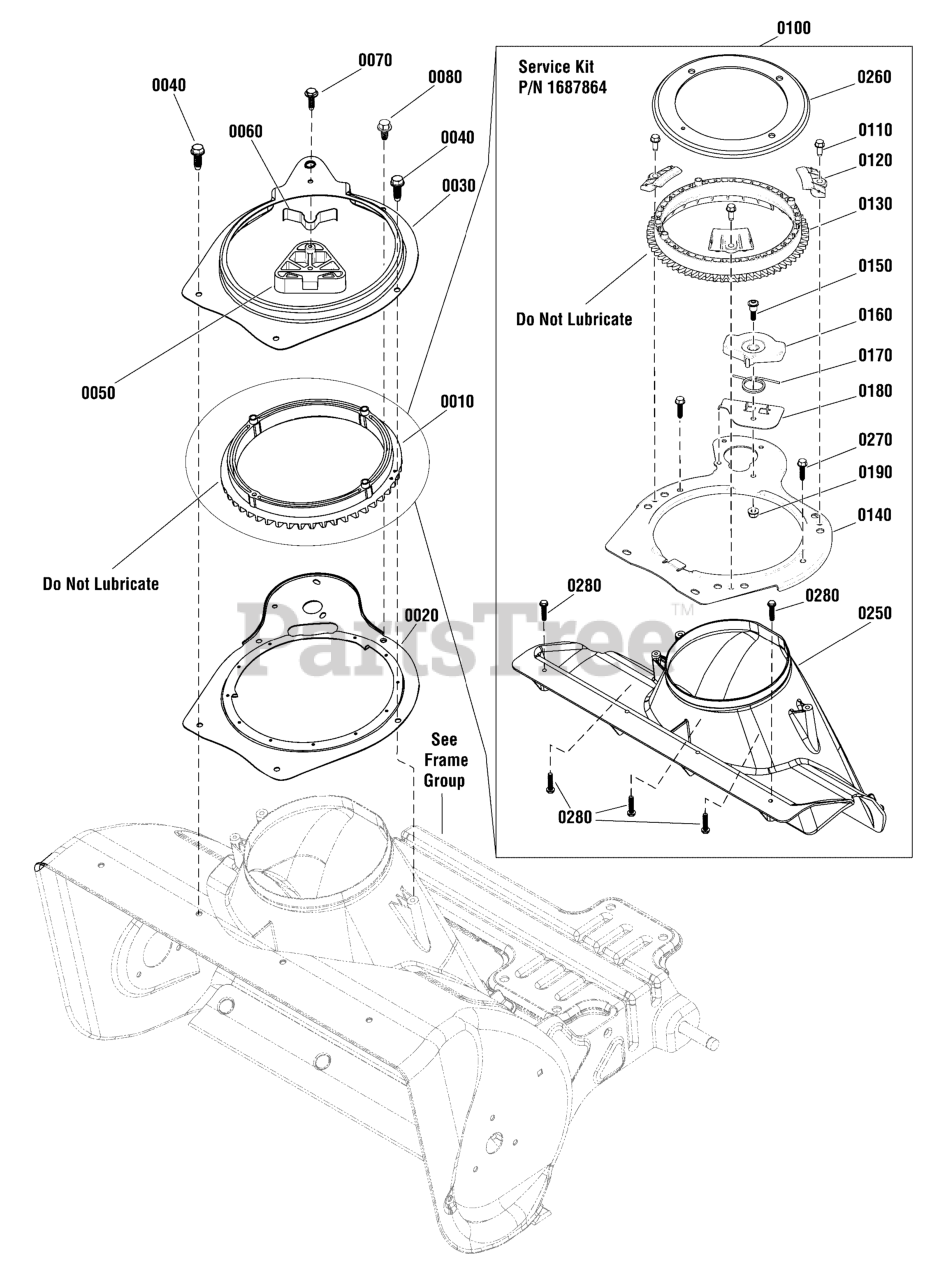

Chute Rotation Group - Manual Parts Diagram

  • Title
0010

Murray 1739123

GEAR, Chute Rotation
(Superseded to 1687864)

$227.99

$

In Stock, only 2 left!

0

0020

Murray 1739364

PLATE, Chute Mounting
(Superseded to 1739364YP)

$26.99

$

Usually ships in 2-12 days

0

0030

Murray 1739365

RETAINER, Chute Gear
(Superseded to 1739365YP)

$31.99

$

In Stock, only 1 left!

0

0040

Murray 1750444

SCREW, Hi-Low, 1/4-15 x 3/4
(Superseded to 7091081SM)

$4.49

$

In Stock, Qty 12

0

0050

Murray 1739294

BLOCK, Stop
(Superseded to 1739294YP)

$

$

Not available

0060

Murray 1739293

SPRING
(Superseded to 1752450YP)

$12.99

$

In Stock, Qty 11

0

0070

Murray 1960001

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 11

0

0080

Murray 1750447

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0100

Murray 1687864

KIT, Chute Rotation

Note: (Contains Items 0110, 0120, 0130, 0140, 0150, 0160, 0170, 0180. 0190, 0250, 0260, 0270 and 0280.)

$227.99

$

In Stock, only 2 left!

0

0110

Murray 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0120

RETAINER, Chute

$

$

Not available

0130

$38.99

$

In Stock, only 1 left!

0

0140

Murray 708695

PLATE, Chute Rotation

$60.99

$

Usually ships in 2-12 days

0

0150

Murray 706514

SCREW, Shoulder, Button Torx Washer Head, 1/4-20 x 1

$7.49

$

In Stock, only 2 left!

0

0160

Murray 708712

LEVER, Chute Rotation

$13.99

$

Usually ships in 2-12 days

0

0170

Murray 708713

SPRING

$4.99

$

Usually ships in 2-12 days

0

0180

Murray 708714

BASE PLATE

$8.99

$

Usually ships in 2-12 days

0

0190

Murray 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0250

Murray 707849

CHIMNEY

Note: Used with Service Kit 1687864

$106.99

$

In Stock, Qty 5

0

0260

Murray 708735

COVER, Chute Rotation Moisture

$8.49

$

In Stock, only 1 left!

0

0270

Murray 706516

SCREW, Hi-Low, 1/4-15 x 1

$3.49

$

In Stock, only 2 left!

0

0280

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

Note: (Chimney Mounting)

$4.49

$

In Stock, Qty 12

0
