1696279-00 - Brute 22" Snow Thrower, 8.0 Gross TP (2012) Frame Group Parts Diagram

22" Snow Thrower, 8.0 Gross TP

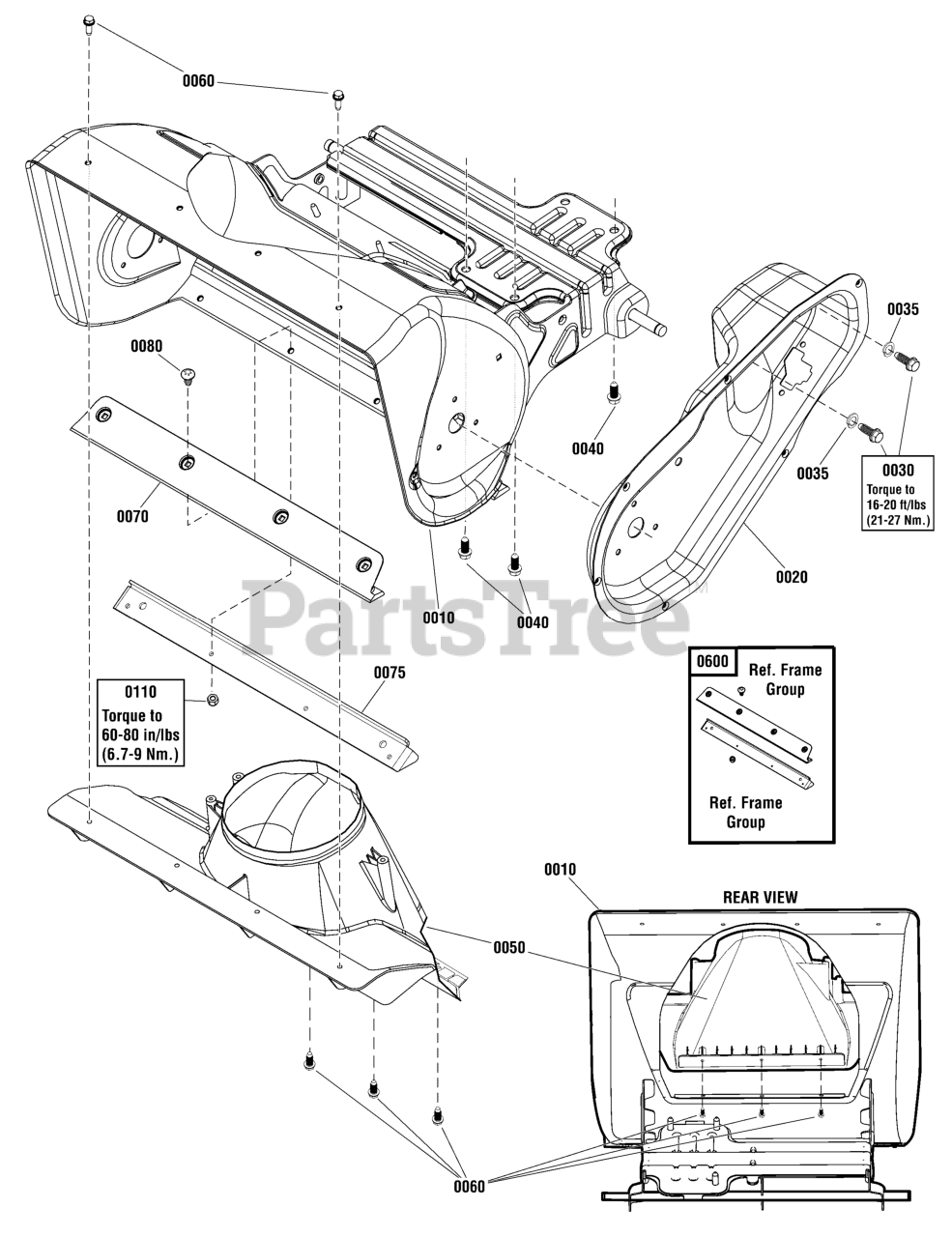

Frame Group Parts Diagram

  • Title

0010

Murray 1756280AYP

FRAME ASSEMBLY

$414.99

$

Usually ships in 2-12 days

0

0020

Murray 1739100BMYP

HOUSING, Drive
(Superseded to 1739100AYP)

$101.99

$

In Stock, only 4 left!

0

0030

Murray 1752876YP

CAPSCREW, Hex Head, 5/16-24 x 5/8

$3.99

$

In Stock, only 2 left!

0

0035

Murray 1917356SM

WASHER, Lock Helical Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0040

Murray 2828635SM

SCREW, Taptite, 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1739555YP

CHIMNEY
(Superseded to 707849)

Note: Used without Service Kit 1687864, Refer to Chute Rotation Group

$106.99

$

In Stock, Qty 5

0

0050

Murray 707849

CHIMNEY

Note: Used with Service Kit 1687864, Refer to Chute Rotation Group

$106.99

$

In Stock, Qty 5

0

0060

Murray 1750444YP

SCREW, Hi-Low, 1/4-15 x 3/4
(Superseded to 7091081SM)

$4.49

$

In Stock, Qty 12

0

0070

SCRAPER BAR

Note: (Included with Ref. No. 0600)

$

$

Not available

0075

Murray 1752660AYP

SUPPORT, Scraper Blade

Note: (Included with Ref. No. 0600)

$28.99

$

In Stock, only 4 left!

0

0080

Murray 5025299X5YP

SCREW, 1/4-20 X 5/8

Note: (Included with Ref. No. 0600)

$4.99

$

In Stock, only 1 left!

0

0110

Murray 1752935YP

NUT, 1/4-20, Nylon Hex, CZ

Note: (Included with Ref. No. 0600)

$3.49

$

In Stock, Qty 9

0

0600

Murray 1687805

KIT, Scraper Bar

Note: (Includes Ref. Nos. 0070, 0075, 0080, 0110, Auger Flights & Hardware)

$97.99

$

In Stock, only 1 left!

0
