1696230-00 (CH 842100 SE) - Canadiana 33" Snow Thrower, Canada (2012) Gear Case Assembly (1753711) Parts Diagram

33" Snow Thrower, Canada

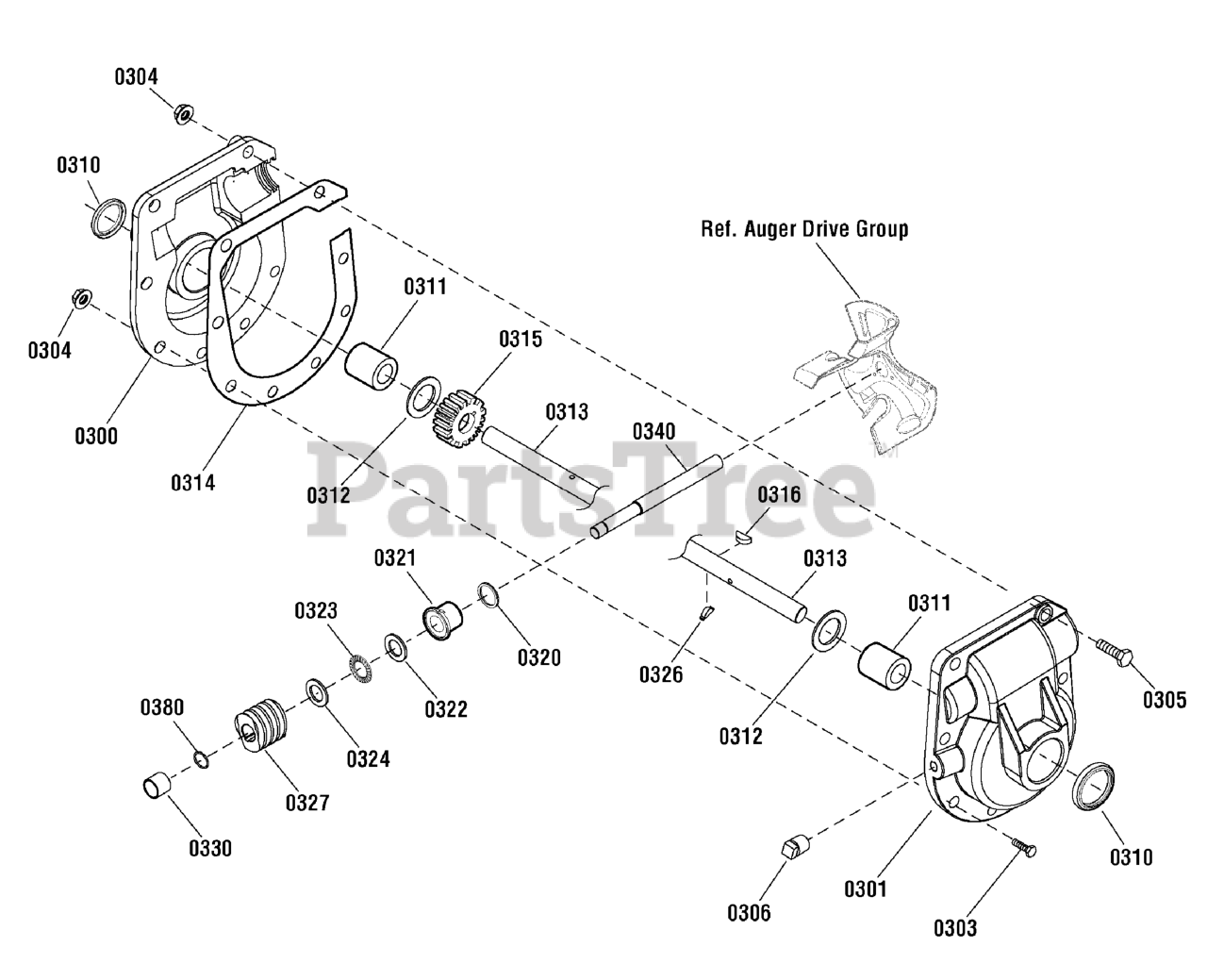

Gear Case Assembly (1753711) Parts Diagram

  • Title
0300

Murray 896MA

CASE, Gear, RH

$32.99

$

In Stock, only 4 left!

0

0301

Murray 895MA

CASE, Gear, LH

$

$

Not available

0303

Murray 910828MA

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

0304

Murray 71100MA

NUT, Hex Flange, Serrated Lock, 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

0305

Murray 330434MA

CAPSCREW, Hex Head, 5/16-24 x 1-1/2
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

0306

Murray 53749MA

PLUG, Pipe
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

0310

Murray 780151MA

SEAL, Oil

$10.99

$

In Stock, Qty 6

0

0311

Murray 53743MA

BEARING, Sleeve, 1 x 1-1/4 x 1

$9.99

$

Usually ships in 2-12 days

0

0312

Murray 53748MA

WASHER, Flat, 1

$9.99

$

In Stock, only 2 left!

0

0313

Murray 760411MA

SHAFT, Auger Out, 33"

$93.99

$

Usually ships in 2-12 days

0

0314

Murray 897MA

GASKET

$

$

Not available

0315

Murray 1752500YP

GEAR, Worm

$79.99

$

In Stock, Qty 5

0

0316

Murray 73905MA

KEY, Woodruff
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

0320

Murray 53737MA

RING, Quad

$4.99

$

In Stock, Qty 8

0

0321

Murray 583126MA

BEARING, Flange, 3/4 ID x 1-1/4 OD

$13.99

$

In Stock, Qty 6

0

0322

Murray 48275MA

WASHER, Thrust

$6.49

$

In Stock, Qty 6

0

0323

Murray 50684MA

BEARING, Roll Thrust, 3/4 ID x 1-1/4 OD

$6.49

$

In Stock, only 1 left!

0

0324

Murray 48275MA

WASHER, Thrust

$6.49

$

In Stock, Qty 6

0

0326

Murray 50795MA

KEY, Hi-Pro

$5.99

$

In Stock, only 1 left!

0

0327

Murray 53732MA

WORMGEAR, 1-1/2"

$49.99

$

In Stock, only 1 left!

0

0330

Murray 53731MA

BEARING, Sleeve, 3/4 ID x 7/8 OD

$5.49

$

In Stock, Qty 11

0

0340

Murray 1751536YP

SHAFT, Impeller

$50.99

$

Usually ships in 2-12 days

0

0380

Murray 1752515YP

RING, Retaining, 3/4

$10.99

$

Usually ships in 2-12 days

0
