1696225-01 (CS 55800 E) - Canadiana 22" Snow Thrower, Canada (2013-2015) Auger Group Parts Diagram

22" Snow Thrower, Canada

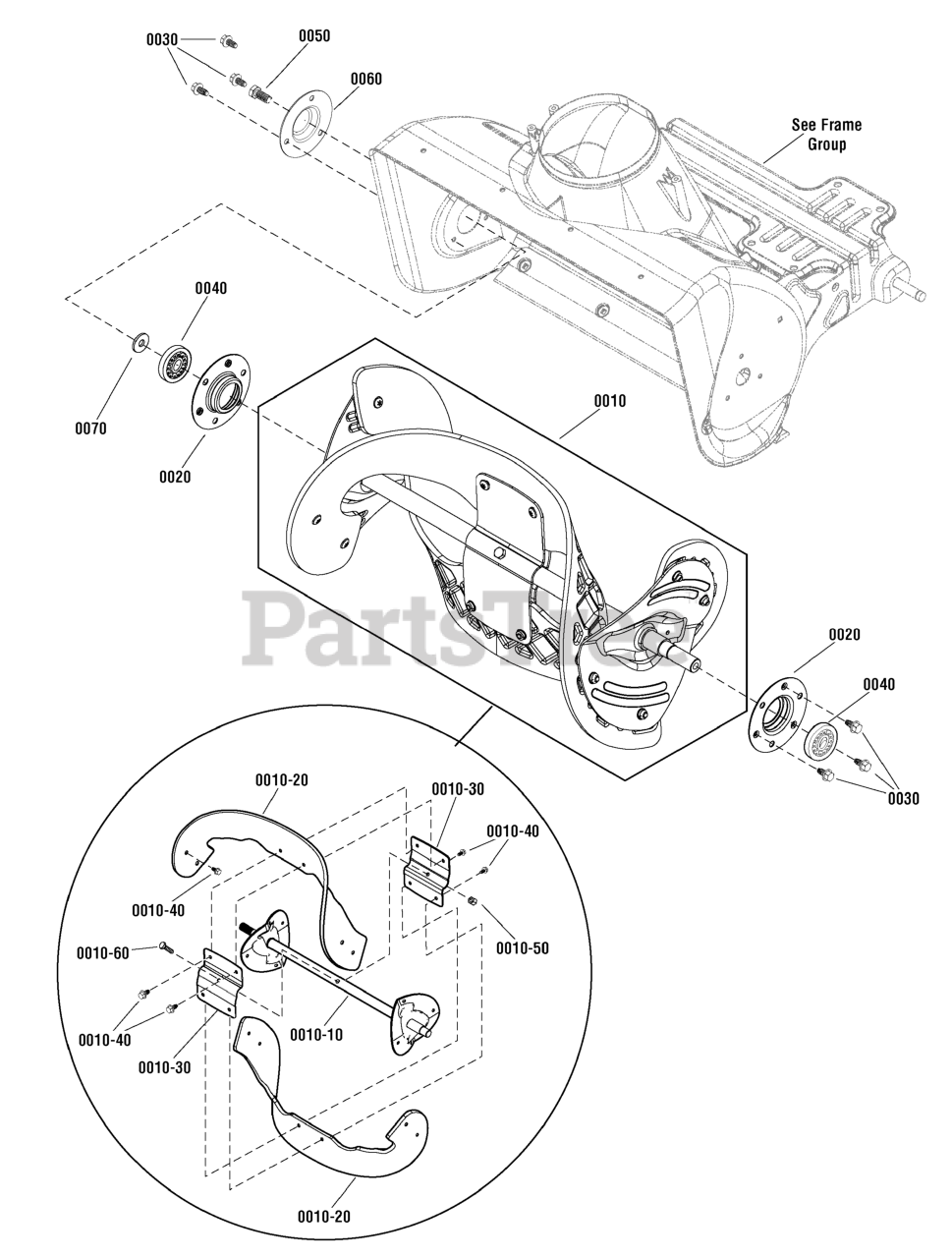

Auger Group Parts Diagram

  • Title

0010

Murray 1751388

AUGER ASSEMBLY, Complete
(Superseded to 1751388YP)

Note: (Incl. Ref. Nos. 0010-10, 0010-20, 0010-30, 0010-40, 0010-50 & 0010-60)

$

$

Not available

0010-10

Murray 1739724A

* AUGER SHAFT ASSEMBLY
(Superseded to 1739724AYP)

$158.99

$

Usually ships in 2-12 days

0

0010-20

Murray 1739727

FLIGHT, Auger
(Superseded to 1687806)

$121.99

$

In Stock, Qty 20+

0

0010-30

Murray 1739729A

* PLATE, Auger, Center
(Superseded to 1739729AYP)

$

$

Not available

0010-40

Murray 7091246YP

SCREW, 1/4-20 x 3/4, Pan Head Torx
(Superseded to 770003)

$3.99

$

In Stock, Qty 20+

0

0010-50

Murray 7091603

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0010-60

Murray 51374

CAPSCREW, Hex Head, 1/4-20 X 1 1/2, G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0020

Murray 1739228

RETAINER, Bearing
(Superseded to 1739228YP)

$6.99

$

Usually ships in 2-12 days

0

0030

Murray 1750447

SCREW, Hex Washer Head, Trilob, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0040

Murray 1705897

BEARING, Ball, 11/16 x 1-9/16 x 15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

0050

Murray 22142

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

0060

Murray 1739229A

CAP, BEARING
(Superseded to 1739229AYP)

$7.99

$

Usually ships in 2-12 days

0

0070

Murray 7900022

WASHER, Flat, 7/8 x 21/64
(Superseded to 7900022YP)

$3.49

$

In Stock, Qty 11

0

--

Murray 1687489

KIT, Auger Flight
(Superseded to 1687806)

Note: (Incl. Ref. Nos. 0010-20 & 0010-40)

$121.99

$

In Stock, Qty 20+

0
