1696198 - Simplicity 42" Mower Deck 42" (107cm) Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

42" Mower Deck

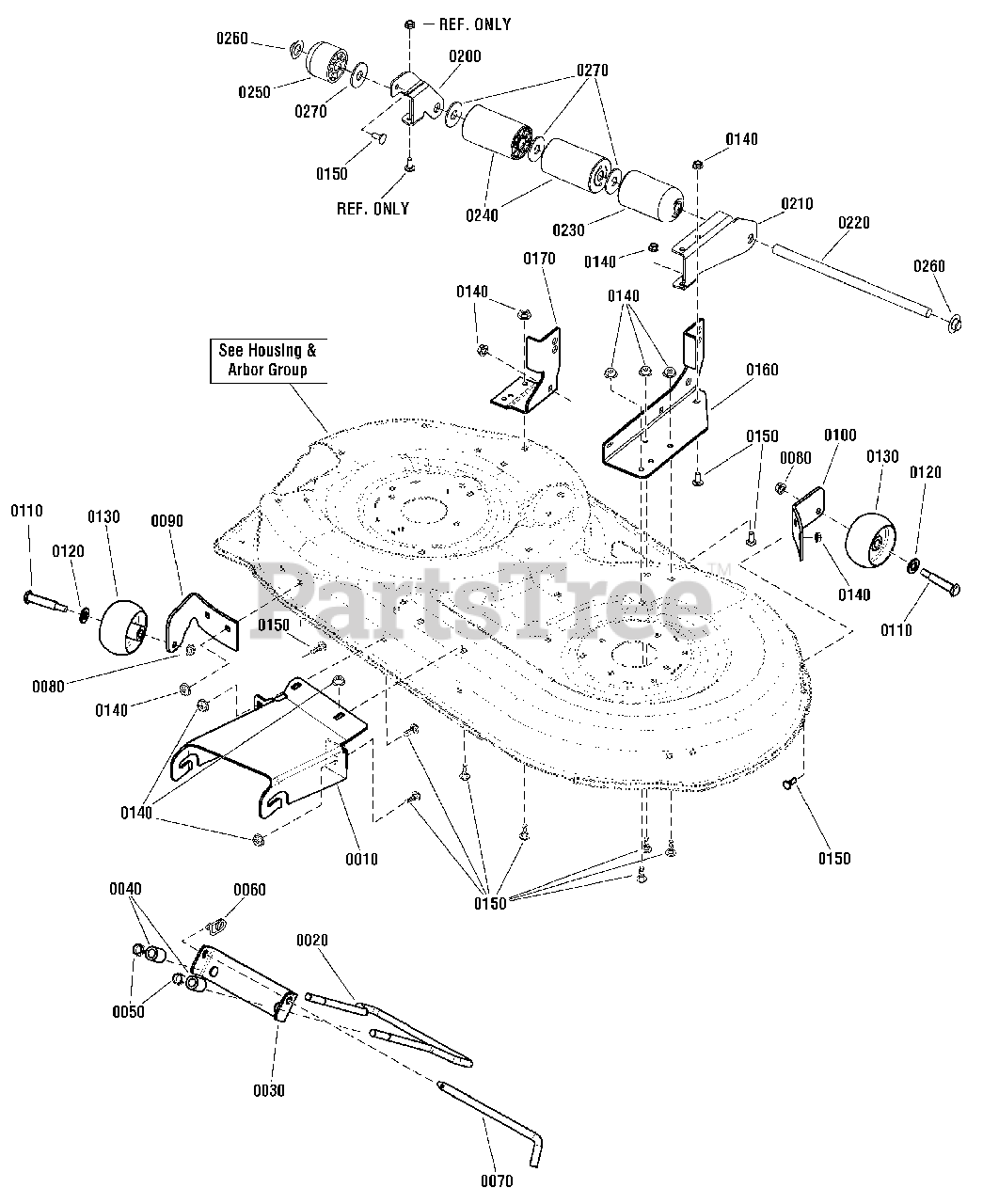

42" (107cm) Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

0010

Simplicity 1731966BMYP

HITCH, Front

$49.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1730097SM

ROD, 1/2 Dia.

$43.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1730221ASM

HANGER, Front

$12.99

$

In Stock, only 2 left!

0

0040

Simplicity 1679166SM

SPACER, 7/8 OD x 1-3/16

$7.49

$

In Stock, only 2 left!

0

0050

Simplicity 1960379SM

NUT, Hex Lock, ESNA, 1/2-13

$4.99

$

In Stock, Qty 18

0

0060

Simplicity 703852

RETAINER, Pin Spring, 5/16-3/8

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 1731414SM

ROD, Latch, 1/2 Dia. x 9

$14.99

$

Usually ships in 2-12 days

0

0140

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0150

Simplicity 703185

BOLT, Carriage, 5/16-18 x 3/4, G5

$3.49

$

In Stock, Qty 12

0

0160

Simplicity 1753662BMYP

SUPPORT, Mower, LH

$40.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1753663BMYP

SUPPORT, Mower, RH

$15.99

$

In Stock, only 1 left!

0

0200

Simplicity 1753530BMYP

BRACKET, Roller, RH

$20.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1753531BMYP

BRACKET, Roller, LH

$31.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1753532YP

BAR, Roller

$14.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1722036SM

ROLLER, 0.650 ID 2-1/2 OD

$7.99

$

In Stock, Qty 20+

0

0240

Simplicity 1668513SM

ROLLER, 0.652 ID 2.50 OD 4-7/64 Lg

$10.99

$

In Stock, Qty 20+

0

0250

Simplicity 1717675SM

ROLLER, Rounded

$6.99

$

In Stock, Qty 20+

0

0260

Simplicity 1960520SM

PUSHNUT, Capped, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0270

Simplicity 1960035SM

WASHER, 5/8 x 1-3/4 OD

$4.49

$

In Stock, only 2 left!

0
