1696142-00 - Simplicity 42" Mower Deck 42" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

42" Mower Deck

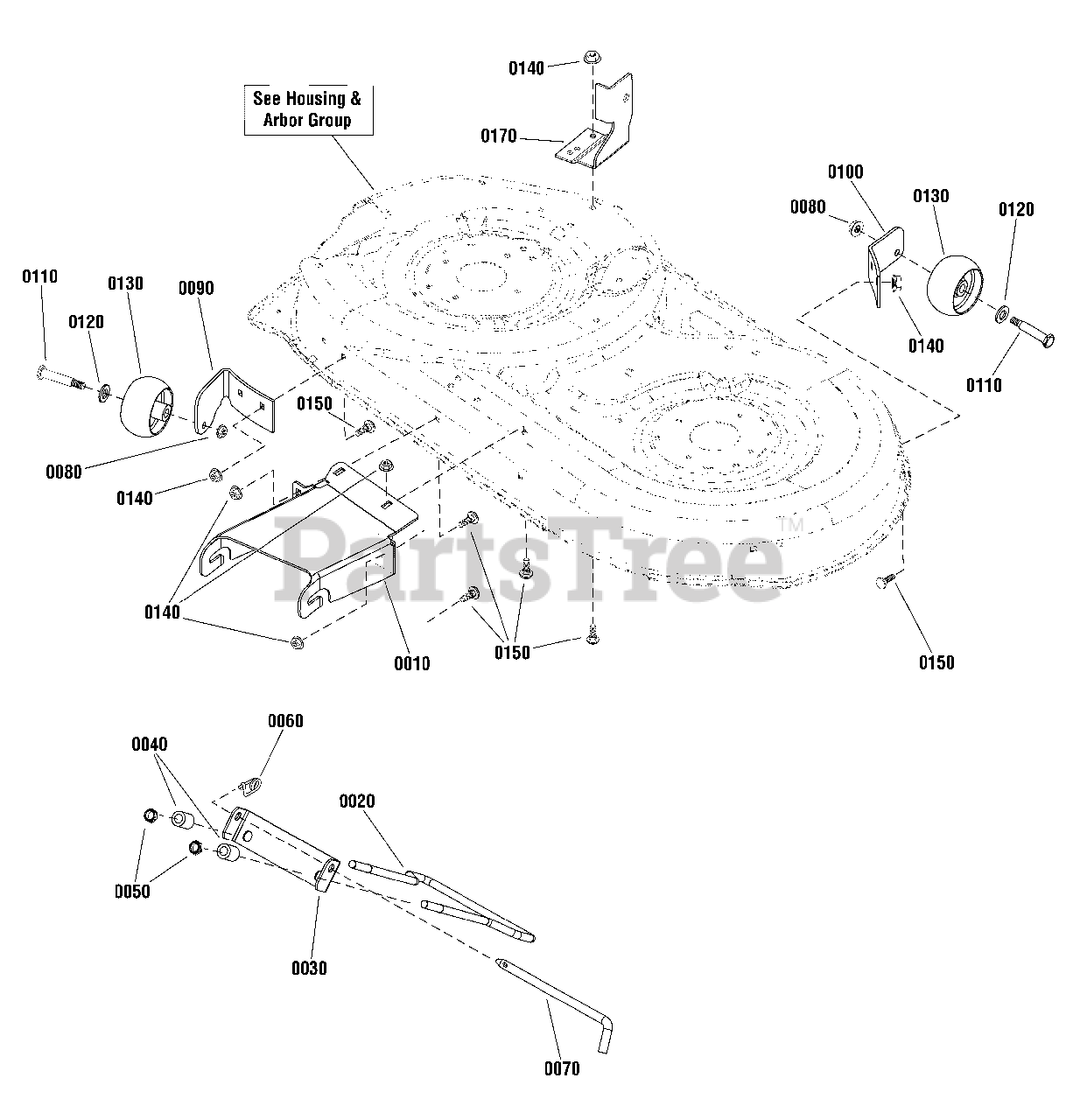

42" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

0010

Simplicity 1731966BMYP

HITCH, Front

$49.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1730097SM

ROD, Bail

$43.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1730221ASM

HANGER, Front

$12.99

$

In Stock, only 2 left!

0

0040

Simplicity 1679166SM

SPACER, 1/2 ID x 7/8 OD x 1.185"

$7.49

$

In Stock, only 2 left!

0

0050

Simplicity 1960379SM

NUT, Hex Lock, ESNA Light, 1/2-13

$4.99

$

In Stock, Qty 18

0

0060

Simplicity 703852

RETAINER, Pin Spring

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 1731414SM

ROD, Latch

$14.99

$

Usually ships in 2-12 days

0

0080

Simplicity 703158

NUT, Hex Flange, ESNA, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0090

Simplicity 1731402ASM

SUPPORT, Gauge Wheel, RH

$14.99

$

In Stock, only 1 left!

0

0100

Simplicity 1731403ASM

SUPPORT, Gauge Wheel, LH

$14.99

$

In Stock, only 1 left!

0

0110

Simplicity 2108765SM

BOLT, Wheel, 3/8-16 x 2-3/4

$6.49

$

In Stock, Qty 20+

0

0120

Simplicity 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0130

Simplicity 1714760SM

WHEEL

$6.49

$

In Stock, Qty 20+

0

0140

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0150

Simplicity 703185

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5

$3.49

$

In Stock, Qty 12

0

0170

Simplicity 1757825BMYP

SUPPORT, Mower, RH

$37.99

$

Usually ships in 2-12 days

0
