1696140-00 - Murray 52" Mower Deck (2015) 52" Mower Deck - Height Adjust Group Parts Diagram

52" Mower Deck

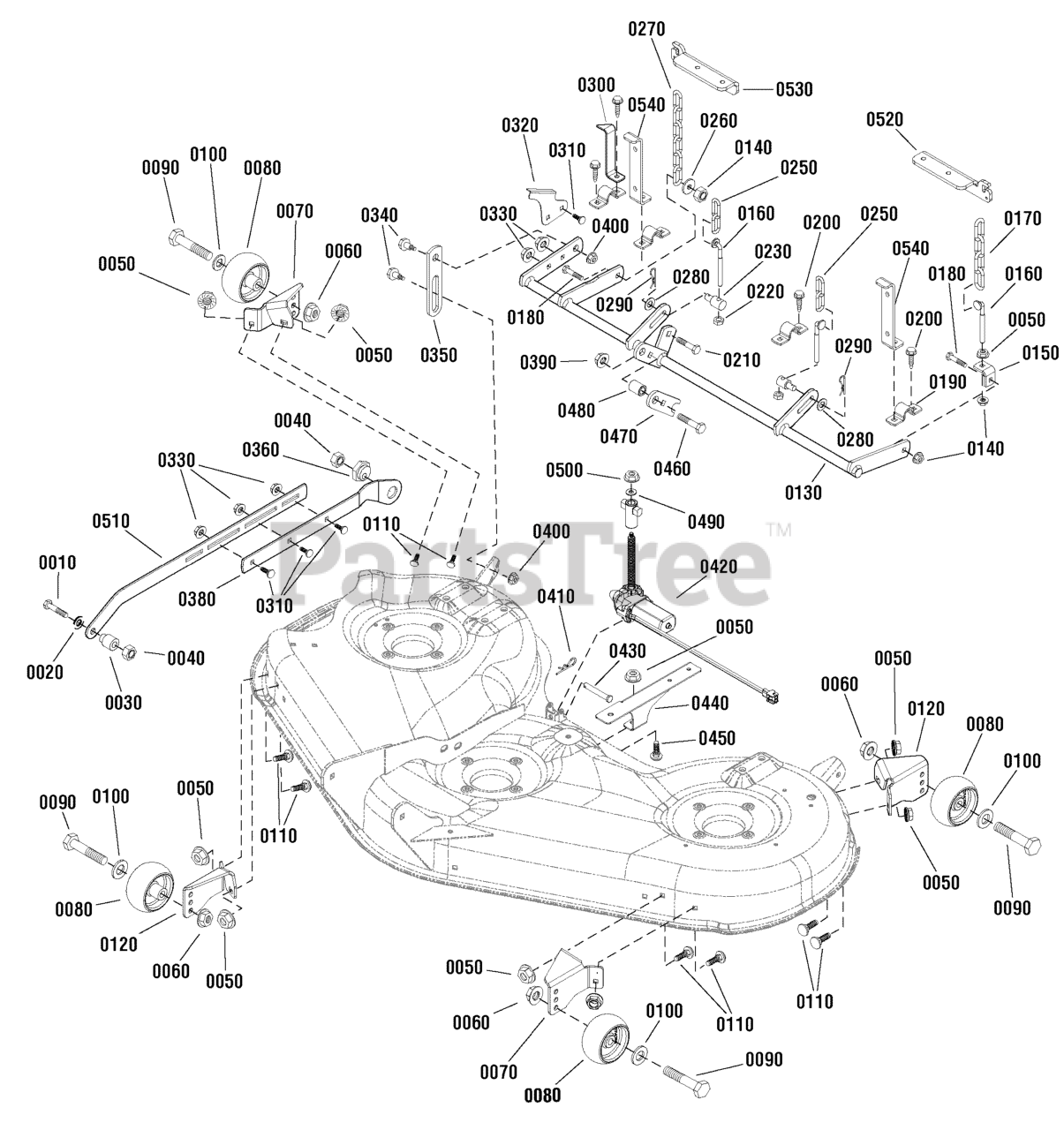

52" Mower Deck - Height Adjust Group Parts Diagram

  • Title

0010

Murray 7091553YP

CAPSCREW, 3/8 x 1-3/4 G5

$

$

Not available

0020

Murray 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

0030

Murray 1706644SM

SPACER, 3/8 x 3/4 x 15/16

$8.49

$

In Stock, only 3 left!

0

0040

Murray 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

0050

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0060

Murray 1960687SM

NUT, Hex Flange, 3/8-16, ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0070

Murray 1736074AYP

BRACKET, Gauge Wheel, R.H.
(Superseded to 1736074BMYP)

$15.99

$

Usually ships in 2-12 days

0

0080

Murray 1714760SM

WHEEL, 2" Wide, 3-7/8 Dia.

$6.49

$

In Stock, Qty 20+

0

0090

Murray 2108765SM

BOLT, Wheel, 3/8-16 x 2-25/32 x 3/4 TH

$6.49

$

In Stock, Qty 20+

0

0100

Murray 1960170SM

WASHER, 1/2 x 1 OD
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0110

Murray 1931334SM

BOLT, Carriage, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

0120

Murray 1736075AYP

BRACKET, Gauge Wheel, L.H.
(Superseded to 1736075BMYP)

$14.99

$

In Stock, Qty 14

0

0130

Murray 1751797AYP

SHAFT, Rocker 52" Frame Hung

$110.99

$

Usually ships in 2-12 days

0

0140

Murray 1960686SM

NUT, Hex Flange, 5/16-18, ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0150

Murray 1751826AYP

BRACKET, Frame Mount

$26.99

$

In Stock, only 1 left!

0

0160

Murray 7028728SM

ADJUSTER, Chain
(Superseded to 703827)

$10.99

$

In Stock, Qty 12

0

0170

Murray 1708088ASM

CHAIN, 4 Links, 1/4 Dia. x 6-5/64 Long

$11.99

$

Usually ships in 2-12 days

0

0180

Murray 7091928SM

BOLT, Carriage, 5/16 x 1-1/4, G5
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0190

Murray 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

0200

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0210

Murray 1960268SM

BOLT, Carriage, 3/8-16 x 1-1/4, G5

$4.49

$

In Stock, Qty 10

0

0220

Murray 7091493YP

NUT, Hex Jam, 5/16
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

0230

Murray 1731382SM

TRUNNION, 1-11/32 LG

$34.99

$

In Stock, only 2 left!

0

0250

Murray 1731383ASM

CHAIN, 2 Link, 2-13/16 LG

$6.49

$

In Stock, only 2 left!

0

0260

Murray 1919381SM

WASHER, 5/16 x 1 OD
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

0270

Murray 1708266ASM

CHAIN, 6 Link, 8-13/32 LG

$9.99

$

Usually ships in 2-12 days

0

0280

Murray 1960103SM

WASHER, 3/8"

$4.49

$

In Stock, Qty 7

0

0290

Murray 1960074SM

CLIP, Hair Pin 1-5/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0300

Murray 1751880AYP

BRACKET, HOC

$16.99

$

In Stock, only 1 left!

0

0310

Murray 7090001YP

BOLT, Carriage, 5/16 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0320

Murray 1751846AYP

BRACKET, HOC

$11.99

$

Usually ships in 2-12 days

0

0330

Murray 015X79MA

NUT, Hex Flange, SER, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0340

Murray 1737409YP

BOLT, Shoulder, 1/4

$12.99

$

In Stock, only 2 left!

0

0350

Murray 1751799AYP

BAR, Upright

$15.99

$

Usually ships in 2-12 days

0

0360

Murray 1727381SM

NUT, Hex Adjusting, .990 Dia. 17/32 TH

$13.99

$

Usually ships in 2-12 days

0

0380

Murray 1739691AYP

ARM, Pitch Adjustment, Front

$35.99

$

In Stock, only 1 left!

0

0390

Murray 7091619SM

NUT, Hex Flange Locking, 3/8
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0400

Murray 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

0410

Murray 1960221SM

CLIP, Hairpin, 1-5/16 LG
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

0420

Murray 1738294YP

MOTOR, Linear Actuator, Deck Lift
(Superseded to 1761788YP)

$107.99

$

In Stock, Qty 15

0

0430

Murray 1668344SM

PIN, Shear, 1-3/4 LG
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0440

Murray 1737011AYP

SUPPORT, Rocker Shaft, 52"

$20.99

$

Usually ships in 2-12 days

0

0450

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0460

Murray 7091810SM

BOLT, Carriage, 3/8 x1-3/4 G5
(Superseded to 703879)

$3.99

$

In Stock, Qty 5

0

0470

Murray 1751801AYP

ARM, Mount, EHOC, 3/4

$17.99

$

Usually ships in 2-12 days

0

0480

Murray 7014334YP

SPACER, 5/8 OD x 13/16 L

$7.99

$

Usually ships in 2-12 days

0

0490

Murray 1921319SM

WASHER, 1/4 x 5/8 OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0500

Murray 1960757SM

NUT, Hex, LH Thread, 1/4-20

$5.49

$

Usually ships in 2-12 days

0

0510

Murray 1739554AYP

ARM, Pitch Adjustment

$46.99

$

Usually ships in 2-12 days

0

0520

Murray 1727103ASM

HANGER, L.H.

$24.99

$

Usually ships in 2-12 days

0

0530

Murray 1727102ASM

HANGER, R.H.

$30.99

$

Usually ships in 2-12 days

0

0540

Murray 1737219AYP

UPSTOP, Rear

$27.99

$

Usually ships in 2-12 days

0
