1696133 - Snapper Clean Sweep Triple Grass Catcher for 46" & 52" Mower Triple Catcher Assembly Parts Diagram

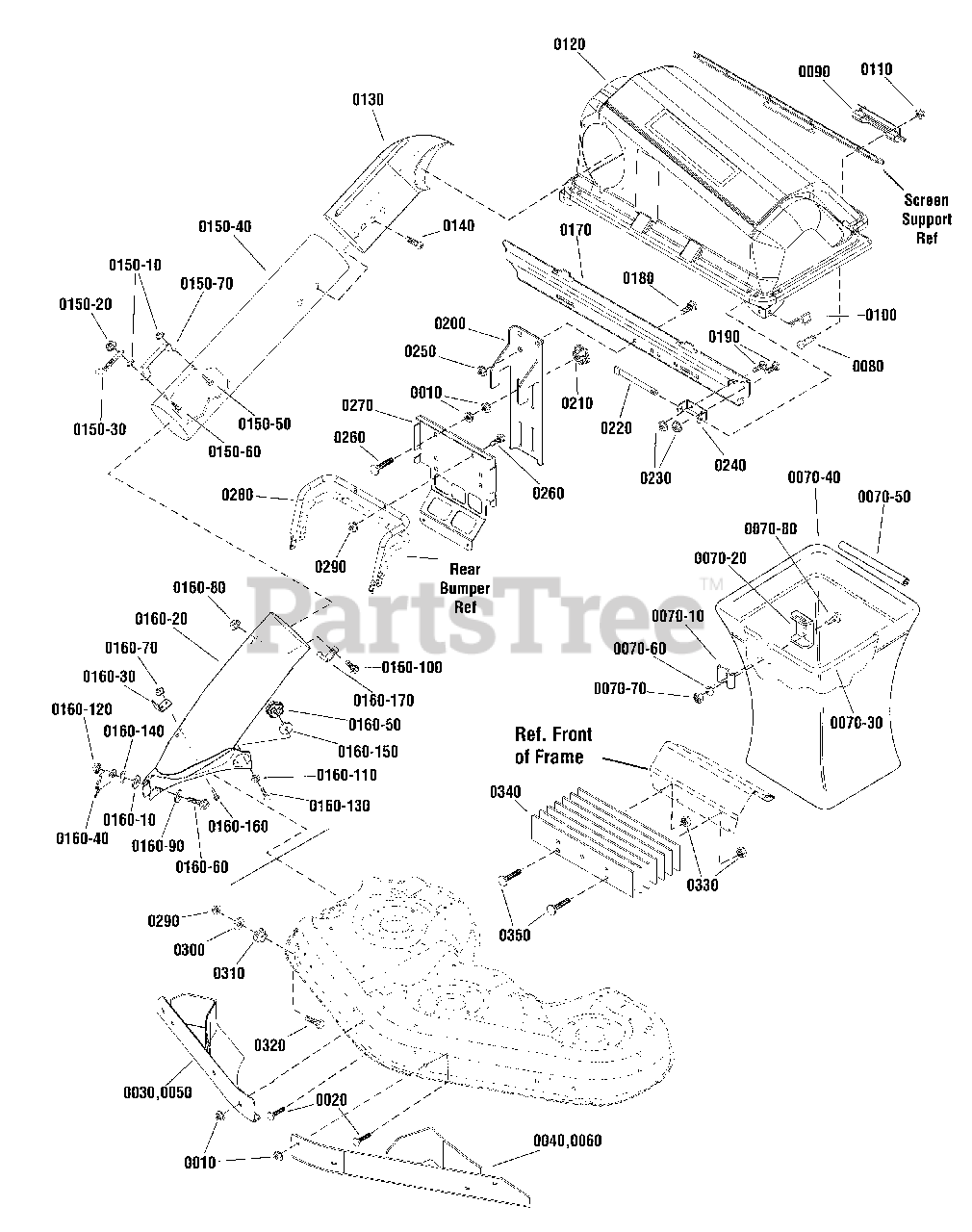

Clean Sweep Triple Grass Catcher for 46" & 52" Mower

Triple Catcher Assembly Parts Diagram

  • Title

0010

Snapper 1927557

NUT, Whiz-Lock, Hex Flange, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

0020

Snapper 1931332

BOLT, Round Head, Short Neck, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 1737319BM

BAFFLE ASSEMBLY, 52" MULCHING, RH
(Superseded to 1737319BZYP)

$100.99

$

Usually ships in 2-12 days

0

0040

Snapper 1737318BM

BAFFLE ASSEMBLY, 52" MULCHING, LH
(Superseded to 1737318BZYP)

$101.99

$

Usually ships in 2-12 days

0

0050

Snapper 1737317BM

BAFFLE ASSEMBLY, 46" MULCHING, RH
(Superseded to 1737317BZYP)

$79.99

$

Usually ships in 2-12 days

0

0060

Snapper 1737316BM

BAFFLE ASSEMBLY, 46" MULCHING, LH
(Superseded to 1737316BZYP)

$140.99

$

Usually ships in 2-12 days

0

0070-10

Snapper 1672023

CLAMP, Grass Bag
(Superseded to 1672023A)

$11.99

$

Usually ships in 2-12 days

0

0070-20

Snapper 1703807

HANGER, Grass Bag
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 2 left!

0

0070-30

Snapper 1733517

HOOP, Triple
(Superseded to 1733517SM)

$76.99

$

Usually ships in 2-12 days

0

0070-40

Snapper 1733695

BAG, Triple Regular
(Superseded to 1733695SM)

$140.99

$

In Stock, only 2 left!

0

0070-50

Snapper 1733709

EDGING, Tube Grass Bag
(Superseded to 1733709SM)

$16.99

$

In Stock, only 2 left!

0

0070-60

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0070-70

Snapper 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0070-80

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0080

Snapper 1960404

SCREW, Truss Head Phillips, 10-24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0090

Snapper 720537

HANDLE, Plastic
(Superseded to 054537MA)

$18.99

$

Usually ships in 2-12 days

0

0100

Snapper 1918196

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 1933896

NUT, Hex Lock, 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0120

Snapper 1736101

ASSEMBLY, Cover & Screen, Triple Catcher
(Superseded to 1736101YP)

$695.99

$

Usually ships in 2-12 days

0

0130

Snapper 1733885

ELBOW, Upper Tube Poly
(Superseded to 1733885SM)

$103.99

$

Usually ships in 2-12 days

0

0140

Snapper 722855

SCREW, 1/4 X 3/4
(Superseded to 26X239MA)

$4.49

$

In Stock, only 2 left!

0

0150-10

Snapper 1928372

NUT, Hex Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

0150-20

Snapper 1930642

NUT, Top-Lock, Hex Flange, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

0150-30

Snapper 2171600

STRAP, Hood
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

0150-40

Snapper 7104383

TUBE, Clear Poly, 34
(Superseded to 7104383YP)

$158.99

$

Usually ships in 2-12 days

0

0150-50

Snapper 720074

SCREW, 1/4-20 x 1/2
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

0150-60

Snapper 720076

SCREW, 1/4-20 x 1
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

0150-70

Snapper 720533

HANDLE, Connect Tube
(Superseded to 720533FS)

$17.99

$

Usually ships in 2-12 days

0

0160-10

Snapper 1708511

SPACER, 1" O.D.
(Superseded to 1708511SM)

$7.49

$

In Stock, only 2 left!

0

0160-20

Snapper 1734776

BOOT, Bagging
(Superseded to 1734776YP)

$268.99

$

In Stock, only 2 left!

0

0160-30

Snapper 1737764

UPSTOP, Deflector
(Superseded to 1737764AYP)

$33.99

$

Usually ships in 2-12 days

0

0160-40

Snapper 1737765

Latch, Boot
(Superseded to 1737765AYP)

$32.99

$

In Stock, only 1 left!

0

0160-50

Snapper 1738295

KNOB, 25-20 Esna
(Superseded to 1738295YP)

$7.49

$

In Stock, only 1 left!

0

0160-60

Snapper 1921333

CAPSCREW, Hex-Head, 5/16-18 x 3/4
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0160-70

Snapper 1928372

NUT, Hex Keps, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

0160-80

Snapper 1930642

NUT, Top-Lock, Hex Flange, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

0160-90

Snapper 1960044

WASHER, 5/16 x 3/4
(Superseded to 1960044SM)

$4.49

$

In Stock, only 3 left!

0

0160-110

Snapper 1960685

NUT, Hex Keps, Conical, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 13

0

0160-120

Snapper 1960686

NUT, Hex Flange 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0160-130

Snapper 1960698

BOLT, Round Head, Short Neck, 1/4-20 x 1
(Superseded to 1960698SM)

$3.99

$

In Stock, Qty 9

0

0160-140

Snapper 7026257

Washer, Wave
(Superseded to 7026257MA)

$4.49

$

In Stock, Qty 11

0

0160-100

Snapper 1960252

BOLT, Round Head, Short Neck 1/4-20 x 5/8
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0160-150

Snapper 7091627

WASHER, Flat
(Superseded to 7091627YP)

$4.99

$

In Stock, Qty 11

0

0160-160

Snapper 720074

SCREW, 1/4-20 x 1/2
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

0160-170

Snapper 720543

PIN, Latch
(Superseded to 054563MA)

$23.99

$

In Stock, only 2 left!

0

0170

Snapper 1736080BM

CROSS SUPPORT

$

$

Not available

0180

Snapper 1931350

BOLT, Carriage, 3/8-16 X 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0190

Snapper 1960252

BOLT, Carriage, 1/4-20 x 5/8
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0200

Snapper 7301143BM

BRACKET, Rear Bumper
(Superseded to 7301143BMYP)

$168.99

$

Usually ships in 2-12 days

0

0210

Snapper 7102990

KNOB, Handle, 5 Prong
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0220

Snapper 720525

PIN, Cover Hinge
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

0230

Snapper 1960294

NUT, Whiz-Lock, Hex-Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0240

Snapper 1736886BM

PIVOT, Hinge

$

$

Not available

0250

Snapper 1928352

NUT, Whiz-Lock, Hex Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

0260

Snapper 1931338

BOLT, Round Head, Short Neck, 5/16-18 x 1 3/4
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0270

Snapper 1753572BM

PLATE, Brand
(Superseded to 1753572BMYP)

$92.99

$

Usually ships in 2-12 days

0

0280

Snapper 7301123BM

TUBE, Bumper, Upper
(Superseded to 7301123BMYP)

$142.99

$

Usually ships in 2-12 days

0

0290

Snapper 1960686

NUT, Hex Flange, 5/16-18 Esna
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0300

Snapper 7092063

WASHER, Flat
(Superseded to 703939)

$7.99

$

Usually ships in 2-12 days

0

0310

Snapper 1723244

SPACER, Hydraulic Lift, Pivot
(Superseded to 1723244SM)

$7.99

$

Usually ships in 2-12 days

0

0320

Snapper 1960223

BOLT, Round Head, Short Neck, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0330

Snapper 720145

NUT, Hex Flange .31
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0340

Snapper 7301153BM

BALLAST, Weight
(Superseded to 7301153BMYP)

$51.99

$

Usually ships in 2-12 days

0

0350

Snapper 1931342

BOLT, Round Head, Short Neck, 5/16-18 x 2 3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0
