1696104-00 - Simplicity Walk-Behind Mower Engine Deck Group - S/N 012003001 & Up Parts Diagram

Walk-Behind Mower

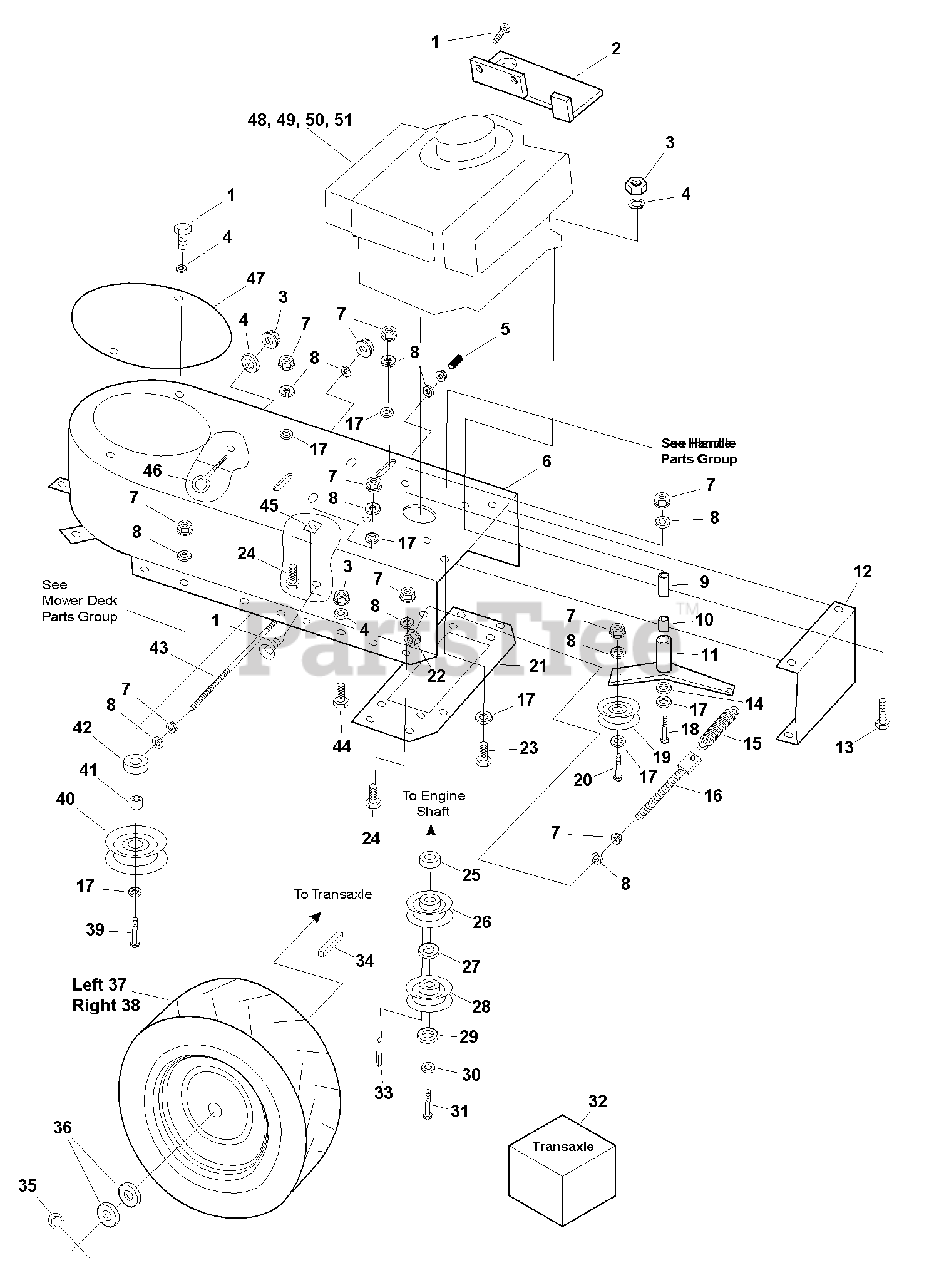

Engine Deck Group - S/N 012003001 & Up Parts Diagram

  • Title

1

Simplicity 1960541SM

Capscrew, TapTite Hex Head, 5/16-18 x 3/4

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 1723616SM

Auxiliary fuel tank base

$59.99

$

Usually ships in 2-12 days

0

3

Simplicity 1917372SM

Nut, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917356SM

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1704723SM

Cap, Black

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 1723803SM

Engine Deck (S/N 071601076 & Up)

$

$

Not available

6

Simplicity 1723593SM

Engine Deck (S/N 071601075 & Below)

$

$

Not available

7

Simplicity 1916950SM

Nut, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1916965SM

Lockwasher, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 1723806SM

Idler Arm Pivot Boss

$70.99

$

Usually ships in 2-12 days

0

10

Simplicity 1723805SM

Sleeve Bushing, 3/4 ID

$12.99

$

In Stock, only 2 left!

0

11

Simplicity 1723804SM

Transmission Idler Arm

$

$

Not available

12

Simplicity 1723592SM

Engine deck back cover

$38.99

$

Usually ships in 2-12 days

0

13

Simplicity 1921221SM

Capscrew, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

14

Simplicity 1960170SM

Flatwasher, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 1723807SM

Idler Spring

$10.99

$

Usually ships in 2-12 days

0

16

Simplicity 1723808SM

Idler Tension Rod

$19.99

$

Usually ships in 2-12 days

0

17

Simplicity 1924940SM

Flatwasher, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1922918SM

Capscrew, 3/8-16 x 3-1/4
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

19

Simplicity 1723583SM

Idler Pulley

$23.99

$

Usually ships in 2-12 days

0

20

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 12

0

21

Simplicity 1723591SM

Lower handle mounting plate

$142.99

$

Usually ships in 2-12 days

0

22

Simplicity 1922694SM

Nut, Hex 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Simplicity 1920415SM

Capscrew, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 1921210SM

Capscrew, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

25

Simplicity 1725228SM

Engine Shaft Spacer, 7/8"

$23.99

$

Usually ships in 2-12 days

0

26

Simplicity 1723586SM

Blade Clutch Drive Pulley

$37.99

$

Usually ships in 2-12 days

0

27

Simplicity 2860530SM

Spacer, 1/8"

$7.49

$

Usually ships in 2-12 days

0

28

Simplicity 1723588SM

Transmission Drive Pulley

$39.99

$

Usually ships in 2-12 days

0

29

Simplicity 1723640SM

Flatwasher Heavy Duty, 7/16
(Superseded to 7091807SM)

$2.99

$

Usually ships in 2-12 days

0

30

Simplicity 1918199SM

Lockwasher, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1723589SM

Capscrew, Socket Head, 7/16-20 x 1-1/2

$

$

Not available

32

Simplicity 1723620SM

Transaxle

$883.99

$

Usually ships in 2-12 days

0

33

Simplicity 1723590SM

Key, Engine Shaft, 1/4 x 1/4 x 2-1/8

$6.49

$

Usually ships in 2-12 days

0

34

Simplicity 1723584SM

Key, Axle Shaft 3/16 x 3/16 x 1-3/8
(Superseded to 7072386YP)

$5.49

$

In Stock, only 1 left!

0

35

Simplicity 2827794SM

"E" clip

$3.49

$

In Stock, Qty 16

0

36

Simplicity 1725225SM

Washer
(Superseded to 7023787SM)

$3.49

$

In Stock, only 1 left!

0

37

Simplicity 1723580SM

Drive Wheek, Left

$85.99

$

Usually ships in 2-12 days

0

38

Simplicity 1723581SM

Drive Wheel, Right (not shown)

$75.99

$

Usually ships in 2-12 days

0

39

Simplicity 1921973SM

Capscrew, Hex Head, 3/8-16 x 3-1/4

$5.49

$

Usually ships in 2-12 days

0

40

Simplicity 1723579SM

Blade clutch idler pulley

$

$

Not available

41

Snapper 1723578SM

Idler pulley spacer bushing

$12.99

$

Usually ships in 2-12 days

0

42

Simplicity 1723577SM

Blade Clutch Idler Boss

$26.99

$

Usually ships in 2-12 days

0

43

Simplicity 1723576SM

Blade Clutch Idler Tensioning Rod

$4.99

$

Usually ships in 2-12 days

0

44

Simplicity 1921160SM

Capscrew, 5/16-18 x 2-1/4

$4.99

$

Usually ships in 2-12 days

0

45

Simplicity 1723575SM

Transmission Forward Mounting Hanger

$18.99

$

Usually ships in 2-12 days

0

46

Simplicity 1723574SM

Eyebolt, 5/16-18x3-1/4

$5.49

$

Usually ships in 2-12 days

0

47

Simplicity 1723549SM

Clutch Cover Plate

$32.99

$

Usually ships in 2-12 days

0

48

Simplicity 1723614

Engine - 13.5 HP Briggs & Stratton

$

$

Not available

49

Simplicity 1723684

Engine - 13 HP Honda

$

$

Not available

50

Simplicity 1723615

Engine - 15 HP Kawasaki

$

$

Not available

51

ENGINE, 16 HP Briggs & Stratton

$

$

Not available
