1696096 - Simplicity Walk-Behind Mower, 15hp Handle Group Parts Diagram

Walk-Behind Mower, 15hp

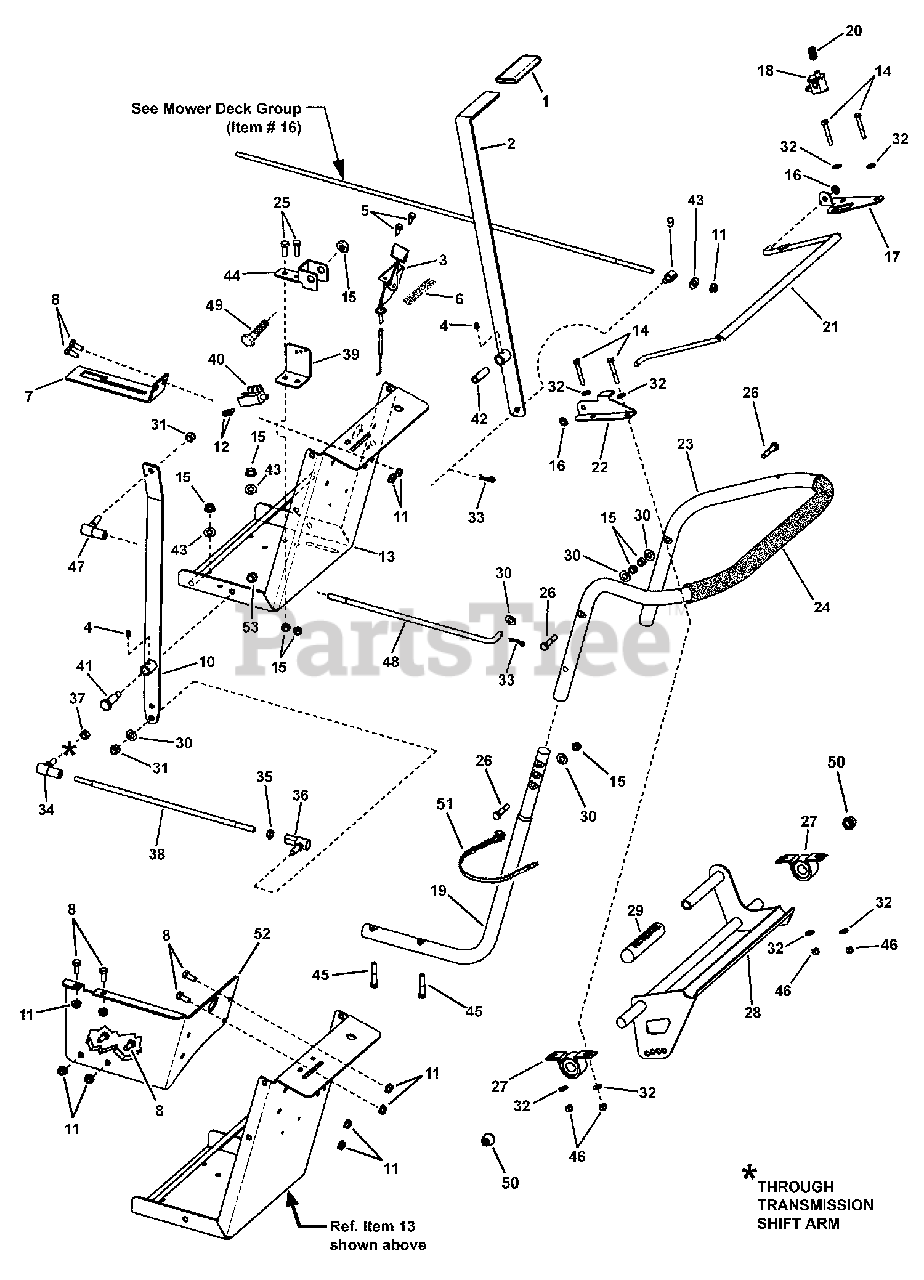

Handle Group Parts Diagram

  • Title

1

Simplicity 1719965

GRIP, Handle
(Superseded to 1719965SM)

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 7058960

LEVER, Blade Clutch Engage (weldment)

Note: replaces 1723595

$

$

Not available

3

Simplicity 7027802

CABLE, Throttle, Kawasaki
(Superseded to 7027802SM)

Note: part number stamped on cable

$30.99

$

Usually ships in 2-12 days

0

3

Simplicity 7027394

CABLE, Throttle, Briggs

Note: part number stamped on cable

$

$

Not available

4

Simplicity 7014871

LUBE FITTING, 3/16" hole
(Superseded to 7014871SM)

$4.49

$

In Stock, only 4 left!

0

5

Simplicity 7091686

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703466)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 7029167

DECAL, Throttle, Brush Cutter

Note: see Decals group

$

$

Not available

7

Simplicity 1723550

BRACKET, Blade Engage Lock
(Superseded to 1723550SM)

$23.99

$

Usually ships in 2-12 days

0

8

Simplicity 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

9

Simplicity 7028200

SWIVEL, Adjustable, 5/16-18 thread
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

10

Simplicity 7059204

LEVER, Transmission Drive (weldment)
(Superseded to 7059204YP)

Note: replaces 1723573

$125.99

$

Usually ships in 2-12 days

0

11

Simplicity 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Simplicity 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

13

Simplicity 1723553

CONTROL DECK & DASH PANEL (weldment)
(Superseded to 1723553SM)

$114.99

$

Usually ships in 2-12 days

0

14

Simplicity 7091813

SCREW, 1/4-20 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 7091298

NUT 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 7072487

BRACKET, Handle Pivot, RH
(Superseded to 7072487YP)

$21.99

$

Usually ships in 2-12 days

0

18

Simplicity 7023354

SWITCH, Seat NC
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

19

Simplicity 1723569

HANDLE, Lower
(Superseded to 1723569SM)

$51.99

$

Usually ships in 2-12 days

0

20

Simplicity 1723564

SPRING, Safety Return
(Superseded to 1723564SM)

$9.99

$

Usually ships in 2-12 days

0

21

Simplicity 1723561

WELDMENT, Safety Bar
(Superseded to 1723561SM)

$61.99

$

Usually ships in 2-12 days

0

22

Simplicity 7044927

BRACKET, Safety Bar Pivot, LH
(Superseded to 7044927YP)

Note: replaces 1723566

$18.99

$

Usually ships in 2-12 days

0

23

Simplicity 7033736

HANDLE, Upper

Note: was 1723572

$

$

Not available

24

Simplicity 1719968

COVER, Foam
(Superseded to 1719968SM)

Note: was 1723568

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 7090209

SCREW, 5/16-18 x 1" Hex Head Cap, GR 2
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

26

Simplicity 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

27

Simplicity 1723570

BEARING, 3/4 I.D.
(Superseded to 1723570SM)

$

$

Not available

28

Simplicity 1725232

WELDMENT, Drive Engagement Bar
(Superseded to 1725232SM)

$108.99

$

Usually ships in 2-12 days

0

29

Simplicity 1725233

GRIP, Reverse Handle
(Superseded to 1725233SM)

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 7090122

WASHER, 3/8 SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

32

Simplicity 7091294

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 7091310

HAIR PIN, #13
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

34

Simplicity 1723554

BALL JOINT, Type R (5/16-24 thread)
(Superseded to 1723554SM)

$16.99

$

Usually ships in 2-12 days

0

35

Simplicity 1723556

NUT, 3/8-24LH Hex Jam
(Superseded to 1723556SM)

$

$

Not available

36

Simplicity 1723557

BALL JOINT LH (3/8-24 LH thread)
(Superseded to 1723557SM)

$12.99

$

Usually ships in 2-12 days

0

37

Simplicity 7092031

NUT, 5/16-24 Hex Jam
(Superseded to 7092031SM)

$3.49

$

Usually ships in 2-12 days

0

38

Simplicity 1723555

ROD, Trans. Engage, Lower (3/8-24 LH & 5/16-24 threads)
(Superseded to 1723555SM)

$16.99

$

Usually ships in 2-12 days

0

39

Simplicity 1723351

BRACKET, Deck Safety Switch

$

$

Not available

40

Simplicity 1723552

SWITCH, Deck Safety
(Superseded to 1723552SM)

$

$

Not available

41

Simplicity 1723662

BOLT, 1/2 x 1-3/16 to 3/8-16 Shoulder
(Superseded to 1723662SM)

$3.99

$

Usually ships in 2-12 days

0

42

Simplicity 7041868

SPACER, Transmission, Express

$

$

Not available

43

Simplicity 7090188

WASHER, 5/16" SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

44

Simplicity 1723596

BRACKET, Clutch Engage Lever
(Superseded to 1723596SM)

$17.99

$

Usually ships in 2-12 days

0

45

Simplicity 7091908

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 7091908YP)

$4.99

$

Usually ships in 2-12 days

0

46

Simplicity 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

47

Simplicity 7010745

BALL JOINT, 3/8-24 Thread
(Superseded to 1669567SM)

$15.99

$

In Stock, Qty 10

0

48

Simplicity 1725231

ROD, Trans. Engage, Upper (3/8-24 thread)
(Superseded to 1725231SM)

$42.99

$

Usually ships in 2-12 days

0

49

Simplicity 7076938

SCREW, 5/16-18 x 2-1/4" Hex Head Cap, GR 5
(Superseded to 703177)

$3.49

$

Usually ships in 2-12 days

0

50

Simplicity 7029495

CAP, Push Plastic
(Superseded to 7029495YP)

$3.49

$

Usually ships in 2-12 days

0

51

Simplicity 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

52

Simplicity 1723616

BRACKET, Fuel Tank
(Superseded to 1723616SM)

$59.99

$

Usually ships in 2-12 days

0

53

Simplicity 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0
