1696092 A-00 - Murray 42" Snow Blade 42" Snow Blade (1696092) Parts Diagram

42" Snow Blade

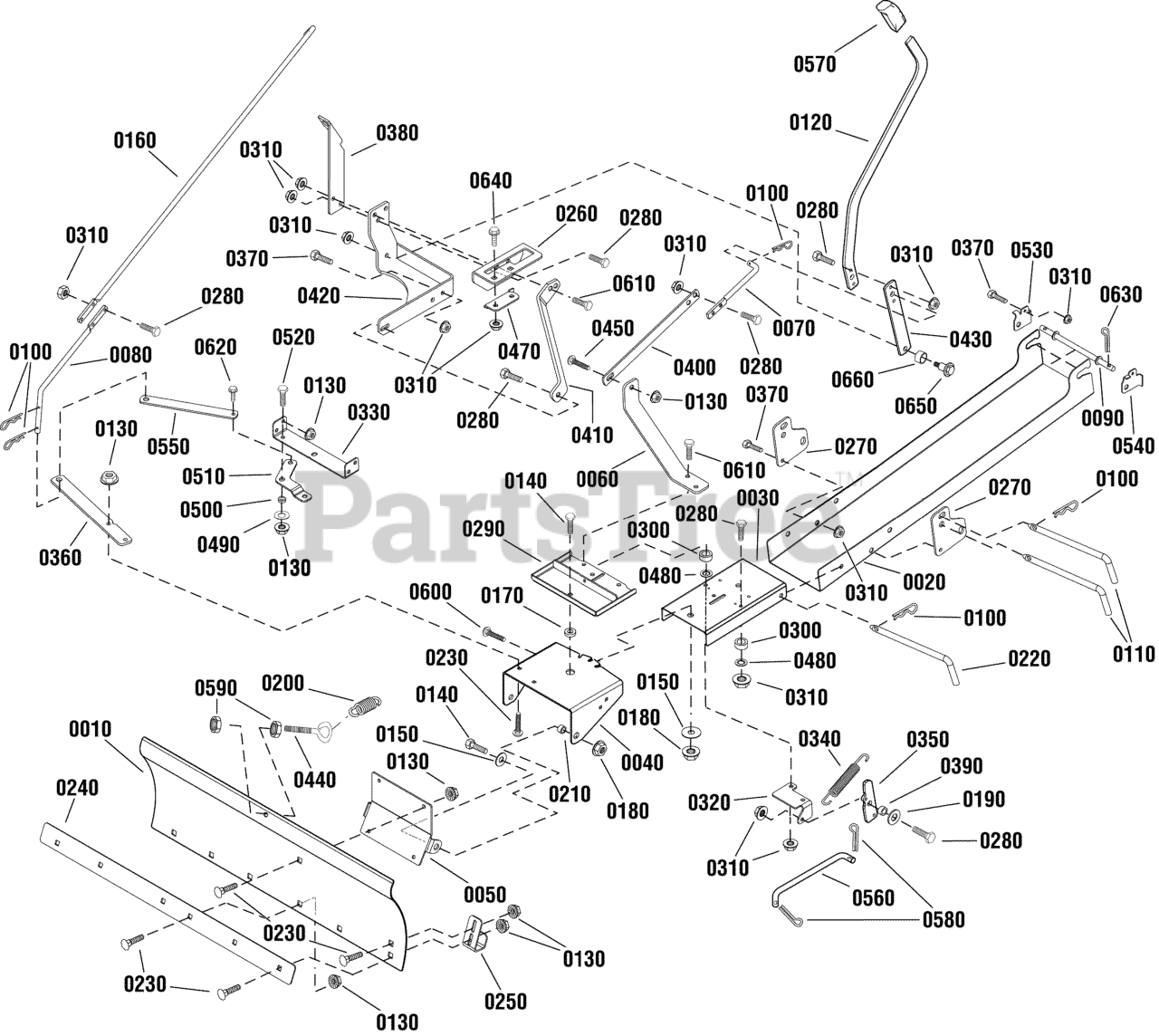

42" Snow Blade (1696092) Parts Diagram

  • Title

0010

Murray 1730075A

BLADE, 42
(Superseded to 1730075ASM)

$336.99

$

Usually ships in 2-12 days

0

0020

Murray 1752376A

SUBFRAME
(Superseded to 1752376AYP)

$170.99

$

In Stock, only 1 left!

0

0030

Murray 1730077A

HITCH, Lift
(Superseded to 1730077ASM)

$67.99

$

Usually ships in 2-12 days

0

0040

Murray 1730078A

HITCH, Pivot
(Superseded to 1730078ASM)

$72.99

$

Usually ships in 2-12 days

0

0050

Murray 1730079A

PLATE, Backer
(Superseded to 1730079ASM)

$74.99

$

Usually ships in 2-12 days

0

0060

Murray 1752421A

SUPPORT, Blade Lift
(Superseded to 1752421AYP)

$41.99

$

Usually ships in 2-12 days

0

0070

Murray 1752607

ROD, Lift
(Superseded to 1752607YP)

$67.99

$

Usually ships in 2-12 days

0

0080

Murray 1752418

ROD, Angle Lift
(Superseded to 1752418YP)

$31.99

$

Usually ships in 2-12 days

0

0090

Murray 1752371

ROD, Rear Support
(Superseded to 1752371YP)

$75.99

$

Usually ships in 2-12 days

0

0100

Murray 1918196

PIN, Spring .091 X 1.88
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

0110

Murray 1731414

ROD, Latch, 1/2 Dia. X 9 Lg (42" Mower)
(Superseded to 1731414SM)

$14.99

$

Usually ships in 2-12 days

0

0120

Murray 1752360A

ARM, Lift
(Superseded to 1752360AYP)

$119.99

$

Usually ships in 2-12 days

0

0130

Murray 1931211

NUT, Hex Flange Whiz Lock, 3/8-16, Small
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0140

Murray 1921176

CAPSCREW, Hex Head, 1/2-13 x 1-11/32, G5
(Superseded to 1921176SM)

$4.99

$

In Stock, only 1 left!

0

0150

Murray 1918431

WASHER, Plain, 1/2 x 1-3/8 OD

$4.49

$

In Stock, Qty 11

0

0160

Murray 1753678

ROD, Blade Angle
(Superseded to 1753678YP)

$87.99

$

Usually ships in 2-12 days

0

0170

Murray 1719683

SPACER, 9/16 x 1
(Superseded to 1719683SM)

$12.99

$

Usually ships in 2-12 days

0

0180

Murray 1960668

* NUT, Hex Flange 1/2-13
(Superseded to 1960668SM)

$3.49

$

Usually ships in 2-12 days

0

0190

Murray 1919381

WASHER-0.312(0.34IDX1.00ODX.13THK)BLK
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

0200

Murray 2101126

SPRING, Extension
(Superseded to 2101126SM)

$46.99

$

In Stock, only 1 left!

0

0210

Murray 1709235

SPACER, .52 x 3/4
(Superseded to 1709235SM)

$9.99

$

Usually ships in 2-12 days

0

0220

Murray 1715758

ROD, Latch
(Superseded to 1715758SM)

$

$

Not available

0230

Murray 1931350

BOLT, RD HD SH SQ NK 3/8- 16X1.000 G5 BL
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0240

Murray 1731351A

BAR, Scraper
(Superseded to 1731351ASM)

$109.99

$

In Stock, only 1 left!

0

0250

Murray 1731352A

SHOE, Skid
(Superseded to 1731352ASM)

$82.99

$

Usually ships in 2-12 days

0

0260

Murray 1752362A

QUADRANT, Lift
(Superseded to 1752362AYP)

$39.99

$

Usually ships in 2-12 days

0

0270

Murray 1752417A

SUBFRAME, Front Mounting
(Superseded to 1752417AYP)

$41.99

$

Usually ships in 2-12 days

0

0280

Murray 1921333

BOLT, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0290

Murray 1732454A

BRACKET ASSEMBLY, Hold Down
(Superseded to 1732454ASM)

$

$

Not available

0300

Murray 1666697

SPACER-0.328ID 0.497OD 0.218LG PM YEL
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

0310

Murray 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0320

Murray 1731360A

BRACKET, Latch Pivot
(Superseded to 1731360ASM)

$21.99

$

Usually ships in 2-12 days

0

0330

Murray 1732594A

BRACKET, Cross Brace
(Superseded to 1732594ASM)

$41.99

$

Usually ships in 2-12 days

0

0340

Murray 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

0350

Murray 1732756A

BAR, Latch
(Superseded to 1732756ASM)

$9.99

$

Usually ships in 2-12 days

0

0360

Murray 1752419A

PLATE, Blade Mounting
(Superseded to 1752419AYP)

$31.99

$

Usually ships in 2-12 days

0

0370

Murray 1921332

BOLT, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0380

Murray 1752662A

SUPPORT, Blade Angling
(Superseded to 1752662AYP)

$34.99

$

Usually ships in 2-12 days

0

0390

Murray 1703900

SPACER, .323 I.D. x .500 O.D. x 0.270 Long Heat Treated
(Superseded to 1703900SM)

$7.99

$

Usually ships in 2-12 days

0

0400

Murray 1752610A

BAR, Lift
(Superseded to 1752610AYP)

$26.99

$

Usually ships in 2-12 days

0

0410

Murray 1752609A

BRACE, Lift Support
(Superseded to 1752609AYP)

$39.99

$

Usually ships in 2-12 days

0

0420

Murray 1752448A

SUPPORT ASSEMBLY, Lift
(Superseded to 1752448AYP)

$148.99

$

Usually ships in 2-12 days

0

0430

Murray 1752412A

ARM, Blade Lift
(Superseded to 1752412AYP)

$50.99

$

Usually ships in 2-12 days

0

0440

Murray 1675198

EYE BOLT, 5/16"18 x 18
(Superseded to 1675198SM)

$7.49

$

Usually ships in 2-12 days

0

0450

Murray 7014981

BOLT, Hex Flange, 3/8-24 GR 8
(Superseded to 7014981SM)

$14.99

$

In Stock, Qty 8

0

0470

Murray 1752801A

WEAR BRACKET
(Superseded to 1752801AYP)

$21.99

$

Usually ships in 2-12 days

0

0480

Murray 1933988

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0490

Murray 1924356

WASHER, Plain, 13/32 x 1-1/2 x 1/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0500

Murray 1663752

SPACER, 25/64 x 5/8 x 3/16, Hardened
(Superseded to 1663752SM)

$5.99

$

In Stock, only 2 left!

0

0510

Murray 1732147A

LEVER, Latch
(Superseded to 1732147ASM)

$

$

Not available

0520

Murray 1921966

CAPSCREW, Hex Head, 3/8-16 x 7/8
(Superseded to 1921966SM)

$3.99

$

Usually ships in 2-12 days

0

0530

Murray 1752369A

HITCH BRACKET, Rear RH
(Superseded to 1752369AYP)

$32.99

$

Usually ships in 2-12 days

0

0540

Murray 1752370A

HITCH BRACKET, Rear LH
(Superseded to 1752370AYP)

$32.99

$

Usually ships in 2-12 days

0

0550

Murray 1752497A

BAR, Shift
(Superseded to 1752497AYP)

$22.99

$

Usually ships in 2-12 days

0

0560

Murray 1732355

LINK
(Superseded to 1732355SM)

$30.99

$

Usually ships in 2-12 days

0

0570

Murray 1722302

GRIP
(Superseded to 1722302SM)

$8.49

$

In Stock, Qty 10

0

0580

Murray 1918447

PIN, Cotter, 3/4, Black
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0590

Murray 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0600

Murray 1931348

BOLT, Carriage 3/18"18 x 5/8
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0610

Murray 1921977

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5, Black
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

0620

Murray 1732426

BOLT, Shoulder, 5/16-18 x .13/16, 1/2" Thread Length
(Superseded to 1732426SM)

$4.49

$

In Stock, only 1 left!

0

0630

Murray 1918452

PIN, Cotter 1/8 X 1
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

0640

Murray 1931332

BOLT, Round Head, Short Neck, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0650

Murray 1732412

SHOULDER BOLT, 5/16"18
(Superseded to 1732412SM)

$15.99

$

Usually ships in 2-12 days

0

0660

SPRING, Compression

$

$

Not available
