1696082 - Canadiana 29" Snow Thrower, Canada (2011) Wheels & Tires Group Parts Diagram

29" Snow Thrower, Canada

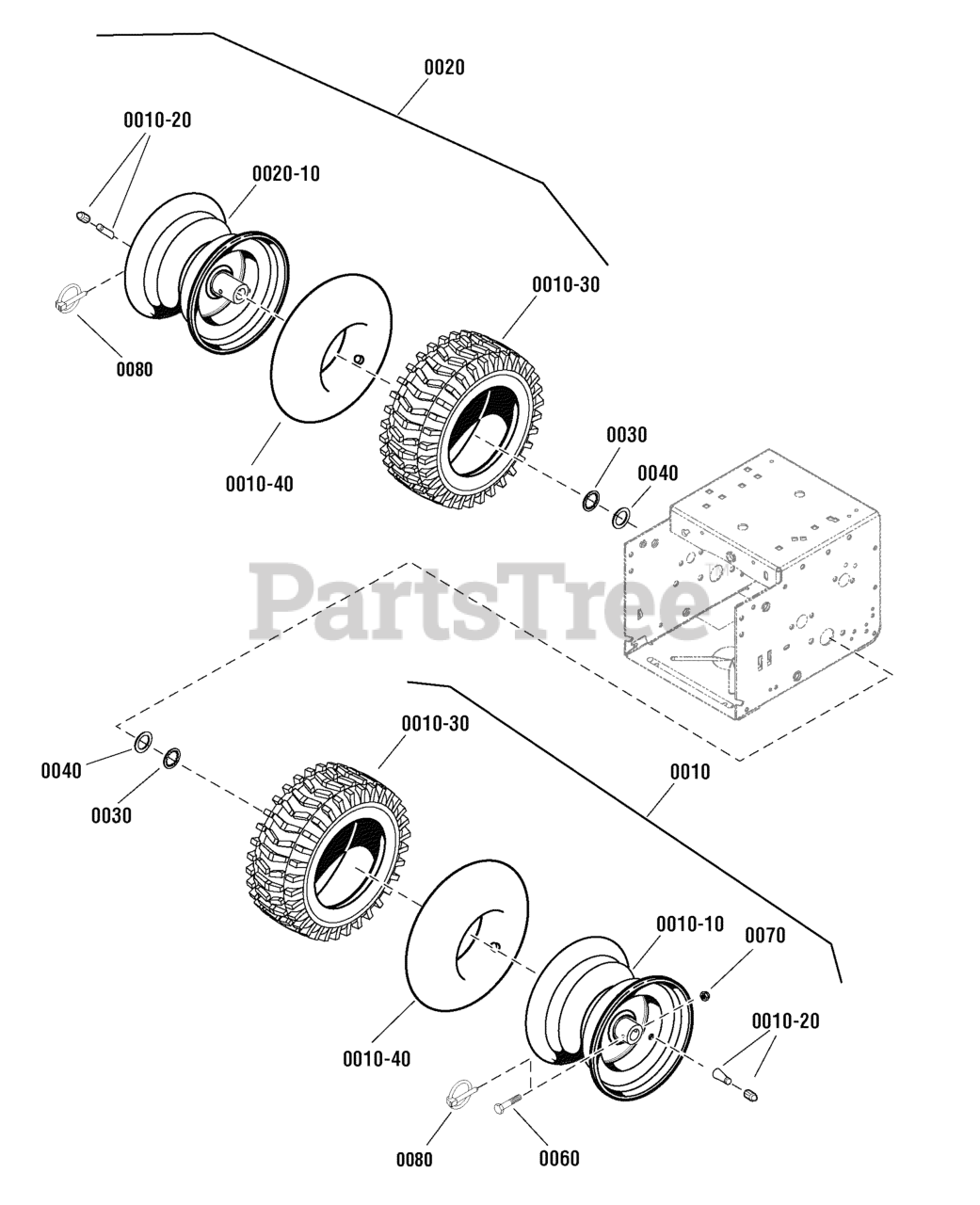

Wheels & Tires Group Parts Diagram

  • Title

0010

Murray 1751296YP

WHEEL & TIRE ASSEMBLY, 16 x 4.8-8, LH

Note: (Use on 27" Models) (Includes Ref. Nos. 0010-10, 0010-20, 0010-30 & 0010-40)

$153.99

$

Usually ships in 2-12 days

0

0010

Murray 1751299YP

WHEEL & TIRE ASSEMBLY, 16 x 6.50-8, LH

Note: (Use on 29" Models)

$170.99

$

Usually ships in 2-12 days

0

0010-10

* RIM, Wheel, LH

$

$

Not available

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0010-30

Murray 1751298YP

TIRE, 16 x 4.80 - 8

Note: (Use on 27" Models)

$107.99

$

Usually ships in 2-12 days

0

0010-30

Murray 1751301YP

TIRE, 16 x 6.50-8

Note: (Use on 29" Models)

$101.99

$

Usually ships in 2-12 days

0

0010-40

Murray 2164247SM

TUBE, Tire

Note: (Use on All Models)

$40.99

$

Usually ships in 2-12 days

0

0020

Murray 1751297YP

WHEEL & TIRE ASSEMBLY, 16 x 4.8-8, RH

Note: (Use on 27" Models) (Includes Ref. Nos. 0020-10, 0010-20, 0010-30 & 0010-40)

$170.99

$

Usually ships in 2-12 days

0

0020

Murray 1751300YP

WHEEL & TIRE ASSEMBLY, 16 x 6.50-8, RH

Note: (Use on 29" Models)

$170.99

$

Usually ships in 2-12 days

0

0020-10

* WHEEL, Rim, RH

$

$

Not available

0030

Murray 1657528SM

RING, Retaining

Note: (Use on 27" Models)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, Flat, 3/4

Note: (Use on 27" Models)

$4.99

$

In Stock, Qty 20+

0

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4, G5

Note: (Use on 27" Models)

$4.99

$

In Stock, only 3 left!

0

0070

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

Note: (Use on 27" Models)

$4.49

$

In Stock, Qty 20+

0

0080

Murray 73842MA

PIN, Klik, 1/4
(Superseded to 500016MA)

Note: (Use on 27" Models)

$15.99

$

In Stock, only 1 left!

0

0080

Murray 1731186SM

PIN, Klik, 5/16
(Superseded to 703160)

Note: (Use on 29" Models)

$5.49

$

In Stock, Qty 7

0
