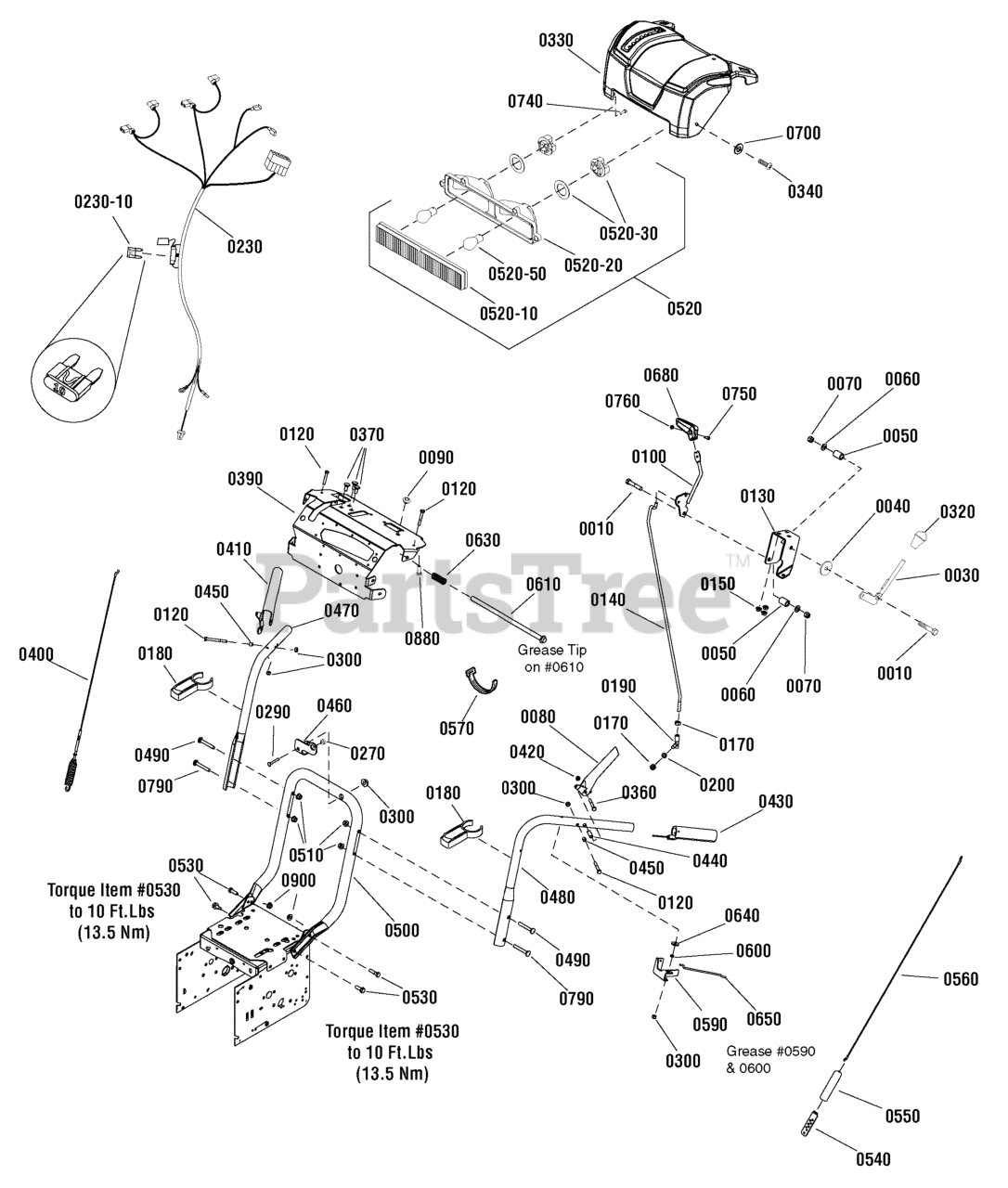

1696081 - Canadiana 27" Snow Thrower, Canada (2011) Handles & Controls Group Parts Diagram

27" Snow Thrower, Canada

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0030

Murray 1736192YP

LEVER, Deflector

$13.99

$

Usually ships in 2-12 days

0

0050

Murray 50786MA

SPRING, 3/4"

$5.49

$

Usually ships in 2-12 days

0

0040

Murray 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0060

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0070

Murray 1919439SM

NUT, Hex Lock, ESNA Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0090

Murray 1667588SM

BUSHING, 3/8 ID x 7/16 OD x 2

$5.99

$

In Stock, Qty 20+

0

0100

Murray 1736836YP

LEVER, Speed
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0120

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0130

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0140

Murray 1751543YP

ROD, Speed Control
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0150

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0170

Murray 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1739487YP

BRACKET, Handle Mount

$6.49

$

In Stock, only 1 left!

0

0190

Murray 1739290YP

BALL JOINT
(Superseded to 703224)

$21.99

$

In Stock, only 2 left!

0

0200

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0230

Murray 1738286YP

WIRING HARNESS

$25.99

$

Usually ships in 2-12 days

0

0230-10

* FUSE, Mini, 10 Amp

$

$

Not available

0270

Murray 1501874MA

BUSHING, Chute Crank

$4.99

$

In Stock, only 1 left!

0

0290

Murray 1931323SM

BOLT, Carriage, Short Neck, 1/4-20 x 2, G5

$4.49

$

Usually ships in 2-12 days

0

0300

Murray 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0320

Murray 1732470SM

KNOB, Deflector

$19.99

$

In Stock, Qty 6

0

0330

Murray 1736184YP

DASH ASSEMBLY, Twin Light

$113.99

$

Usually ships in 2-12 days

0

0340

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 4 left!

0

0360

Murray 1750554YP

BOLT, Shoulder, 10-24

$4.99

$

In Stock, only 1 left!

0

0370

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0390

Murray 1739500BZYP

SUPPORT, Dash
(Superseded to 1739500BMYP)

$54.99

$

Usually ships in 2-12 days

0

0400

Murray 1737544YP

CABLE, Auger Drive
(Superseded to 703221)

$24.99

$

In Stock, only 4 left!

0

0410

Murray 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0420

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Murray 1726317SM

GRIP

$8.49

$

In Stock, only 1 left!

0

0440

Murray 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0450

Murray 1678392SM

SPACER, 1/4 ID x 3/8 ODL
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0460

Murray 1735589YP

BRACKET, Rod Support

$9.49

$

Usually ships in 2-12 days

0

0470

Murray 1734587ASM

HANDLE, Upper, RH

$51.99

$

Usually ships in 2-12 days

0

0480

Murray 1734586ASM

HANDLE, Upper, LH

$55.99

$

In Stock, only 1 left!

0

0490

Murray 1960273SM

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, G5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0500

Murray 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0510

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0520

Murray 1736176YP

HEADLIGHT ASSEMBLY

$64.99

$

Usually ships in 2-12 days

0

0520-10

LENS, TWIN LIGHT

$

$

Not available

0520-20

DEFLECTOR, Twin Light

$

$

Not available

0520-30

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

$10.99

$

Usually ships in 2-12 days

0

0520-50

* BULB, Headlight, 12V 15W (1156)

$

$

Not available

0530

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0540

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0540

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0550

Murray 308146MA

BOOT, Spring End Cover

$6.49

$

Usually ships in 2-12 days

0

0560

Murray 1502113MA

CABLE, FR-DR

$22.99

$

In Stock, Qty 20+

0

0570

Murray 7012080SM

TIE, Cable
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0590

Murray 1733505ASM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0600

Murray 1733095SM

SPACER, 1/4 ID

$4.49

$

Usually ships in 2-12 days

0

0610

Murray 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0630

Murray 2108360SM

SPRING, Compression, 2-1/4"

$5.49

$

In Stock, only 1 left!

0

0640

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0650

Murray 1736360YP

ROD, Hold Down

$11.99

$

Usually ships in 2-12 days

0

0680

Murray 1733192SM

KNOB

$8.49

$

Usually ships in 2-12 days

0

0700

Murray 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0740

Murray 7091105YP

SCREW, Hex Washer Head, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0750

Murray 1960589SM

SCREW, Phillips Head, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0760

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0790

Murray 1931338SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, GR5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0900

Murray 1960684SM

NUT, Hex KEPS, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!
