1696081 - Canadiana 27" Snow Thrower, Canada (2011) Auger Housing Group Parts Diagram

27" Snow Thrower, Canada

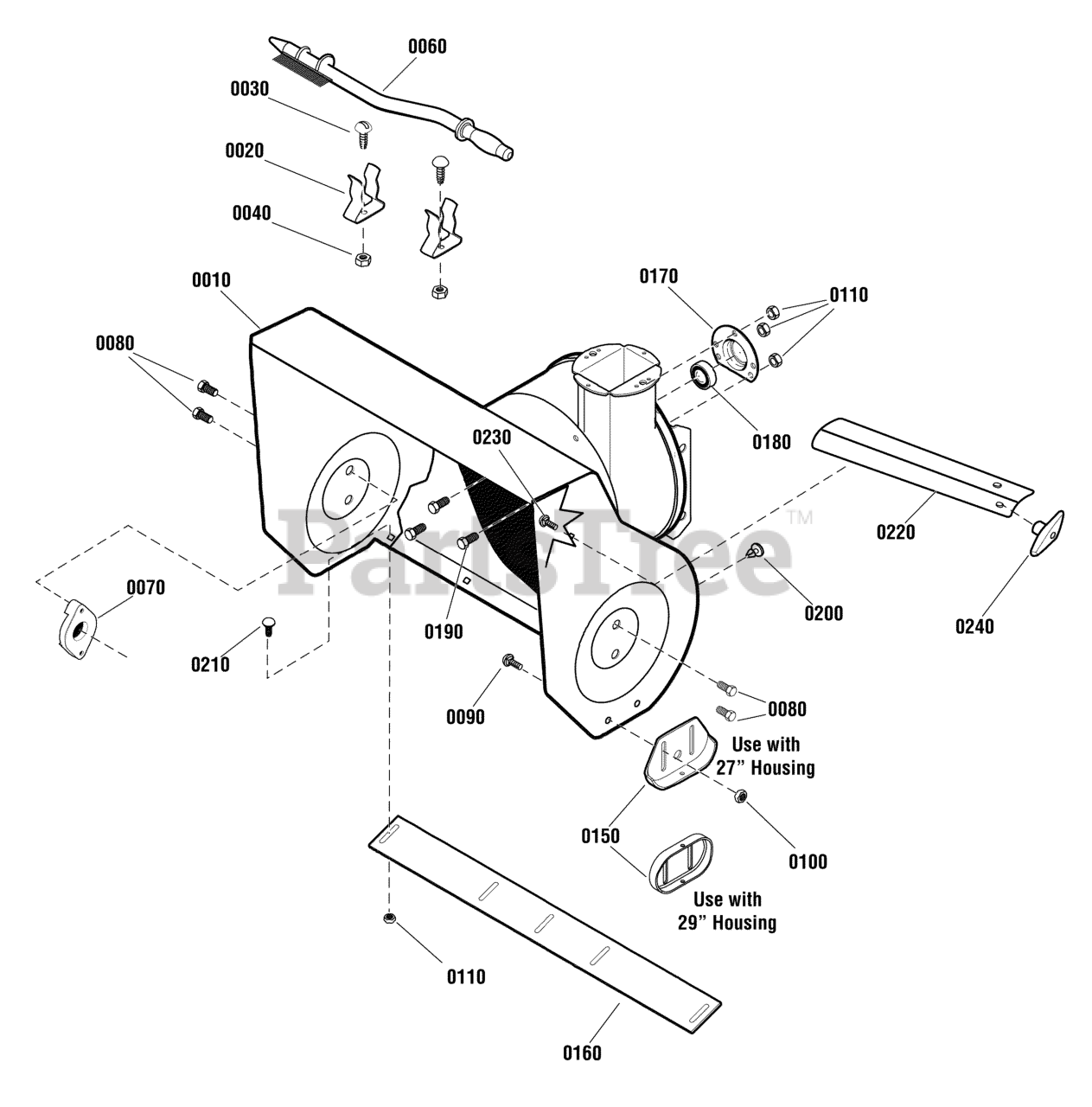

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687532YP

HOUSING, Auger, 27"

$467.99

$

Usually ships in 2-12 days

0

0010

Murray 1687547YP

HOUSING, Auger, 29"

$535.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLAMP

$6.49

$

In Stock, only 3 left!

0

0030

Murray 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 15X146MA

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, only 1 left!

0

0060

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, Qty 7

0

0070

Murray 53757MA

BEARING, Auger Shaft

$9.99

$

In Stock, only 2 left!

0

0080

Murray 25X021MA

SCREW, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 7091547YP

BOLT, Carriage, 3/8-16 x 3/4, G5
(Superseded to 703448)

Note: (Use on 27" Housing)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 7091790YP

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/4, GR5
(Superseded to 703130)

Note: (Use on 29" Housing)

$3.99

$

In Stock, Qty 15

0

0100

Murray 7091619SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0110

Murray 710026MA

NUT, Hex Flange, Serrated Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1737986AYP

SKID, Height Adjust
(Superseded to 1740912BMYP)

Note: (Use on 27" Housing)

$13.99

$

In Stock, Qty 12

0

0150

Murray 1750222YP

SKID, Height Adjust

Note: (Use on 29" Housing)

$37.99

$

In Stock, only 3 left!

0

0160

Murray 1740745AYP

BLADE, Scraper, 27"
(Superseded to 1740745BMYP)

$

$

Not available

0160

Murray 1740746AYP

BLADE, Scraper, 29"

$46.99

$

In Stock, only 4 left!

0

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0190

Murray 001X45MA

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

0200

Murray 760040MA

PLUG, Panel

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 7090799SM

BOLT, Carriage, 5/16-18 x 5/8, G5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0220

Murray 1733102ASM

DRIFT CUTTER

$31.99

$

In Stock, only 4 left!

0

0230

Murray 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0240

Murray 711604MA

NUT, Wing, 5/16-18

$3.49

$

In Stock, Qty 5

0
