1696081 - Canadiana 27" Snow Thrower, Canada (2011) Auger Drive Group Parts Diagram

27" Snow Thrower, Canada

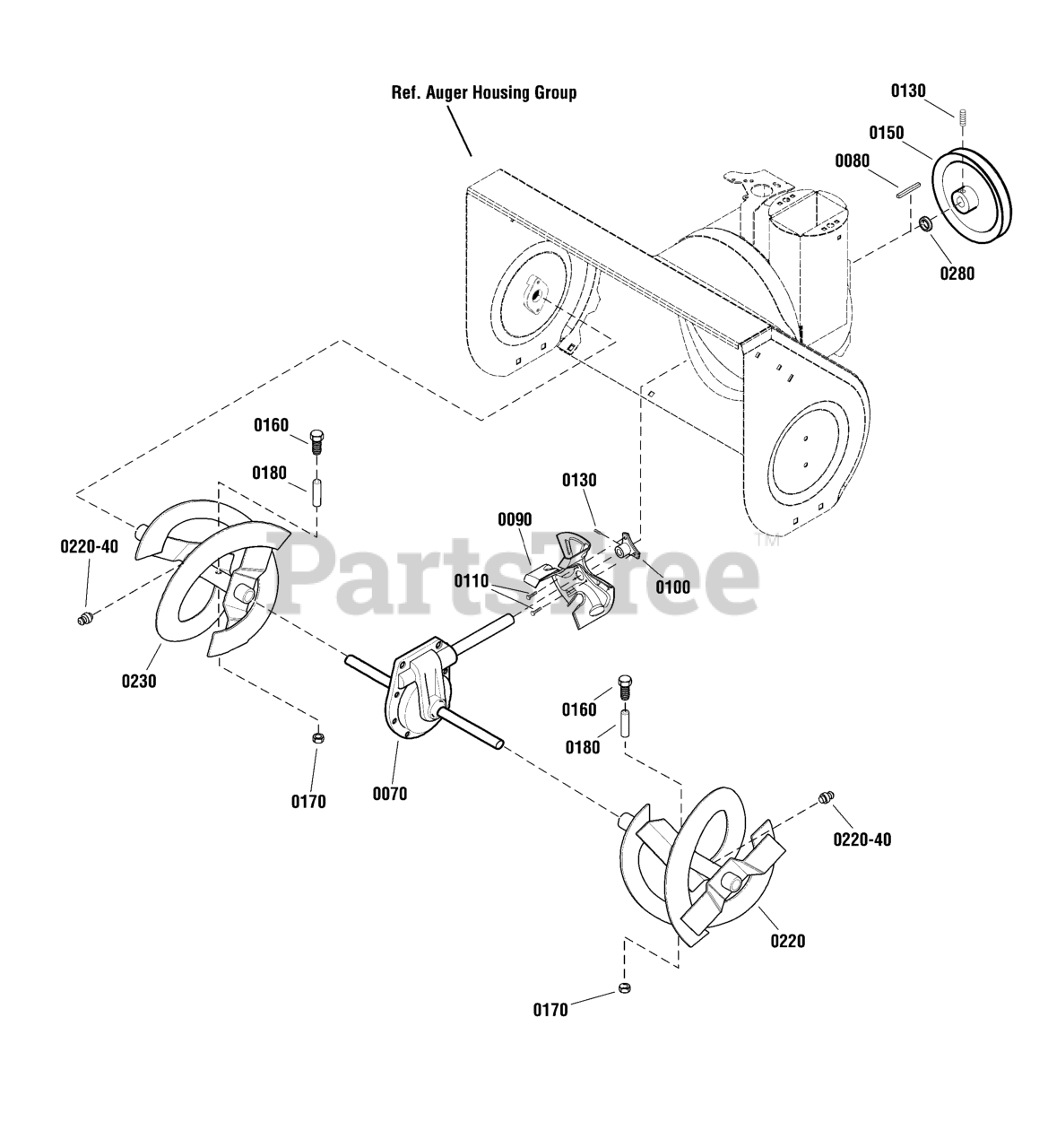

Auger Drive Group Parts Diagram

  • Title

0070

Murray 1752898YP

GEAR CASE ASSEMBLY, 29"

Note: (Used on 27" Models)

$706.99

$

Usually ships in 2-12 days

0

0080

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 12

0

0090

Murray 1739094AYP

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, Qty 20+

0

0100

Murray 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 4 left!

0

0110

Murray 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

0130

Murray 7090848SM

SET SCREW, Socket Head, 5/16-18 x 1/2

Note: (Used on 27" Models)

$10.99

$

In Stock, only 1 left!

0

0150

Murray 0151211MA

PULLEY

$

$

Currently unavailable

0160

Murray 703057

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G2

$5.99

$

In Stock, Qty 6

0

0170

Murray 703251

NUT, Hex Center Lock, 1/4-20

$4.99

$

In Stock, Qty 20+

0

0180

Murray 703058

SPACER, 1/4 x 1/2

$7.49

$

In Stock, only 4 left!

0

0220

Murray 1740738BMYP

AUGER, LH, 29 "

Note: (Used on 27" Models)

$

$

Currently unavailable

0230

Murray 1740739BMYP

AUGER, RH, 29"

Note: (Used on 27" Models)

$

$

Currently unavailable

0220-40

Murray 703907

FITTING, Grease

Note: (Included with Ref. Nos. 0220 & 0230)

$4.99

$

In Stock, Qty 20+

0

--

Murray C950527610MA

KIT, Shear Bolt
(Superseded to 1501216MA)

Note: (Includes Ref. Nos. 0160, 0170 & 0190)

$4.99

$

In Stock, Qty 20+

0

0280

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 10

0
