1696080 - Canadiana 24" Snow Thrower, Canada (2011) Discharge Chute Group Parts Diagram

24" Snow Thrower, Canada

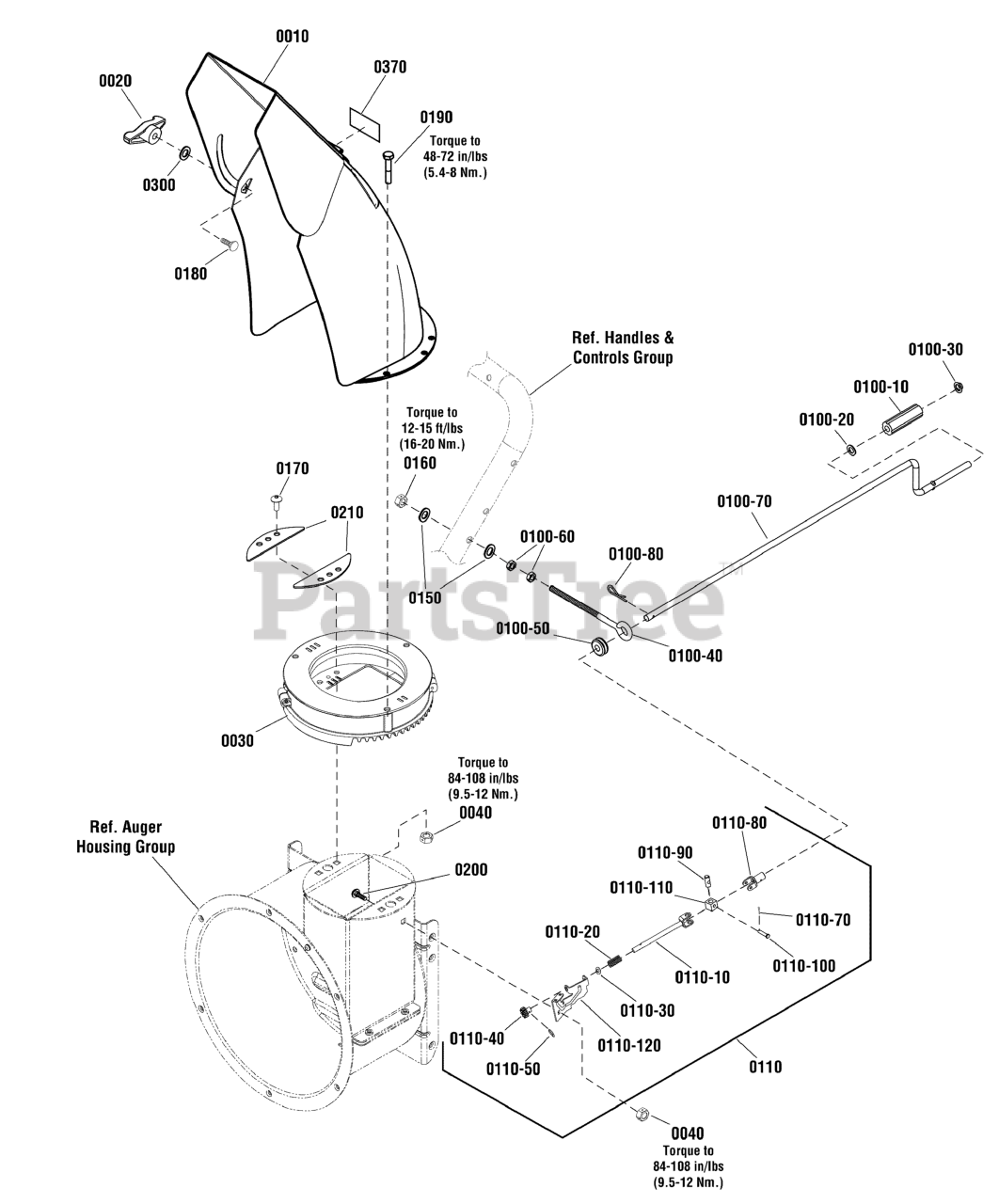

Discharge Chute Group Parts Diagram

  • Title

0010

Murray 1736380AYP

CHUTE

$185.99

$

In Stock, only 1 left!

0

0020

Murray 7035744YP

KNOB, Wing, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0030

Murray 1752922YP

CHUTE ROTATION ASSEMBLY, LH Crank

$48.99

$

Usually ships in 2-12 days

0

0040

Murray 1923358SM

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0100-10

Murray 51443MA

KNOB, Sleeve

$7.49

$

Usually ships in 2-12 days

0

0100-20

Murray 309312MA

WASHER. Flat, 3/8

$4.49

$

In Stock, only 3 left!

0

0100-30

Murray 73664MA

NUT, Push, 3/8

$4.99

$

In Stock, only 3 left!

0

0100-40

Murray 1501456MA

EYEBOLT, 3/8-16 x 6-1/2"

$9.49

$

Usually ships in 2-12 days

0

0100-50

Murray 148MA

GROMMET, Eye Bolt

$

$

Not available

0100-60

Murray 71045MA

NUT, Hex Jam, 3/8-16

$4.99

$

Usually ships in 2-12 days

0

0100-70

Murray 1501074YZMA

CRANK, Chute Turn

$

$

Not available

0100-80

Murray 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0110

Murray 1752560YP

BRACKET ASSEMBLY, Chute Rotation

Note: (Includes Ref. Nos. 0110-10, 0110-20, 0110-30, 0110-40, 0110-50, 0110-60, 0110-70, 0110-80, 0110-90, 0110-100, 0110-110 & 0110-120)

$55.99

$

Usually ships in 2-12 days

0

0110-10

Murray 1501533YZMA

ROD, Yoke Crank

$11.99

$

Usually ships in 2-12 days

0

0110-20

Murray 164X37MA

SPRING, Compression

$9.49

$

In Stock, only 1 left!

0

0110-30

Murray 017X48MA

WASHER, Flat, 3/8

$8.49

$

Usually ships in 2-12 days

0

0110-40

Murray 1501067MA

GEAR, 9 Tooth

$17.99

$

In Stock, only 2 left!

0

0110-50

Murray 1501293MA

PIN, Hair

$4.99

$

Usually ships in 2-12 days

0

0110-70

Murray 579493MA

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

0110-80

Murray 1501075YZMA

YOKE TUBE ASSEMBLY, Adapter

$10.99

$

In Stock, only 1 left!

0

0110-90

Murray 578060MA

PIN, Universal Joint

$7.49

$

In Stock, only 1 left!

0

0110-100

Murray 578309MA

PIN, Clevis, 1/4

$5.49

$

In Stock, Qty 9

0

0110-110

Murray 578063MA

BLOCK, Universal Pivot

$5.49

$

In Stock, Qty 5

0

0110-120

BRACKET, Mounting, Chute Rotation Gear

Note: (Not a serviceable part. Order Ref. No. 0110)

$

$

Not available

0150

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0160

Murray 71046MA

NUT, Hex, Nylock, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

0170

Murray 880456YP

SCREW, Torx Truss Head, 1/4-20 x 7/8

$3.49

$

Usually ships in 2-12 days

0

0180

Murray 1931337SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

0190

Murray 880804YP

SCREW, Hi-Lo, 1/4 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0200

Murray 1931315SM

BOLT, Carriage, Short Neck, 1/4-20 x 1/2, G5
(Superseded to 703978)

$3.99

$

In Stock, Qty 20+

0

0210

Murray 1753477YP

STIFFENER, Chute Rotation

$14.99

$

Usually ships in 2-12 days

0

0300

Murray 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, only 3 left!

0

0370

Murray 1733601SM

DECAL, Hinge

$12.99

$

In Stock, only 1 left!

0
