1696076 - Simplicity Turbo Mounting Kit for 38" Deck Turbo, Mounting Kit Parts Diagram

Turbo Mounting Kit for 38" Deck

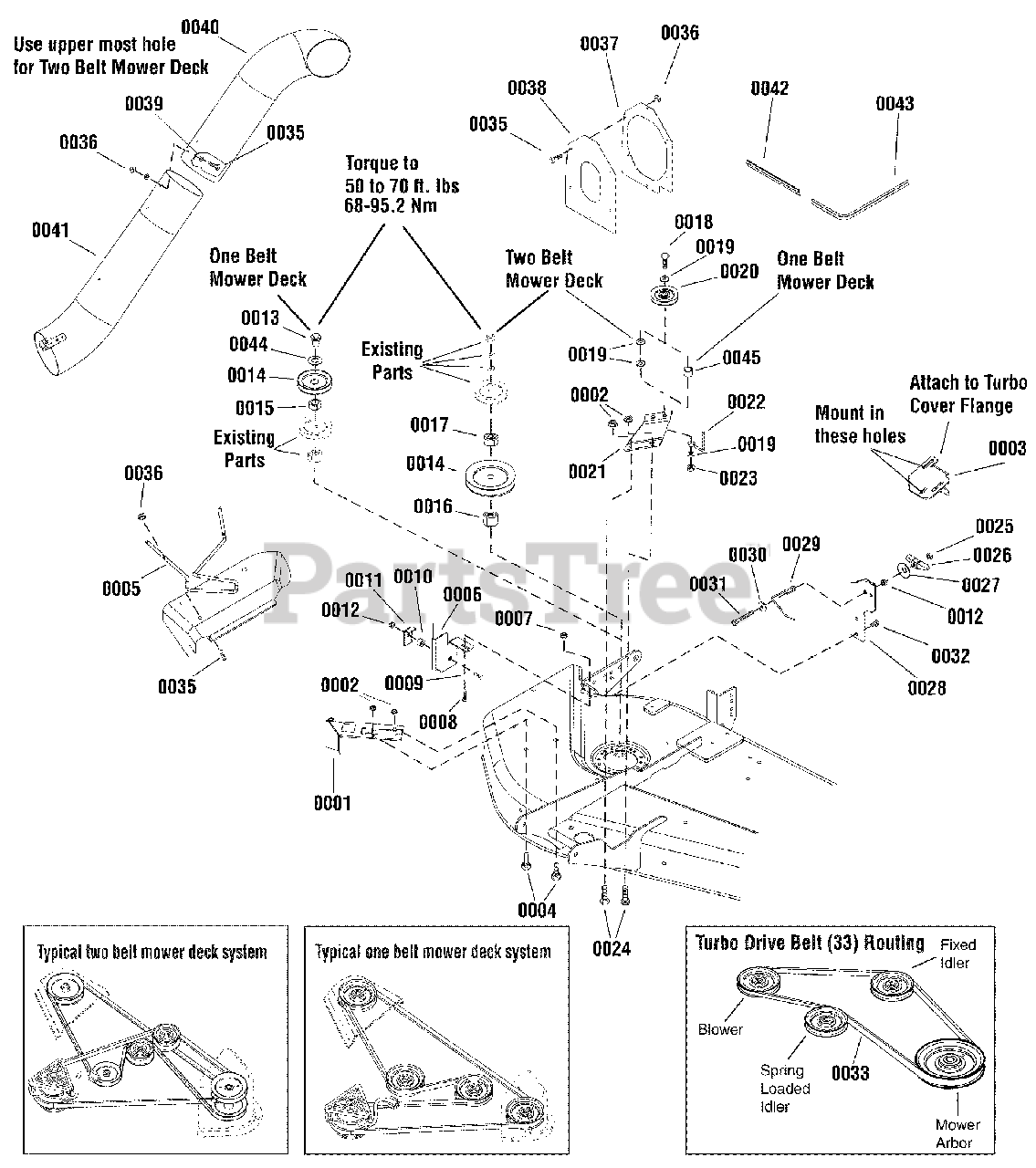

Turbo, Mounting Kit Parts Diagram

  • Title

0001

Simplicity 1722546A

PIVOT & BRACKET ASSEMBLY
(Superseded to 1722546ASM)

$216.99

$

Usually ships in 2-12 days

0

0002

Simplicity 1931277

NUT, Hex Flange 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0003

Simplicity 1733077A

LATCH
(Superseded to 1733077ASM)

$56.99

$

Usually ships in 2-12 days

0

0004

Simplicity 1931333

BOLT, Round Head, Short Neck 5/16-18 X 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0005

Simplicity 1718295

ROD
(Superseded to 1718295ASM)

$112.99

$

Usually ships in 2-12 days

0

0006

Simplicity 1733076A

DEFLECTOR
(Superseded to 1733076ASM)

$114.99

$

Usually ships in 2-12 days

0

0007

Simplicity 1960685

NUT, Hex 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0008

Snapper 1931317

BOLT, Round Head, Short Neck 1/4-20 X 3/4

$3.99

$

In Stock, only 3 left!

0

0009

Simplicity 1960223

BOLT, Round Head, Short Neck 5/16-18 X1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0010

Simplicity 1666294

SPACER
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

0011

Simplicity 1705308A

L BRACKET
(Superseded to 1705308ASM)

$33.99

$

Usually ships in 2-12 days

0

0012

Simplicity 1960636

NUT, Hex 5/16-18
(Superseded to 1960636SM)

$4.99

$

In Stock, only 1 left!

0

0013

Simplicity 1733078

NUT, Sleeve
(Superseded to 1733078SM)

$27.99

$

Usually ships in 2-12 days

0

0014

Simplicity 1713091

PULLEY, 5 O.D.
(Superseded to 1713091SM)

$23.99

$

In Stock, only 1 left!

0

0015

Simplicity 1713623

HUB, ( 47/64 Long- Regent)
(Superseded to 1713623SM)

$9.99

$

In Stock, only 1 left!

0

0016

Simplicity 1713621

HUB, ( 1-5/8 Long- Broadmoor)
(Superseded to 1713621SM)

$19.99

$

Usually ships in 2-12 days

0

0017

Simplicity 1713613

HUB, ( 1-1/4 Long- Broadmoor)
(Superseded to 1713613SM)

$15.99

$

In Stock, Qty 20+

0

0018

Simplicity 1923701

CAPSCREW, Hex Head 3/8-16 X 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0019

Simplicity 1924940

WASHER 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0020

Simplicity 1721134

PULLEY, 3 OD
(Superseded to 1721134SM)

$30.99

$

In Stock, Qty 20+

0

0021

Simplicity 1704768A

Z Bracket
(Superseded to 1704768ASM)

$13.99

$

Usually ships in 2-12 days

0

0022

Simplicity 2172845

BELT STOP
(Superseded to 2172845SM)

$11.99

$

Usually ships in 2-12 days

0

0023

Simplicity 1931211

NUT, Hex Flange 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0024

Simplicity 1923325

CAPSCREW, Hex Head 5/16-18 X 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

0025

Simplicity 1919438

NUT, Hex Lock 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

0026

Simplicity 720727

WINGNUT
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0027

Simplicity 1709256

WASHER, Cup
(Superseded to 1709256SM)

$5.99

$

In Stock, only 2 left!

0

0028

Simplicity 1724370A

BRACE
(Superseded to 1724370ASM)

$11.99

$

Usually ships in 2-12 days

0

0029

Simplicity 1705064

SPRING, Latch
(Superseded to 1705064SM)

$44.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1919381

WASHER 5/16
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

0031

Simplicity 1960318

CAPSCREW, Hex Head 5/16-18 X 2-1/2
(Superseded to 1960318SM)

$4.99

$

Usually ships in 2-12 days

0

0032

Simplicity 1930601

SCREW, Washer Head, Taptite 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0033

Simplicity 1737073

V-BELT, COG 47- 7/8
(Superseded to 1737073YP)

$31.99

$

In Stock, only 1 left!

0

0035

Simplicity 1960404

SCREW, Truss Head, Phillips 10-24 X 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0036

Simplicity 1933896

NUT, Hex Lock 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0037

Simplicity 1732735A

FLANGE, Seal
(Superseded to 1732735ASM)

$40.99

$

Usually ships in 2-12 days

0

0038

Simplicity 1733741

SEAL
(Superseded to 1733741SM)

$29.99

$

Usually ships in 2-12 days

0

0039

Simplicity 1910531

WASHER, Rivot
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1732800

ELBOW
(Superseded to 1732800SM)

$74.99

$

Usually ships in 2-12 days

0

0041

Simplicity 1719719

TUBE ASSY, Lower
(Superseded to 1719719SM)

$170.99

$

Usually ships in 2-12 days

0

0042

Simplicity 1717496

EDGING, Rubber, Thin
(Superseded to 1717496SM)

$19.99

$

Usually ships in 2-12 days

0

0043

Simplicity 1733579

EDGING, Rubber, thick
(Superseded to 1721175SM)

$39.99

$

Usually ships in 2-12 days

0

0044

Simplicity 1603592

WASHER, Bellville
(Superseded to 1603592SM)

$11.99

$

Usually ships in 2-12 days

0

0045

Simplicity 1667811

SPACER
(Superseded to 1667811SM)

$3.49

$

In Stock, Qty 20+

0
