1696073 - Murray 38" & 42" Clean Sweep Twin Bag Grass Catcher Twin Catcher Assembly 38/42" Parts Diagram

38" & 42" Clean Sweep Twin Bag Grass Catcher

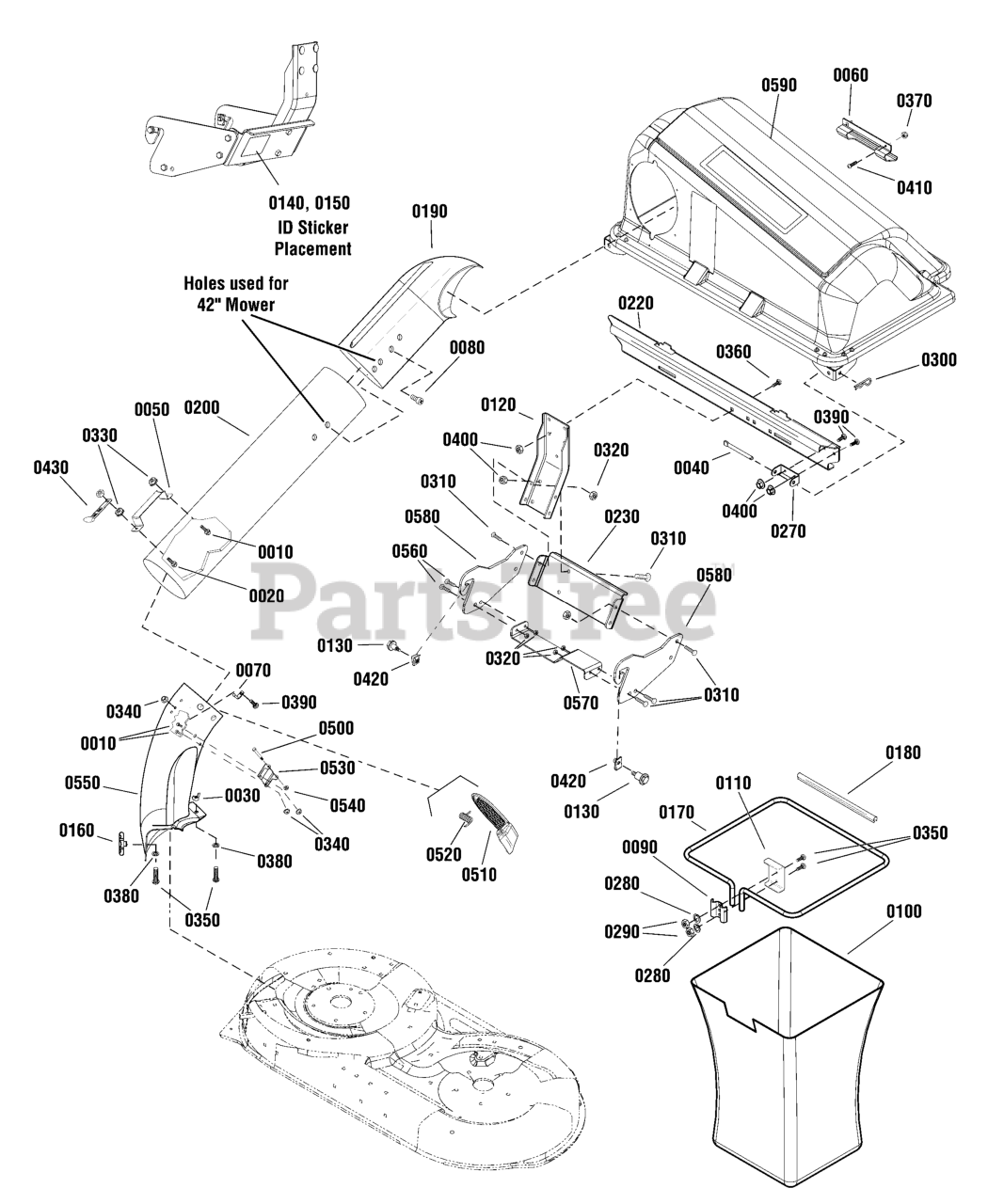

Twin Catcher Assembly 38/42" Parts Diagram

  • Title

0010

Murray 720074

SCREW, 25-20 x 1/2
(Superseded to 004X24MA)

$4.49

$

Usually ships in 2-12 days

0

0020

Murray 720076

SCREW, 25-20 x 1
(Superseded to 004X71MA)

$4.99

$

In Stock, only 4 left!

0

0030

Murray 720125

WINGNUT, 5/16-18
(Superseded to 703141)

$3.49

$

In Stock, only 3 left!

0

0040

Murray 720525

PIN, Cover Hinge
(Superseded to 054407ZMA)

$14.99

$

In Stock, only 1 left!

0

0050

Murray 720533

HANDLE, Transfer Tube
(Superseded to 720533FS)

$17.99

$

Usually ships in 2-12 days

0

0060

Murray 720537

HANDLE, Cover
(Superseded to 054537MA)

$18.99

$

Usually ships in 2-12 days

0

0070

Murray 720543

PIN, Latch
(Superseded to 054563MA)

$23.99

$

In Stock, only 2 left!

0

0080

Murray 722855

SCREW, 1/4 x 3/4
(Superseded to 26X239MA)

$4.49

$

In Stock, only 2 left!

0

0090

Murray 1672023

CLAMP 1/2
(Superseded to 1672023A)

$11.99

$

Usually ships in 2-12 days

0

0100

Murray 1703764

BAG, Grass
(Superseded to 5023290)

$193.99

$

Usually ships in 2-12 days

0

0110

Murray 1703807

HANGER, Grass Bag
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 2 left!

0

0120

Murray 1707526

SUPPORT, Upright
(Superseded to 1707526ASM)

$82.99

$

Usually ships in 2-12 days

0

0130

Murray 1728976

BOLT, Shoulder 5/16-18 x 1.62
(Superseded to 1728976SM)

$6.49

$

In Stock, only 2 left!

0

0140

Murray 1731389

MYLAR OVERLAY

$

$

Not available

0150

DECAL, ID Plate

$

$

Not available

0160

Murray 1733098

KNOB
(Superseded to 1733098SM)

$9.99

$

Usually ships in 2-12 days

0

0170

Murray 1733491

HOOP, Twin
(Superseded to 1733491SM)

$146.99

$

In Stock, only 2 left!

0

0180

Murray 1733709

EDGING
(Superseded to 1733709SM)

$16.99

$

In Stock, only 2 left!

0

0190

Murray 1733885

ELBOW, Upper Tube
(Superseded to 1733885SM)

$103.99

$

Usually ships in 2-12 days

0

0200

Murray 1734299

TUBE, Transfer
(Superseded to 1734299SM)

$140.99

$

In Stock, Qty 6

0

0220

Murray 1736026

CROSS SUPPORT, Twin
(Superseded to 1736026YP)

$153.99

$

Usually ships in 2-12 days

0

0230

Murray 1736028

BRACKET, Upright

$

$

Not available

0270

Murray 1736886

PIVOT, Hinge
(Superseded to 1736886BMYP)

$34.99

$

Usually ships in 2-12 days

0

0280

Murray 1917356

LOCKWASHER, Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0290

Murray 1917372

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0300

Murray 1918196

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

0310

Murray 1920415

CAPSCREW, Hex-Head 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

0320

Murray 1928352

NUT, Hex Flange 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

0330

Murray 1928372

NUT, Hex 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

0340

Murray 1930642

NUT, Hex Flange, Top-Lock 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

0350

Murray 1931333

BOLT, Carriage, Short Neck 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0360

Murray 1931350

BOLT, Carriage, Short Neck 3/8- 16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0370

Murray 1933896

NUT, Hex, Nylock 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0380

Murray 1933988

Nut, Push Pal
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0390

Murray 1960252

BOLT, Carriage, Short Neck 1/4-20 x 5/8
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0400

Murray 1960294

NUT, Hex Flange, Whiz Lock 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0410

Murray 1960404

SCREW, Truss-Head, Phillips 10-24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0420

Murray 1960717

NUT, Speed Lug 5/16-18
(Superseded to 1960717SM)

$6.49

$

Usually ships in 2-12 days

0

0430

Murray 2171600

STRAP, Hood
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

0500

Murray 7900011

CAPSCREW, Hex Head 1/4 X 4
(Superseded to 7900011MA)

$4.99

$

Usually ships in 2-12 days

0

0510

Murray 1752058

CHUTE, Cap

$

$

Not available

0520

Murray 722507

SPRING, Torsion
(Superseded to 166X38MA)

$4.99

$

In Stock, only 2 left!

0

0530

Murray 1752057

BRACKET, Chute, Cap

$

$

Not available

0540

Murray 1960694

NUT, Hex Flange 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0550

Murray 1752663

BOOT, Bagging Export

$

$

Not available

0560

Murray 1923683

SCREW, Hex, Washer-Head, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

0570

Murray 1752567

BRACKET, Hitch Support

$

$

Not available

0580

Murray 1752438

PLATE, Bagger Mount

$

$

Not available

0590

Murray 1752440

COVER ASSEMBLY, Twin

$

$

Not available
