1696059 - Champion 30" Snow Thrower, 14.5hp, Canada (2011) Headlight Group Parts Diagram

30" Snow Thrower, 14.5hp, Canada

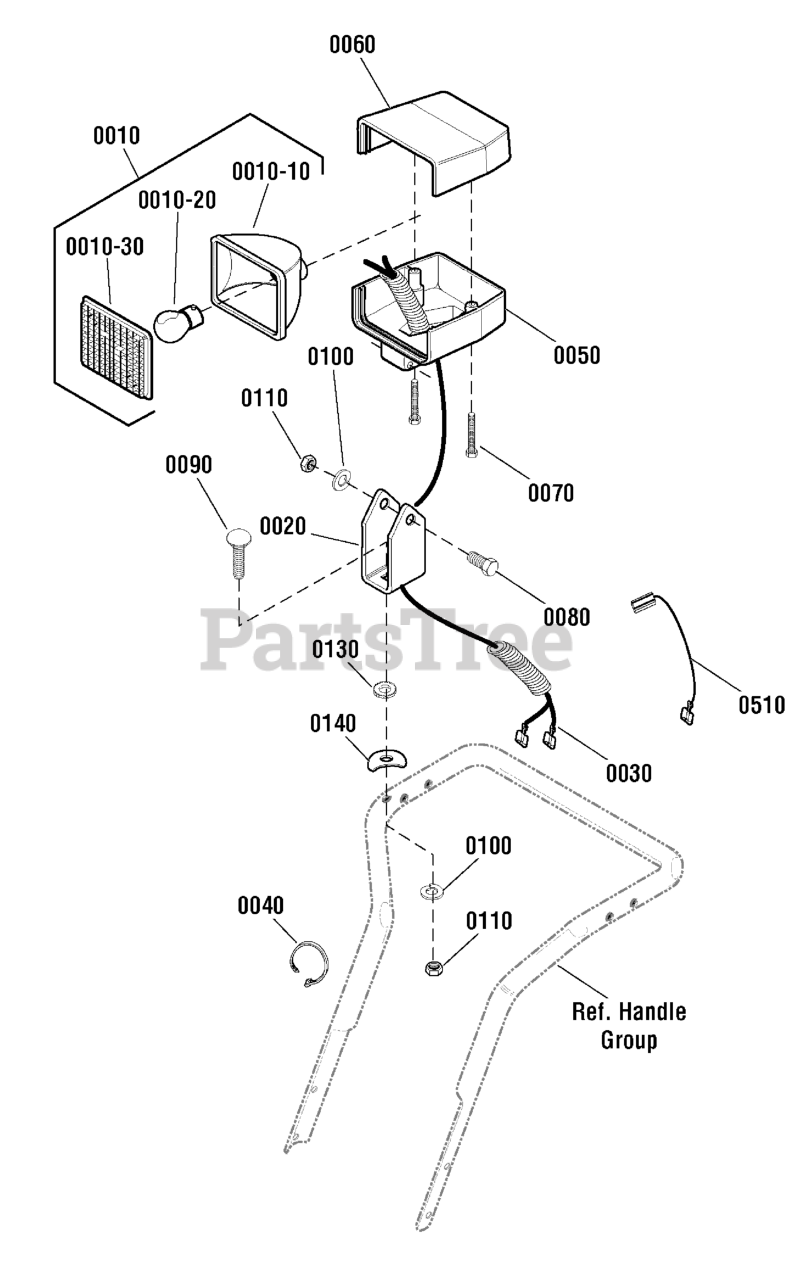

Headlight Group Parts Diagram

  • Title

0010

Murray 762343MA

LIGHT, Halogen

Note: (Incl. Ref. Nos. 0010-10, 0010-20 & 0010-30)

$69.99

$

Usually ships in 2-12 days

0

0010-10

DEFLECTOR, Light

Note: (Not a serviceable part)

$

$

Not available

0010-20

* BULB, Halogen, 800T/894 12V-C

Note: (Not a serviceable part)

$

$

Not available

0010-30

LENS, Light

Note: (Not a serviceable part)

$

$

Not available

0020

Murray 4029YZMA

BRACKET, Light Handle

$30.99

$

Usually ships in 2-12 days

0

0030

Murray 1738347YP

HARNESS, Wiring

Note: (Use on 11.5TP Models)

$23.99

$

Usually ships in 2-12 days

0

0030

Murray 1501455MA

HARNESS, Wiring

Note: (Use on 14.5TP Models)

$12.99

$

Usually ships in 2-12 days

0

0040

Murray 032618MA

CABLE TIE

$3.99

$

Usually ships in 2-12 days

0

0050

Murray 1501514MA

CASE, Headlight, Lower

$19.99

$

Usually ships in 2-12 days

0

0060

Murray 583490MA

CASE, Headlight, Upper

$11.99

$

Usually ships in 2-12 days

0

0070

Murray 307781MA

SCREW, Phillips Head, Plastite, # 8-16 x 1-3/4

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 235MA

CAPSCREW, Hex Head, 5/16-18 x 2

$4.49

$

Usually ships in 2-12 days

0

0090

Murray 002X88MA

BOLT, Carriage, 5/16-18 x 2

$3.49

$

In Stock, only 1 left!

0

0100

Murray 71060MA

WASHER, Splitlock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0110

Murray 15X144MA

NUT, Hex, 5/16-18

$3.99

$

In Stock, only 1 left!

0

0130

Murray 71061MA

LOCKWASHER, External Tooth, 5/16

$3.49

$

Usually ships in 2-12 days

0

0140

Murray 580527MA

WASHER, 5/16

$5.49

$

Usually ships in 2-12 days

0

0510

Murray 1735255YP

PIGTAIL

Note: (Use on 14.5TP Models)

$5.99

$

Usually ships in 2-12 days

0
