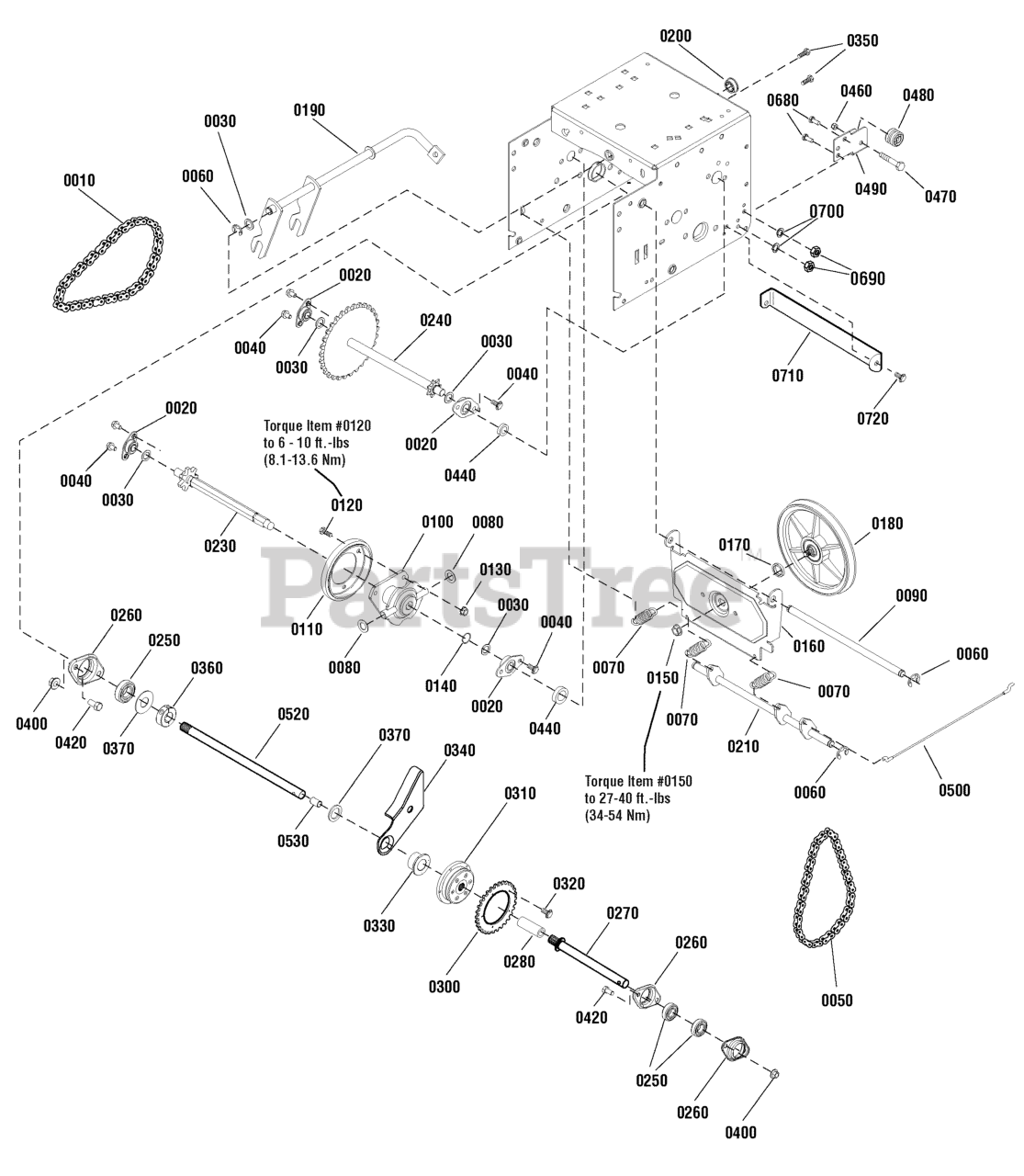

1696056 (CL 841650 S) - Canadiana 33" Snow Thrower, Canada (2011) Traction Drive Group Parts Diagram

33" Snow Thrower, Canada

Traction Drive Group Parts Diagram

  • Title

0010

Murray 579851MA

CHAIN, Roller, 19"

$21.99

$

In Stock, Qty 16

0

0020

Murray 334163MA

RETAINER & BUSHING ASSEMBLY

$11.99

$

In Stock, Qty 8

0

0030

Murray 579858MA

WASHER, Flat, 1/2

$4.49

$

In Stock, Qty 20+

0

0040

Murray 1924856SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0050

Murray 579868MA

CHAIN, Roller, 18"

$20.99

$

In Stock, Qty 17

0

0060

Murray 11X30MA

RETAINER, Ring, 7/16

$4.49

$

In Stock, Qty 12

0

0070

Murray 1736469YP

SPRING, Extension

$6.99

$

In Stock, Qty 20+

0

0080

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0090

Murray 1501092YZMA

AXLE, 7/16 Dia. Swing Plate, 10-1/2

$12.99

$

Usually ships in 2-12 days

0

0100

Murray 1739282YP

BEARING TRUNNION ASSEMBLY

$39.99

$

In Stock, Qty 5

0

0110

Murray 1501435MA

WHEEL, Friction, 4.3, Rubber

$27.99

$

In Stock, Qty 9

0

0120

Murray 1921959SM

CAPSCREW, Hex Head, 1/4-20 x 5/8, G5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

0130

Murray 1928372SM

NUT, Hex, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

0140

Murray 1733326SM

RING, Retaining, External, # 63

$4.49

$

In Stock, only 1 left!

0

0150

Murray 15X114MA

NUT, Flange Locking, 3/8-24

$4.49

$

Usually ships in 2-12 days

0

0160

Murray 1501057YZMA

PLATE, Swinging

$37.99

$

In Stock, only 1 left!

0

0170

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 10

0

0180

Murray 1501115MA

FRICTION PULLEY ASSEMBLY

$

$

Not available

0190

Murray 1501110YZMA

SPEED SELECTOR ASSEMBLY

$50.99

$

In Stock, only 2 left!

0

0200

Murray 579944MA

BEARING, Flange,1/2 ID x 7/8 OD

$15.99

$

Usually ships in 2-12 days

0

0210

Murray 1502084YZMA

SPRING LINK ASSEMBLY, Steerable

$19.99

$

Usually ships in 2-12 days

0

0230

Murray 1501630MA

SHAFT & SPROCKET ASSEMBLY

$32.99

$

Usually ships in 2-12 days

0

0240

Murray 1501652MA

SPROCKET, Set

$55.99

$

In Stock, only 1 left!

0

0250

Murray 53263MA

Bearing, BALL, 3/4 ID x 1-5/8 OD

$38.99

$

In Stock, only 2 left!

0

0260

Murray 1736396YP

RETAINER, Bearing, Flanged

$10.99

$

In Stock, Qty 6

0

0270

Murray 1502106MA

AXLE WASHER ASSEMBLY, LH

$

$

Not available

0280

Murray 1502024MA

PIN, Axle

$12.99

$

Usually ships in 2-12 days

0

0300

Murray 1501623MA

SPROCKET, Steer

$18.99

$

Usually ships in 2-12 days

0

0310

Murray 1501619MA

CLUTCH, Auto Lock, Steer

$

$

Not available

0320

Murray 352X3MA

CAPSCREW, Socket Head, #10-24 x 1/2

$3.99

$

In Stock, only 1 left!

0

0330

Murray 1501114MA

BEARING, Axle, D-Hole

$11.99

$

In Stock, Qty 20+

0

0340

Murray 1501618YZMA

BRACKET, Axle Support

$30.99

$

Usually ships in 2-12 days

0

0350

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1501620MA

COLLAR, Locking

$16.99

$

Usually ships in 2-12 days

0

0370

Murray 1960061SM

WASHER, 3/4

$7.99

$

Usually ships in 2-12 days

0

0400

Murray 1928352SM

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

0420

Murray 1921965SM

CAPSCREW, Hex Head, 3/8-16 x 3/4, G5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

0440

Murray 579863MA

BEARING, Ball

$14.99

$

In Stock, only 2 left!

0

0460

Murray 1920397SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0470

Murray 1922837SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0480

Murray 579860MA

SPOOL CABLE, Auger Control

$5.99

$

In Stock, Qty 10

0

0490

Murray 1750398YP

BRACKET, Cable Spool

$6.49

$

In Stock, only 2 left!

0

0500

Murray 1750403YP

CABLE, Front Drive, Lower

$8.49

$

In Stock, only 1 left!

0

0520

Murray 1502029MA

SHAFT, Axle, 3/4 Dia. 15-1/8, R.H.

$131.99

$

Usually ships in 2-12 days

0

0530

Murray 1501734MA

BUSHING

$10.99

$

Usually ships in 2-12 days

0

0680

Murray 001X38MA

BOLT, Hex, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 18

0

0690

Murray 7091576SM

NUT, Hex, 1/4-20, GR5
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

0700

Murray 1916964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

0710

Murray 1502030YZMA

BRACKET, Support
(Superseded to 704216)

$9.49

$

Usually ships in 2-12 days

0

0720

Murray 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0
