1696056 (CL 841650 S) - Canadiana 33" Snow Thrower, Canada (2011) Engine & Frame Group Parts Diagram

33" Snow Thrower, Canada

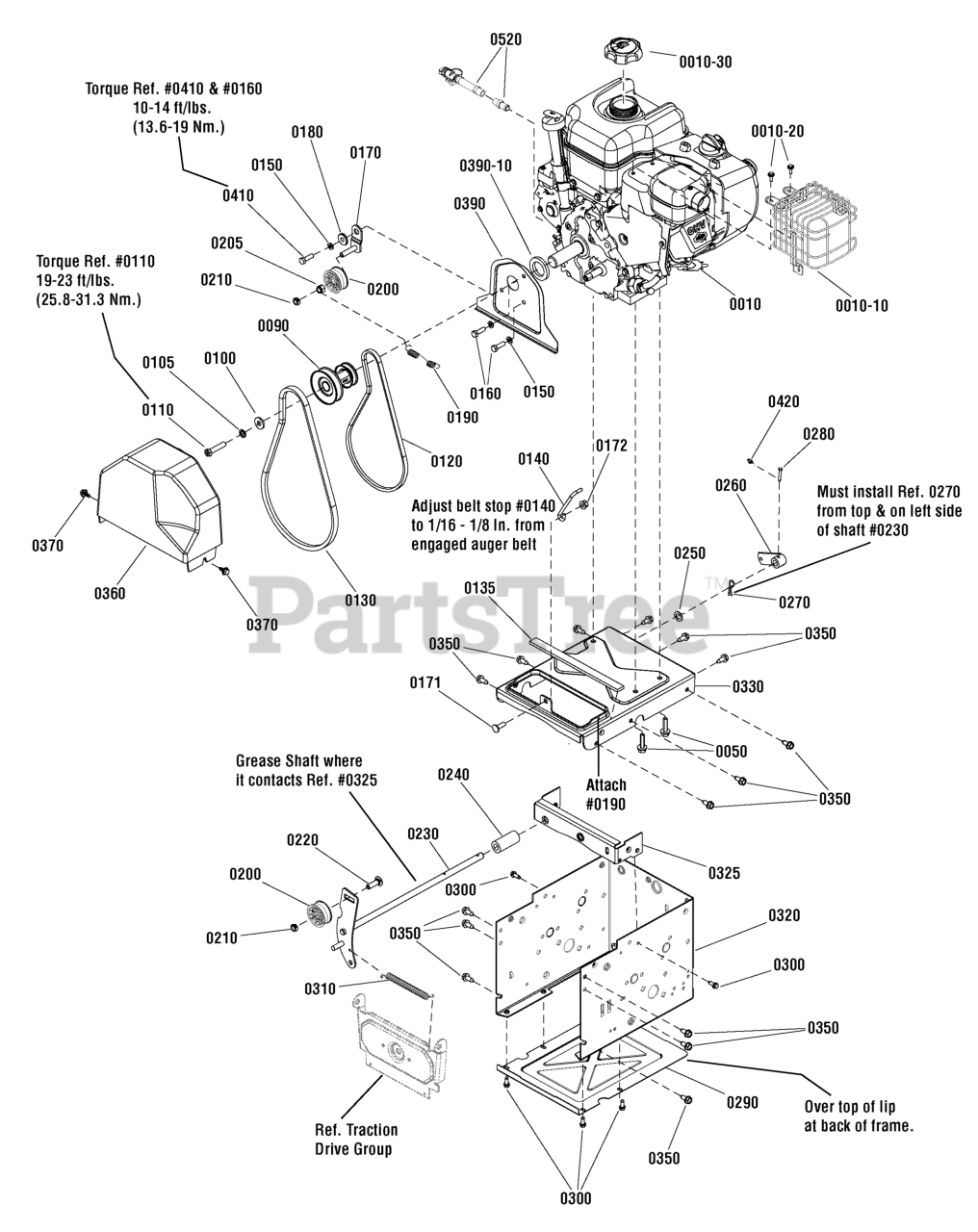

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 21M314-0129-H1

* ENGINE, 16.5TP Briggs & Stratton

$

$

Not available

0010-10

Murray 796384

GUARD, Muffler

$83.99

$

Usually ships in 2-12 days

0

0010-20

Murray 699234

SCREW, Muffler Guard

$3.99

$

In Stock, only 2 left!

0

0010-30

Murray 698109

CAP, Fuel

$

$

Not available

0050

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0090

Murray 1739514YP

PULLEY ASSEMBLY

$42.99

$

In Stock, only 2 left!

0

0100

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0105

Murray 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

0110

Murray 2860768YP

CAPSCREW, Hex Head, 3/8-24 x 1-3/4
(Superseded to 703132)

$3.99

$

Usually ships in 2-12 days

0

0120

Murray 1733324SM

V-BELT, Traction Drive, 3L 33.13

$19.99

$

In Stock, Qty 20+

0

0130

Murray 585416MA

BELT, Auger, V4L 38.10 MF 05-10

$22.99

$

In Stock, Qty 20+

0

0135

Murray 1750314YP

SEAL, Strip

$8.99

$

Usually ships in 2-12 days

0

0140

Murray 1737377YP

STOP, Belt

$11.99

$

In Stock, only 1 left!

0

0150

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Murray 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5

$3.99

$

Usually ships in 2-12 days

0

0170

Murray 1739846YP

BRACKET, Idler

$8.99

$

Usually ships in 2-12 days

0

0171

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0172

Murray 1960684SM

NUT, Hex KEPS, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0

0190

Murray 165X164MA

SPRING, Extension, Idler

$7.49

$

In Stock, only 3 left!

0

0200

Murray 1502120MA

IDLER

$21.99

$

In Stock, Qty 6

0

0205

Murray 7091299SM

NUT, Hex Nylock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0210

Murray 1960251SM

NUT, Hex Centerlock, Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0220

Murray 585781MA

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2, G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 1739577YP

IDLER, Auger

$60.99

$

Usually ships in 2-12 days

0

0240

Murray 1739964YP

SPACER, Auger Bracket

$9.49

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

ARM, Control

$20.99

$

In Stock, only 3 left!

0

0270

Murray 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

0290

Murray 1737221AYP

PANEL, Bottom
(Superseded to 1737221BMYP)

$43.99

$

Usually ships in 2-12 days

0

0300

Murray 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0310

Murray 165X159MA

SPRING, Extension, Auger, 5"

$6.99

$

In Stock, Qty 9

0

0320

Murray 1739109BNYP

FRAME

$119.99

$

Usually ships in 2-12 days

0

0325

Murray 1739093AYP

ANGLE, Auger & Traction Rod Mounting
(Superseded to 1739093BMYP)

$19.99

$

Usually ships in 2-12 days

0

0330

Murray 1739449BNYP

PLATE, Engine

$69.99

$

Usually ships in 2-12 days

0

0350

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1750551YP

COVER, Belt

$26.99

$

Usually ships in 2-12 days

0

0370

Murray 1751355YP

SCREW, Hex Washer Head, Tap, SEMS, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0390

Murray 1733868ASM

PLATE, Seal
(Superseded to 1733868BMYP)

$13.99

$

In Stock, only 1 left!

0

0390-10

Murray 1750185YP

SEAL, Foam

$6.99

$

Usually ships in 2-12 days

0

0410

Murray 910828MA

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0420

Murray 7023590SM

PIN, Cotter, Self Locking, 1/4

$3.99

$

In Stock, Qty 20+

0

0520

Murray 798980

OIL DRAIN ASSEMBLY

$

$

Not available
