1696055-01 (CM 741450 H) - Canadiana 29" Snow Thrower, Canada (2012) Wheels & Tires Group Parts Diagram

29" Snow Thrower, Canada

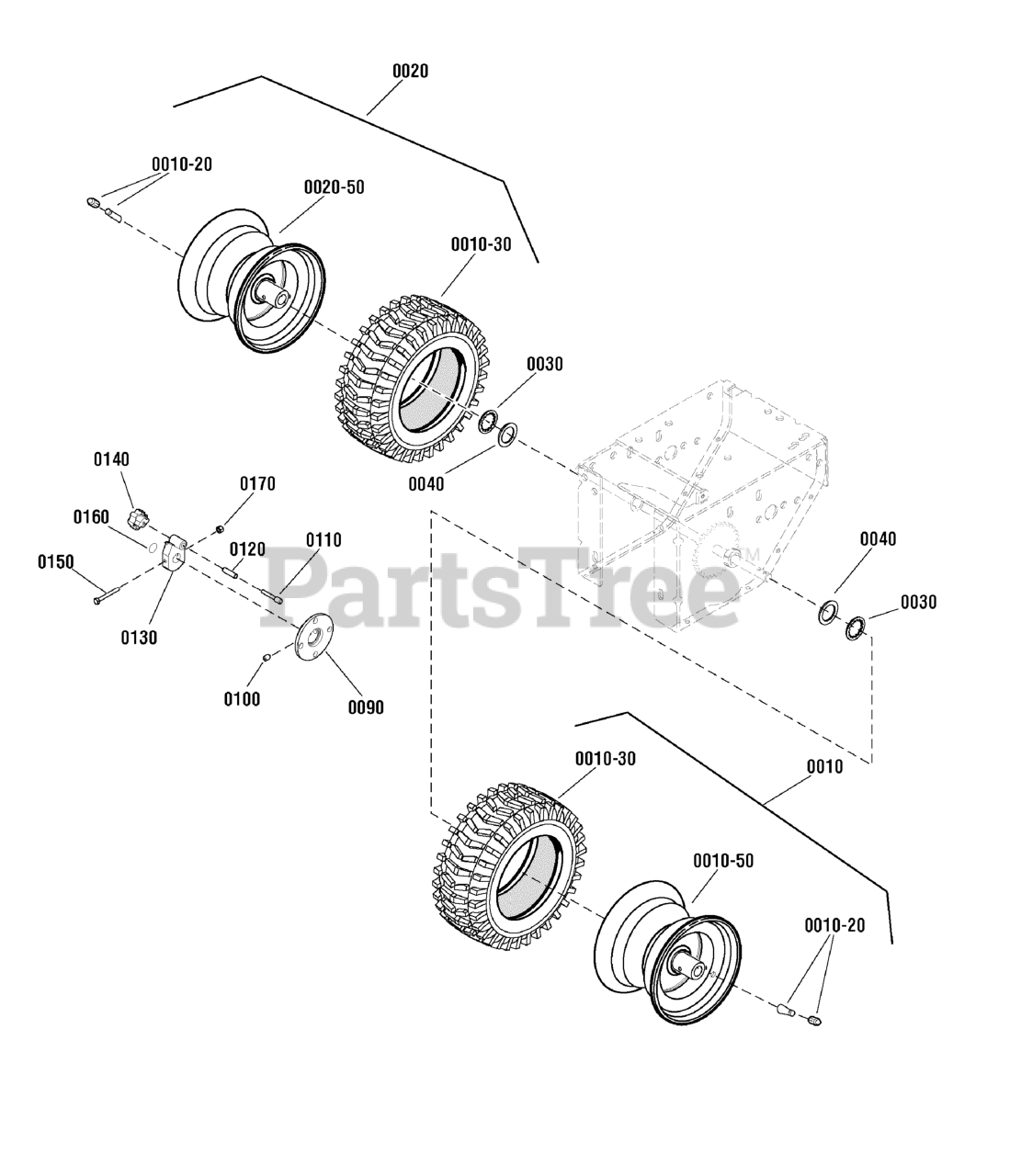

Wheels & Tires Group Parts Diagram

  • Title

0010

Murray 1751296YP

WHEEL ASSEMBLY, 16 x 4.8 - 8, L.H.

Note: (Includes Ref. No. 0010-20, 0010-30 & 0010-50)

$153.99

$

Usually ships in 2-12 days

0

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0010-30

Murray 1751298YP

TIRE, 4.80 - 8

$107.99

$

Usually ships in 2-12 days

0

0010-50

*RIM, L.H.

$

$

Not available

0020

Murray 1751297YP

WHEEL ASSEMBLY, 16 x 4.8 - 8, R.H.

Note: (Includes Ref. No. 0010-20, 0010-30 & 0020-50)

$170.99

$

Usually ships in 2-12 days

0

0020-50

*RIM, R.H.

$

$

Not available

0030

Murray 1657528SM

RING, Retaining, Self Lock, 3/4

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 20+

0

0090

Murray 1501032EMA

DISC, Wheel Lock

$32.99

$

Usually ships in 2-12 days

0

0100

Murray 2001066MA

SCREW, .38-16x0.50 HEX.18

$5.49

$

In Stock, Qty 20+

0

0110

Murray 1501856YZMA

PIN, Wheel Lock

$15.99

$

In Stock, Qty 14

0

0120

Murray 164X34MA

SPRING, Compression

$5.99

$

In Stock, Qty 19

0

0130

Murray 1501857MA

HUB, Wheel Lock

$34.99

$

In Stock, Qty 14

0

0140

Murray 1501855MA

KNOB, Wheel Lock

$13.99

$

In Stock, Qty 16

0

0150

Murray 73839MA

SCREW, .25-20 X 2.25 HHC GR8

$5.49

$

In Stock, only 4 left!

0

0160

Murray 48X5600MA

DECAL, Wheel Lock Pictorial

$14.99

$

Usually ships in 2-12 days

0

0170

Murray 1920397SM

NUT, Hex Lock, ESNA LIGHT 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
