1695969 - Snapper 42" Snow Thrower Attachment Spout Group (2987378) Parts Diagram

42" Snow Thrower Attachment

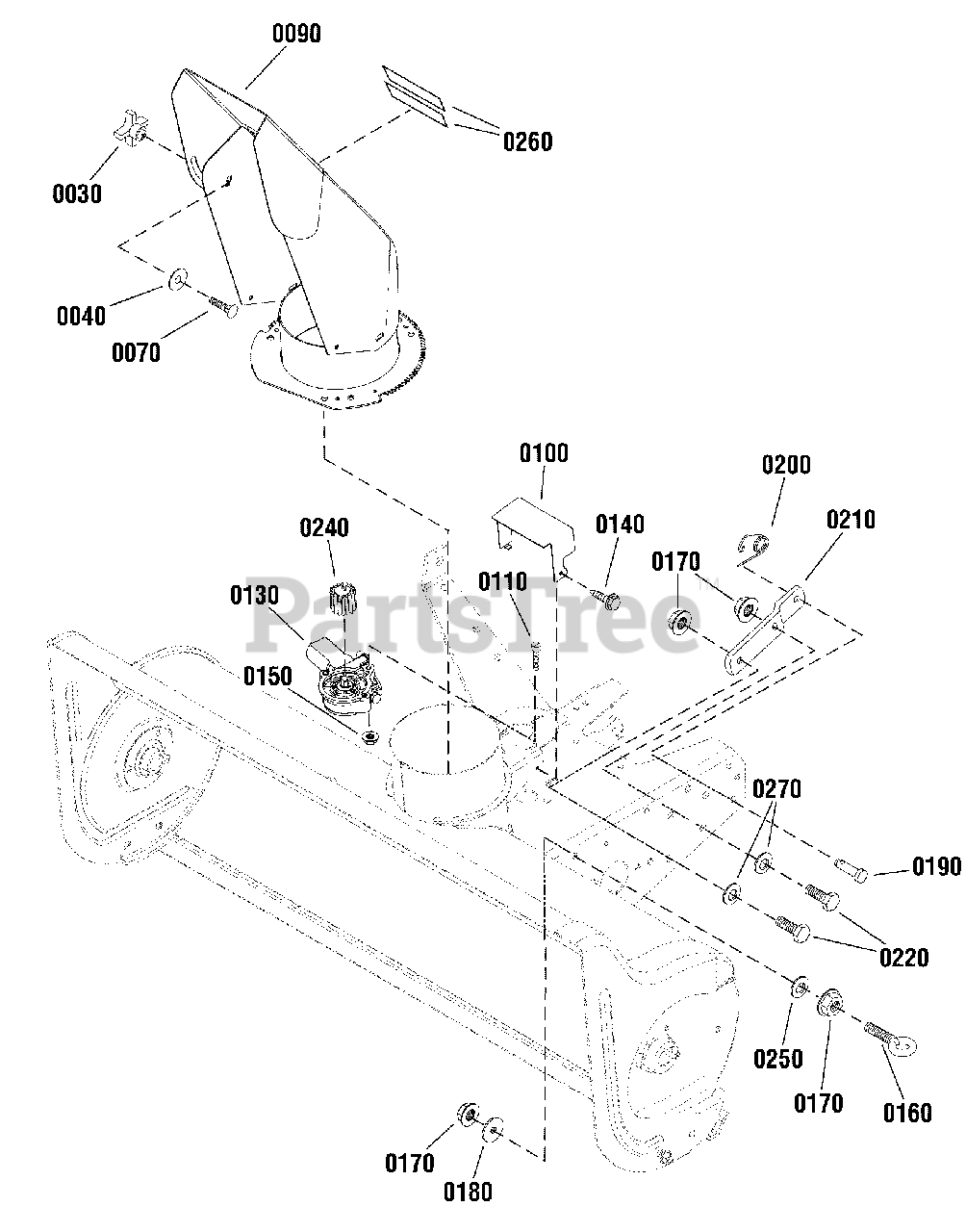

Spout Group (2987378) Parts Diagram

  • Title

0030

Snapper 1670578SM

KNOB, 5/16 Internal Thread

$13.99

$

Usually ships in 2-12 days

0

0040

Snapper 2860210SM

WASHER, Nylon

$4.49

$

In Stock, only 2 left!

0

0070

Snapper 703185

BOLT, Carriage, 5/16 - 18 x 3/4

$3.49

$

In Stock, Qty 12

0

0090

Snapper 1736482AYP

CHUTE ASSEMBLY

$512.99

$

Usually ships in 2-12 days

0

0100

Snapper 1733934ASM

GEAR COVER

$

$

Not available

0110

Snapper 2860604SM

SCREW, 10 - 24

$4.49

$

Usually ships in 2-12 days

0

0130

Snapper 1728965SM

ELECTRIC MOTOR

$176.99

$

In Stock, Qty 8

0

0140

Snapper 703583

SCREW, Taptite, 1/4 - 20 x 3/8

$4.99

$

In Stock, Qty 20+

0

0150

Snapper 703917

NUT, 10 - 24

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 1733143SM

EYEBOLT, 3/8 - 16

$83.99

$

Usually ships in 2-12 days

0

0170

Snapper 703793

NUT, .36 - 16

$4.49

$

In Stock, only 3 left!

0

0180

Snapper 703591

WASHER, 3/8 x 1-1/2 x 1/8

$5.49

$

In Stock, Qty 20+

0

0190

Snapper 2156306SM

PIN, Clevis, 3/8

$7.49

$

In Stock, Qty 14

0

0200

Snapper 703852

PIN, Retainer

$4.49

$

In Stock, Qty 20+

0

0210

Snapper 2177565ASM

CLIP FRAME

$13.99

$

In Stock, only 2 left!

0

0220

Snapper 703407

BOLT, 3/8 - 16 x 1-1/2

$11.99

$

In Stock, Qty 7

0

0240

Snapper 1728967SM

PINION GEAR

$17.99

$

In Stock, only 4 left!

0

0250

Snapper 704128

WASHER, Plain, .41 x 1 x 1/8

$4.99

$

In Stock, Qty 9

0

0260

Snapper 1733600SM

DECAL, Hinge

$11.99

$

Usually ships in 2-12 days

0

0270

Snapper 703878

WASHER, Flat

$3.99

$

In Stock, Qty 20+

0
