1695969 - Simplicity 42" Snow Thrower Attachment Body & Rotor Group Parts Diagram

42" Snow Thrower Attachment

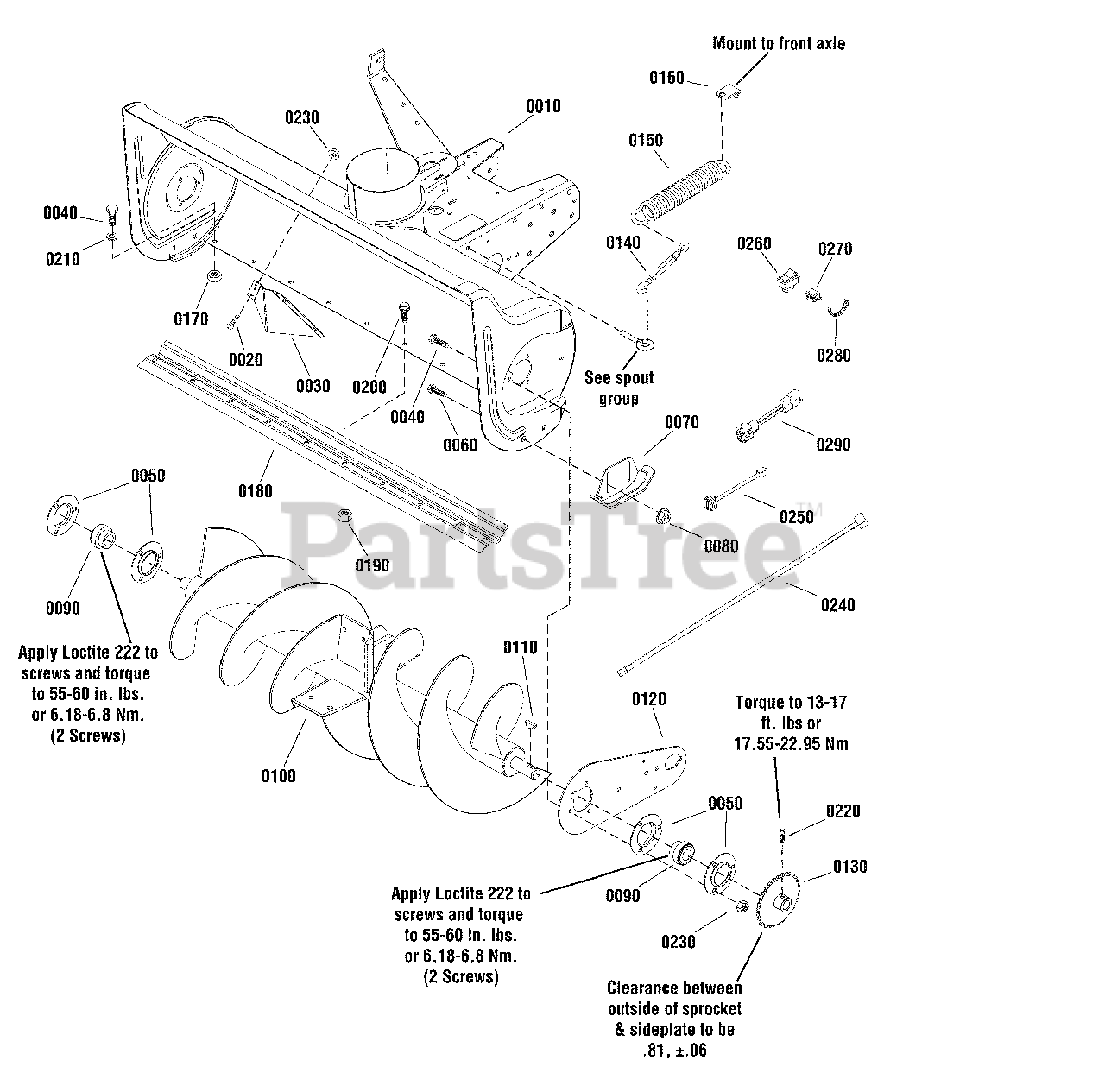

Body & Rotor Group Parts Diagram

  • Title

0010

Simplicity 1732806A

BODY & FRAME ASSEMBLY, 42"
(Superseded to 1732806ASM)

$

$

Not available

0020

Simplicity 1925205

CAPSCREW, Hex Head, 5/16 - 18 x 5/8, G5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

0030

Simplicity 2106774A

DEFLECTOR
(Superseded to 2106774ASM)

$29.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1921332

CAPSCREW, Hex Head, 5/16 - 18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

0050

Simplicity 2172278A

FLANGE, Bearing
(Superseded to 2172278ASM)

$11.99

$

In Stock, only 4 left!

0

0060

Simplicity 1960711

BOLT, Carriage, .38 - 16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 1713424A

SKID ASSEMBLY, with Wear Strip
(Superseded to 1713424ASM)

$54.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1960687

NUT, Hex ESNA Flange, .38 - 16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0090

Simplicity 1733105

BEARING
(Superseded to 1733105SM)

$57.99

$

In Stock, Qty 18

0

0100

Simplicity 1721840A

ROTOR ASSEMBLY, 42"
(Superseded to 1721840ASM)

$817.99

$

In Stock, only 1 left!

0

0110

Simplicity 2151040

KEY
(Superseded to 2151040SM)

$9.49

$

In Stock, only 2 left!

0

0120

Simplicity 1676632A

PLATE, Side
(Superseded to 1676632ASM)

$44.99

$

Usually ships in 2-12 days

0

0130

Simplicity 2106653

SPROCKET, Rotor
(Superseded to 2106653SM)

$98.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1733145

TURNBUCKLE, 5/16 - 19 x 9-1/4
(Superseded to 1733145SM)

$56.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1675232

SPRING, Extension
(Superseded to 1675232SM)

$20.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1732992A

CLIP, Spring
(Superseded to 1732992ASM)

$16.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1923362

NUT, Hex Centerlock, 5/16 - 18
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

0180

Simplicity 2106746A

BLADE, Scraper, 42"
(Superseded to 2106746ASM)

$158.99

$

In Stock, only 3 left!

0

0190

Simplicity 1923358

NUT, Hex Centerlock, 1/4 - 20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0200

Simplicity 1921959

CAPSCREW, Hex Head
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 10

0

0210

Simplicity 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0220

Simplicity 1928721

SCREW, Set, 5/16 - 18 x 1/2
(Superseded to 1928721SM)

$4.99

$

In Stock, only 2 left!

0

0230

Simplicity 1931277

NUT, Hex Whiz Lock Flange, 5/16 - 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0240

Simplicity 1733262

HARNESS, Wiring Spout Rotate, 42"
(Superseded to 1733262SM)

$33.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1733276

HARNESS, Wiring Motor/Trailer, 42"
(Superseded to 1733276SM)

$40.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1724210

SWITCH, Electric Lift Rocker
(Superseded to 1724210SM)

$54.99

$

In Stock, only 1 left!

0

0270

Simplicity 2172434

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

0280

Simplicity 2825094

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0290

Simplicity 1751630

HARNESS, Spout Rotator to Tractor
(Superseded to 1751630YP)

$32.99

$

Usually ships in 2-12 days

0
