1695969 - Murray 42" Snow Thrower Attachment Drive Group Parts Diagram

42" Snow Thrower Attachment

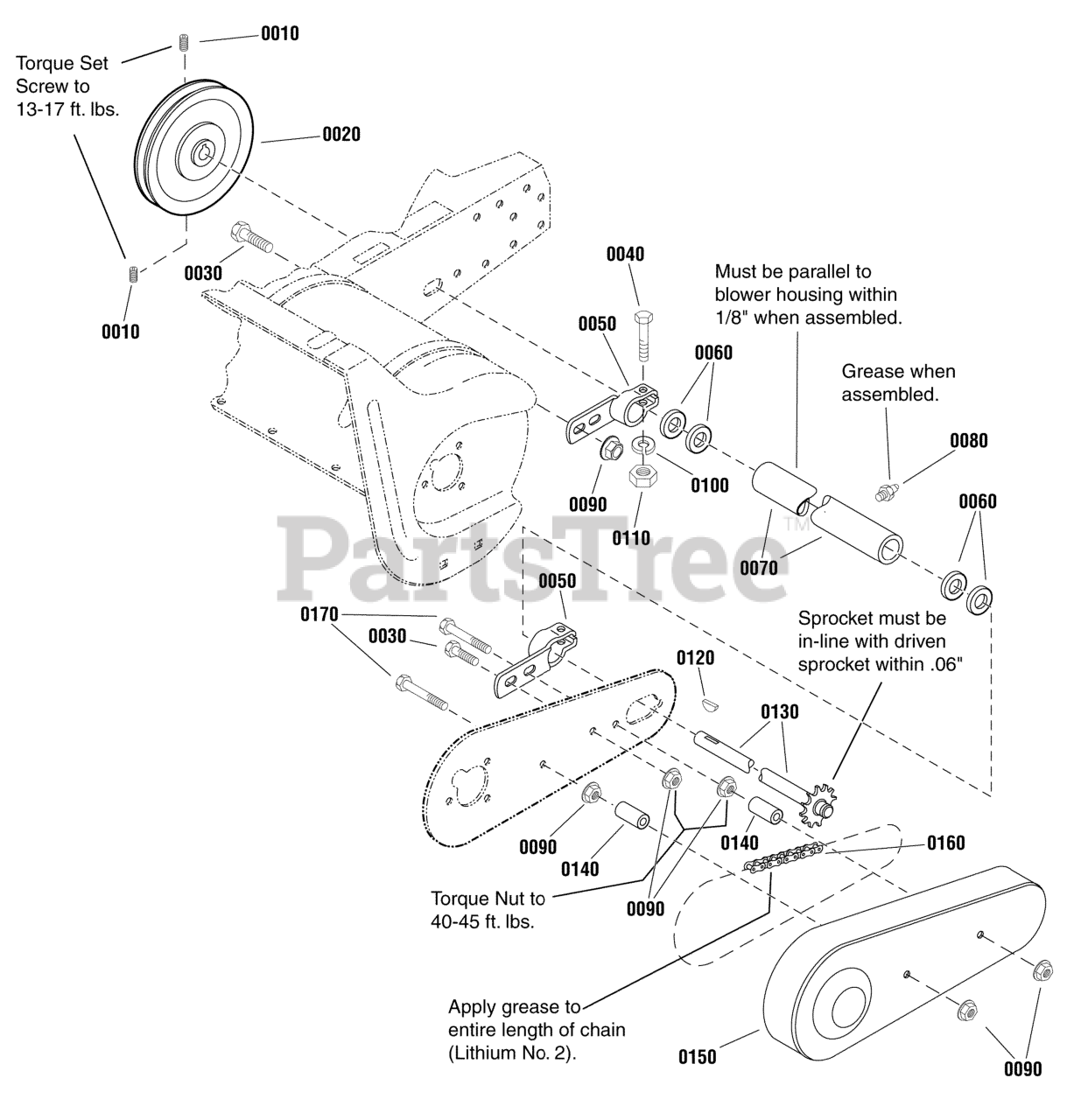

Drive Group Parts Diagram

  • Title

0010

SCREW, Set Square Head, 16 - 18 x 5/8, G8

$

$

Not available

0020

Murray 2171248

PULLEY, 7 O.D. 3/4 x 7/8 with Hub
(Superseded to 2171248SM)

$103.99

$

Usually ships in 2-12 days

0

0030

Murray 1934654

SCREW, Hex Whiz Lock Flange, 3/8 - 16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

0040

Murray 1922127

CAPSCREW, Hex Head, 5/16 - 18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0050

Murray 1666145A

CLAMP, Housing, 1-1/4 DIA Shaft
(Superseded to 1666145ASM)

$38.99

$

Usually ships in 2-12 days

0

0060

Murray 1729259

WASHER
(Superseded to 1729259SM)

$5.99

$

In Stock, Qty 7

0

0070

Murray 1650955

HOUSING ASSEMBLY, with Bearings
(Superseded to 1650955SM)

$164.99

$

Usually ships in 2-12 days

0

0080

Murray 2821133

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0090

Murray 1928352

LOCKNUT, Flange
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0100

Murray 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0110

Murray 1917372

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0120

Murray 2805123

KEY, Woodruff, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

0130

Murray 2106757

SHAFT & SPROCKET ASSEMBLY, Snow
(Superseded to 2106757SM)

$240.99

$

Usually ships in 2-12 days

0

0140

Murray 1669105A

SPACER
(Superseded to 1669105SM)

$13.99

$

In Stock, only 2 left!

0

0150

Murray 1676738A

CHAIN, Guard
(Superseded to 1676738ASM)

$67.99

$

Usually ships in 2-12 days

0

0160

Murray 2171242

CHAIN, Auger Drive, #40, 32" Long, 64 Pitch
(Superseded to 2171242SM)

$66.99

$

Usually ships in 2-12 days

0

0170

Murray 1913709

CAPSCREW, .38 - 13 x 3
(Superseded to 1913709SM)

$4.99

$

Usually ships in 2-12 days

0
