1695967 - Murray 42" Mower Deck (2011) 42" Mower Deck - Support Group Parts Diagram

42" Mower Deck

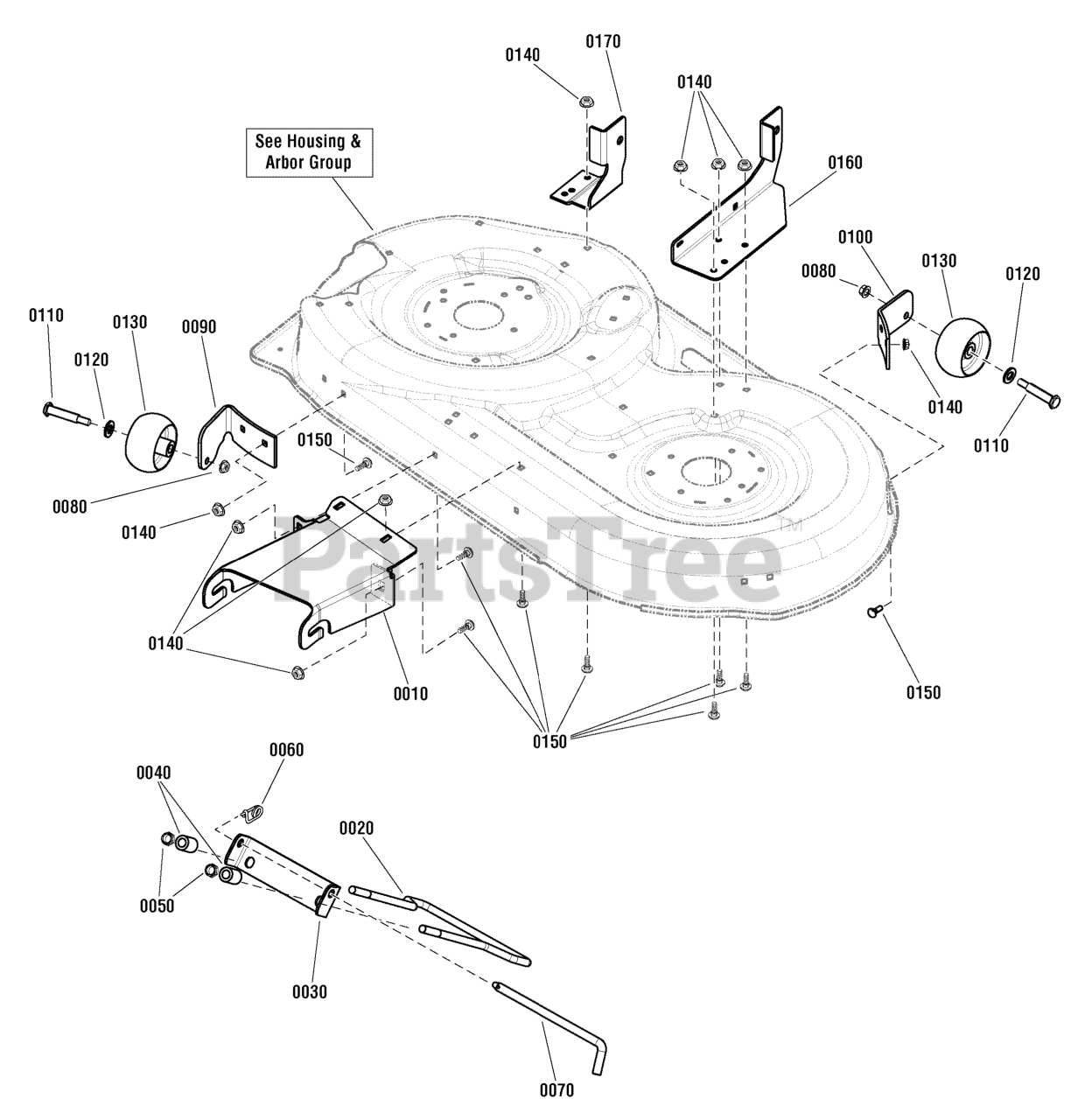

42" Mower Deck - Support Group Parts Diagram

  • Title

0010

Murray 1731966BMYP

HITCH, Front

$49.99

$

Usually ships in 2-12 days

0

0020

Murray 1730097SM

ROD, Bail

$43.99

$

Usually ships in 2-12 days

0

0030

Murray 1730221ASM

HANGER, Front

$12.99

$

In Stock, only 2 left!

0

0040

Murray 1679166SM

SPACER, 1/2 x 7/8 x 1 3/16

$7.49

$

In Stock, only 2 left!

0

0050

Murray 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, Qty 18

0

0060

Murray 2176012SM

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0070

Murray 1731414SM

ROD, Latch

$14.99

$

Usually ships in 2-12 days

0

0080

Murray 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0090

Murray 1731402ASM

SUPPORT, Gauge Wheel, RH

$14.99

$

In Stock, only 1 left!

0

0100

Murray 1731403ASM

SUPPORT, Gauge Wheel, LH

$14.99

$

In Stock, only 1 left!

0

0110

Murray 2108765SM

BOLT, Wheel, 3/8-16 x 2-3/4

$6.49

$

In Stock, Qty 20+

0

0120

Murray 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0130

Murray 1714760SM

WHEEL

$6.49

$

In Stock, Qty 20+

0

0140

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0160

Murray 1730071BMYP

SUPPORT, Mower, LH
(Superseded to 1753662BMYP)

$40.99

$

Usually ships in 2-12 days

0

0170

Murray 1730072BMYP

SUPPORT, Mower, RH
(Superseded to 1753663BMYP)

$15.99

$

In Stock, only 1 left!

0
