1695967 - Murray 42" Mower Deck (2011) 42" Mower Deck - Clutch Group Parts Diagram

42" Mower Deck

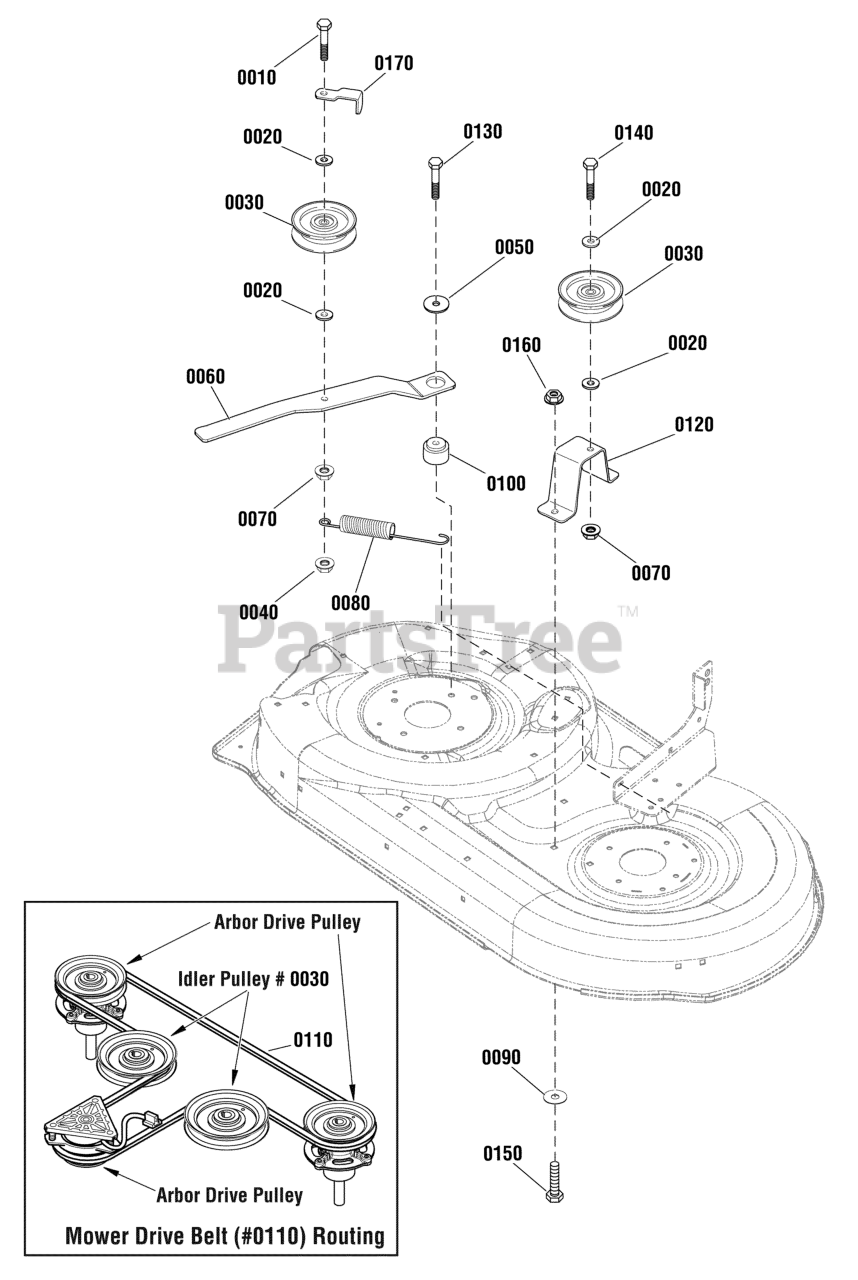

42" Mower Deck - Clutch Group Parts Diagram

  • Title

0010

Murray 1922130

CAPSCREW, Hex Head, 3/8-16 x 2-1/4, G5
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

0020

Murray 1922755

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0030

Murray 7018574

IDLER, Flat, 4.12
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

0040

Murray 1930645

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0050

Murray 1924356

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0060

Murray 1731944A

ARM, Idler
(Superseded to 1731944ASM)

$23.99

$

In Stock, Qty 15

0

0070

Murray 1931211

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0080

Murray 1731311

SPRING, Extension, 7-3/4"
(Superseded to 1731311SM)

$16.99

$

In Stock, only 1 left!

0

0090

Murray 1933468

WASHER, 5/16
(Superseded to 1933468SM)

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 1729007

SPACER, 3/8 ID x 1-1/2 OD x 1"
(Superseded to 1729007SM)

$11.99

$

In Stock, Qty 20+

0

0110

Murray 1732955

V-BELT, A-Wedge, HA, 94.45 LG
(Superseded to 1732955SM)

$56.99

$

In Stock, Qty 20+

0

0120

Murray 1731911A

SUPPORT, Idler
(Superseded to 1731911ASM)

$15.99

$

In Stock, only 1 left!

0

0130

Murray 2860361

SCREW, Hex Washer Head, Taptite, 3/8-16 x 2
(Superseded to 2860361SM)

$6.49

$

In Stock, only 1 left!

0

0140

Murray 1921971

CAPSCREW, Hex Head, 3/8-16 x 1-3/4, G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0150

Murray 1923325

CAPSCREW, Hex Head, 5/16-18 x 7/8, G5
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

0160

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0170

Murray 1732884A

GUARD, Spring
(Superseded to 1732884ASM)

$15.99

$

In Stock, only 1 left!

0
