1695965 - Murray Rear Attachment Kit (Non Suspension) Sleeve Hitch Assembly (1695965) Parts Diagram

Rear Attachment Kit (Non Suspension)

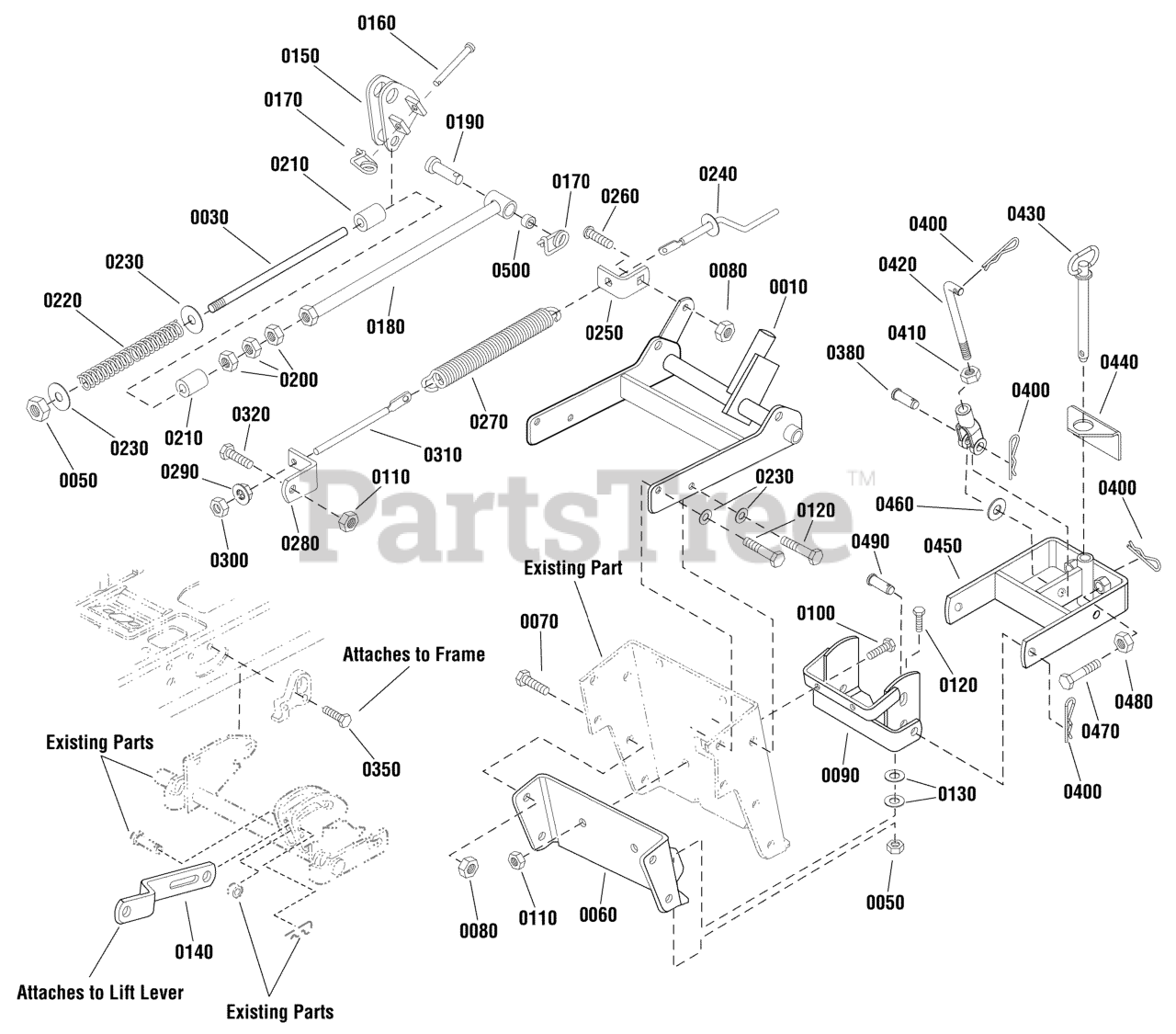

Sleeve Hitch Assembly (1695965) Parts Diagram

  • Title

0010

Murray 1723107A

HITCH ASSEMBLY
(Superseded to 1723107ASM)

$347.99

$

Usually ships in 2-12 days

0

0030

Murray 1723836

ROD, 1/2 -3/4 x .44
(Superseded to 1723836SM)

$36.99

$

Usually ships in 2-12 days

0

0050

Murray 1960355

NUT, Hex Lock ESNA, 1/2-13
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

0060

Murray 1722608A

HITCH SUPPORT
(Superseded to 1722608ASM)

$84.99

$

Usually ships in 2-12 days

0

0070

Murray 1921210

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

0080

Murray 1919439

NUT, Hex Lock ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0090

Murray 1707470A

HITCH ASSEMBLY BRACKET
(Superseded to 1707470ASM)

$205.99

$

Usually ships in 2-12 days

0

0100

Murray 1921977

CAPSCREW, Hex Head, 1/2-13 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 10

0

0110

Murray 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

0120

Murray 1920328

CAPSCREW, Hex Head, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

0130

Murray 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0140

Murray 1723795A

BAR, Lift Link
(Superseded to 1723795ASM)

$16.99

$

Usually ships in 2-12 days

0

0150

Murray 1723790A

LIFT LEVER ASSEMBLY
(Superseded to 1723790ASM)

$102.99

$

Usually ships in 2-12 days

0

0160

Murray 2105249

PIN, Round Head Drilled, 3/8 x 2-3/8
(Superseded to 2105249SM)

$16.99

$

Usually ships in 2-12 days

0

0170

Murray 2176012

RETAINER, Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0180

Murray 1724358A

LIFT ROD ASSEMBLY
(Superseded to 1724358ASM)

$189.99

$

Usually ships in 2-12 days

0

0190

Murray 1960277

PIN, Yoke, Drilled, 5/8 x 1-13/16
(Superseded to 1960277SM)

$11.99

$

Usually ships in 2-12 days

0

0200

Murray 1916951

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

0210

Murray 1668662

SPACER, .52 x .738 x 1.27
(Superseded to 1668662SM)

$32.99

$

Usually ships in 2-12 days

0

0220

Murray 2171011

SPRING, Compression
(Superseded to 2171011SM)

$75.99

$

In Stock, only 1 left!

0

0230

Murray 1918431

WASHER, 1/2

$4.49

$

In Stock, Qty 11

0

0240

Murray 1723840A

CRANK ASSEMBLY
(Superseded to 1723840ASM)

$292.99

$

Usually ships in 2-12 days

0

0250

Murray 1723841A

CRANK BRACKET
(Superseded to 1723841ASM)

$75.99

$

Usually ships in 2-12 days

0

0260

Murray 1931350

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0270

Murray 1723412

SPRING, Extension
(Superseded to 1723412SM)

$58.99

$

In Stock, only 1 left!

0

0280

Murray 1723842A

SPRING ANCHOR BRACKET
(Superseded to 1723842ASM)

$26.99

$

Usually ships in 2-12 days

0

0290

Murray 1960515

NUT, Hex Flange, 1/2-13
(Superseded to 1960515SM)

$5.49

$

Usually ships in 2-12 days

0

0300

Murray 1924650

NUT, Hex Centerlock Jam, 1/2-13
(Superseded to 1924650SM)

$3.49

$

Usually ships in 2-12 days

0

0310

Murray 1723844

ROD, 1/2-13 x 8-3/4
(Superseded to 1723844SM)

$37.99

$

Usually ships in 2-12 days

0

0320

Murray 1921333

CAPSCREW, Hex Hed, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0350

Murray 1926149

CAPSCREW, Hex Head, 5/16-18 x 1, G8
(Superseded to 1926149SM)

$4.49

$

Usually ships in 2-12 days

0

0380

Murray 1960116

PIN, Yoke .494 x 1.359
(Superseded to 1960116SM)

$3.99

$

Usually ships in 2-12 days

0

0400

Murray 1960033

CLIP, Hair Pin
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

0410

Murray 1919262

NUT, Hex, Jam 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

0420

Murray 1604349

ROD, Lift
(Superseded to 1604349SM)

$

$

Not available

0430

Murray 1716179

PIN, Hitch
(Superseded to 1716179SM)

$33.99

$

Usually ships in 2-12 days

0

0440

Murray 1603816

PLATE, Stabilizer
(Superseded to 1603816SM)

$24.99

$

Usually ships in 2-12 days

0

0450

Murray 1675373

CLEVIS ASSEMBLY, One Point Hitch
(Superseded to 1675373SM)

$

$

Not available

0460

Murray 1924361

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

0470

Murray 1927430

CAPSCREW, Hex Head 5/8-11 x 2-1/4
(Superseded to 1927430SM)

$8.99

$

Usually ships in 2-12 days

0

0480

Murray 1915726

NUT, Hex 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

0490

Murray 1753526

PIN, Round Head Drilled, 7/16 x 1-3/4

$

$

Not available

0500

Murray 2175647

SPACER, .635 x 7/8 x 1/2
(Superseded to 2175647SM)

$13.99

$

Usually ships in 2-12 days

0
