1695960 - Murray 54" Mower Deck (2011) 54" Mower Deck - Electric Height Adjust Group Parts Diagram

54" Mower Deck

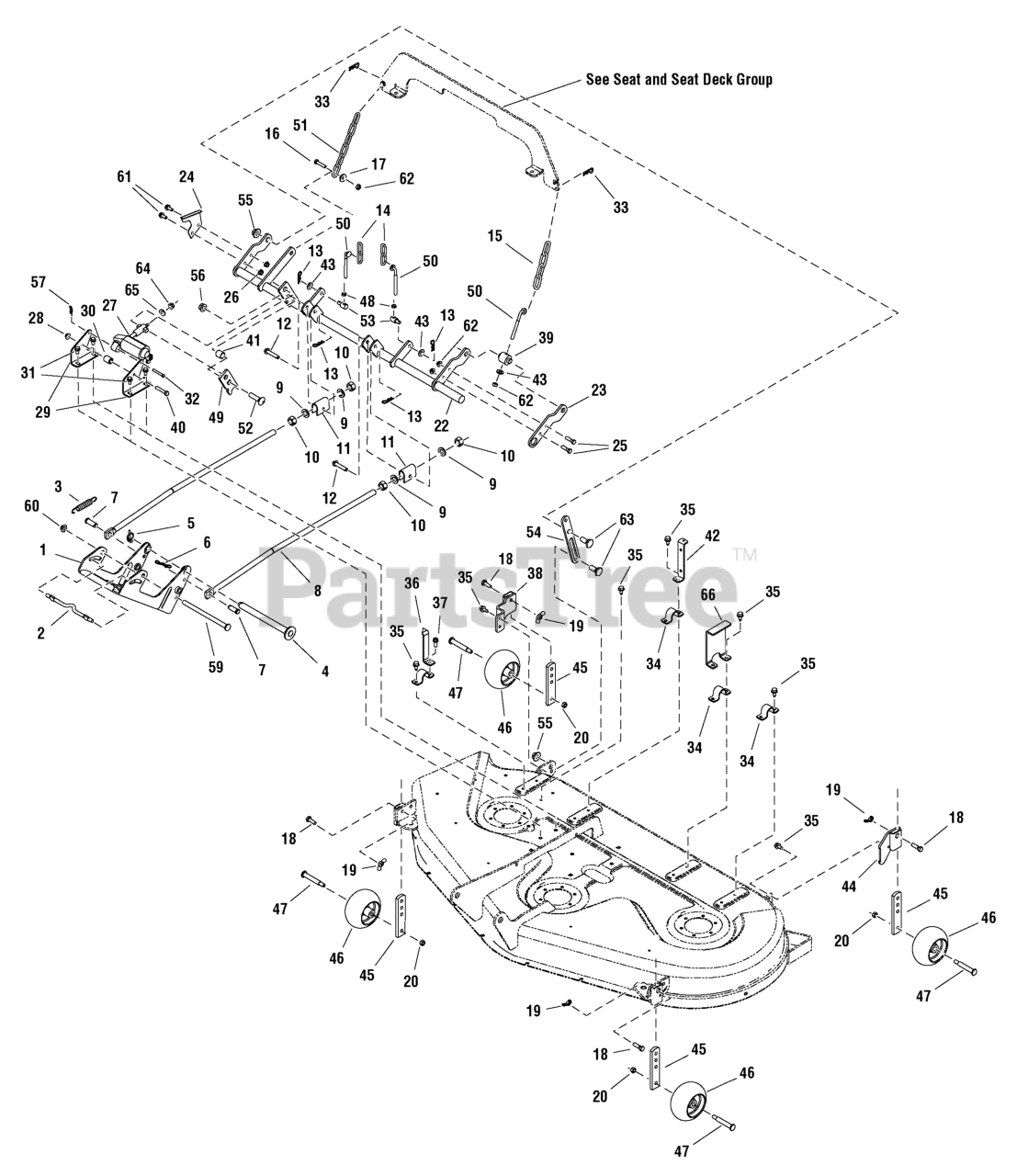

54" Mower Deck - Electric Height Adjust Group Parts Diagram

  • Title

1

Murray 1733229ASM

HITCH & ROD ASSEMBLY, 54"

$222.99

$

Usually ships in 2-12 days

0

2

Murray 1715759SM

ROD, 3/8 x 8

$7.99

$

In Stock, Qty 10

0

3

Murray 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

4

Murray 1734011SM

ASSEMBLY, Hitch Pin

$67.99

$

In Stock, only 3 left!

0

5

Murray 1709189SM

PIN, Klik, 3/16 x 1-5/8

$6.99

$

Usually ships in 2-12 days

0

6

Murray 1722320SM

PIN, Cotter Locking

$3.49

$

In Stock, Qty 20+

0

7

Murray 1960116SM

PIN, Yoke, 1/2
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0

8

Murray 1722995SM

ROD, 5/8 x 29-5/8 Long

$41.99

$

Usually ships in 2-12 days

0

9

Murray 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

10

Murray 1915726SM

NUT, Hex, Jam, 1/2-13
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

11

Murray 1706645ASM

TRUNNION, Bracket
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

12

Murray 2118053SM

PIN, Round Head Drilled 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

13

Murray 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

14

Murray 1731383ASM

CHAIN, 2-Link

$6.49

$

In Stock, only 2 left!

0

15

Murray 1708088ASM

CHAIN, 4-Link

$11.99

$

In Stock, only 1 left!

0

16

Murray 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

17

Murray 1919381SM

WASHER, Plain, 11/32 x 1 x 1/8
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

18

Murray 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

19

Murray 7091049SM

NUT, WING, 3/8-16

$5.49

$

In Stock, only 2 left!

0

20

Murray 1930645SM

NUT, Hex Flange, 2-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Murray 1750759AYP

ROCKER SHAFT, Frame Hung, 54"

$233.99

$

Usually ships in 2-12 days

0

23

Murray 1720637ASM

ARM

$19.99

$

Usually ships in 2-12 days

0

24

Murray 1704116ASM

BRACKET, Cutting Height
(Superseded to 1704116BMYP)

$11.99

$

In Stock, only 1 left!

0

25

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

26

Murray 1931277SM

NUT, Hex Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Murray 1754504YP

MOTOR, Linear Actuator Deck Lift

$

$

Not available

28

Murray 1927557SM

NUT, Hex Flange Whiz Lock Large, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

29

Murray 1733831ASM

BRACKET, Mounting

$16.99

$

Usually ships in 2-12 days

0

30

Murray 1733068SM

SPACER, 0.39 x 3/4 x 0.965

$13.99

$

Usually ships in 2-12 days

0

31

Murray 1930601SM

CAPSCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

32

Murray 1739295YP

PIN, Shear, 1-3/4
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

33

Murray 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

34

Murray 1720147BZYP

STRAP

$9.99

$

In Stock, only 2 left!

0

35

Murray 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

36

Murray 1720643ASM

INDICATOR, Height of Cut

$19.99

$

In Stock, only 2 left!

0

37

Murray 1931202SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

38

Murray 1727612ASM

GAGE, Wheel Assembly, R.H.

$60.99

$

Usually ships in 2-12 days

0

39

Murray 1724009SM

TRUNNION

$

$

Not available

40

Murray 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

41

Murray 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

42

Murray 1737219AYP

UPSTOP, Rear

$27.99

$

Usually ships in 2-12 days

0

43

Murray 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

44

Murray 1727613ASM

GAUGE WHEEL ASSEMBLY

$26.99

$

Usually ships in 2-12 days

0

45

Murray 7035835SM

POST, Anti-Scalp

$20.99

$

In Stock, only 2 left!

0

46

Murray 1700184SM

WHEEL, Gauge

$14.99

$

In Stock, only 2 left!

0

47

Murray 7029265SM

BOLT, Shoulder, 3/8-16

$10.99

$

In Stock, Qty 5

0

48

Murray 1920161SM

NUT, Hex, Jam, 5/16-18

$4.49

$

In Stock, only 2 left!

0

49

Murray 1733520ASM

ARM, Rocker

$10.99

$

Usually ships in 2-12 days

0

50

Murray 7028728SM

ADJUSTER, Chain
(Superseded to 703827)

$10.99

$

In Stock, Qty 11

0

51

Murray 1708266ASM

CHAIN, 6 Link, 8 13/32 Long

$9.99

$

Usually ships in 2-12 days

0

52

Murray 1960706SM

BOLT, Carriage, Short Neck, 1/2-13 x 2

$5.99

$

Usually ships in 2-12 days

0

53

Murray 1731382SM

TRUNNION, 5/8 OD x 1-11/32 Long

$34.99

$

In Stock, only 2 left!

0

54

Murray 1727143ASM

STOP, Height Adjusting

$12.99

$

Usually ships in 2-12 days

0

55

Murray 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

56

Murray 1960689SM

NUT, Hex, Toplock Flange,1/2-13

$3.49

$

Usually ships in 2-12 days

0

57

Murray 1960221SM

CLIP, Hair Pin Spring
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

59

Murray 1713578SM

ROD, Mower Hitch

$15.99

$

In Stock, only 1 left!

0

60

Murray 1960519SM

PUSH NUT, Stud Cap, 1/2
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

61

Murray 1930591SM

CAPSCREW, Hex Flange Hd, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

62

Murray 1960686SM

NUT, Hex, Flange ESNA, 5/16-18, Black
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

63

Murray 1737409YP

BOLT, Shoulder, 2-9/16 Long

$12.99

$

In Stock, only 2 left!

0

64

Murray 1960757SM

NUT, Hex, 1/4-20, L.H. Thread

$5.49

$

Usually ships in 2-12 days

0

65

Murray 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

66

Murray 1737075ASM

UPSTOP

$47.99

$

Usually ships in 2-12 days

0
