1695953 - Champion 30" Snow Thrower, 14.5hp, Canada (2010) Handles Group Parts Diagram

30" Snow Thrower, 14.5hp, Canada

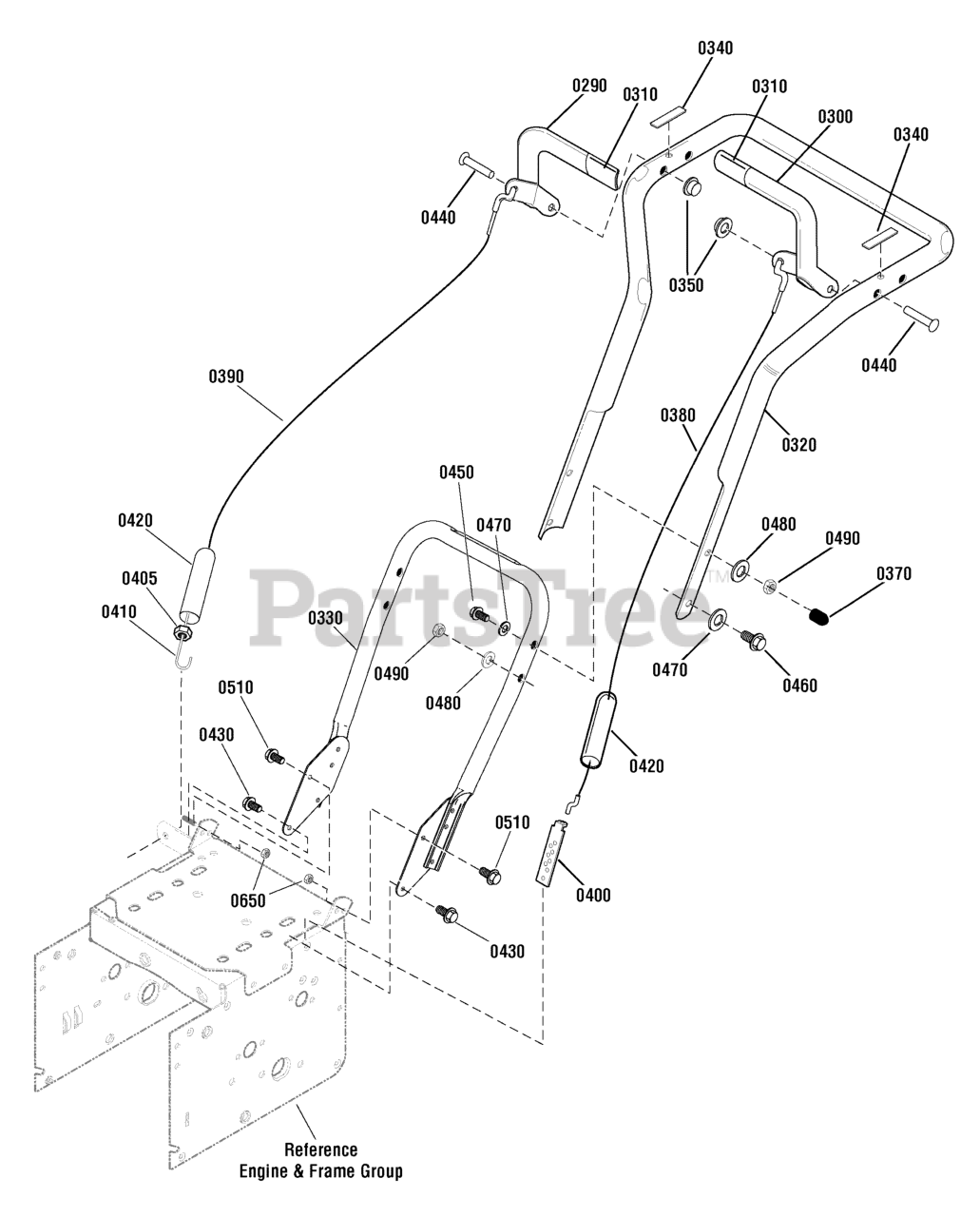

Handles Group Parts Diagram

  • Title

0290

Murray 5146E701MA

LEVER ASSEMBLY, RH

$31.99

$

Usually ships in 2-12 days

0

0300

Murray 5142E701MA

LEVER ASSEMBLY, LH

$

$

Not available

0310

Murray 333928MA

GRIP, Control Lever

$4.49

$

Usually ships in 2-12 days

0

0320

Murray 1741120AYP

HANDLE, Upper

$128.99

$

Usually ships in 2-12 days

0

0330

Murray 1740580AYP

HANDLE, Lower

$131.99

$

Usually ships in 2-12 days

0

0340

Murray 4049MA

BUMPER

$

$

Not available

0350

Murray 3535MA

NUT, Push Cap, 5/16

$4.99

$

Usually ships in 2-12 days

0

0370

Murray 7289MA

STOP

$4.49

$

Usually ships in 2-12 days

0

0380

Murray 1502113MA

CABLE, Front Drive

$22.99

$

In Stock, Qty 20+

0

0390

Murray 761872MA

CABLE, Auger

$15.99

$

In Stock, Qty 10

0

0400

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0405

Murray 1920397SM

NUT, Hex Lock ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0410

Murray 1673MA

SPRING, Auger Control

$8.99

$

In Stock, Qty 13

0

0420

Murray 308146MA

BOOT, Spring End Cover

$6.49

$

In Stock, only 3 left!

0

0430

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0440

Murray 760074MA

PIN, Pivot Control

$10.99

$

Usually ships in 2-12 days

0

0450

Murray 7288MA

CAPSCREW, Hex Head, 3/8-16 x 3

$4.49

$

Usually ships in 2-12 days

0

0460

Murray 71007MA

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

0470

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0480

Murray 71062MA

WASHER, 3/8

$3.49

$

Usually ships in 2-12 days

0

0490

Murray 71044MA

NUT, Hex, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0510

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0650

Murray 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0
