1695952 - Champion 27" Snow Thrower, 11.5hp, Canada (2010) Engine & Frame Group Parts Diagram

27" Snow Thrower, 11.5hp, Canada

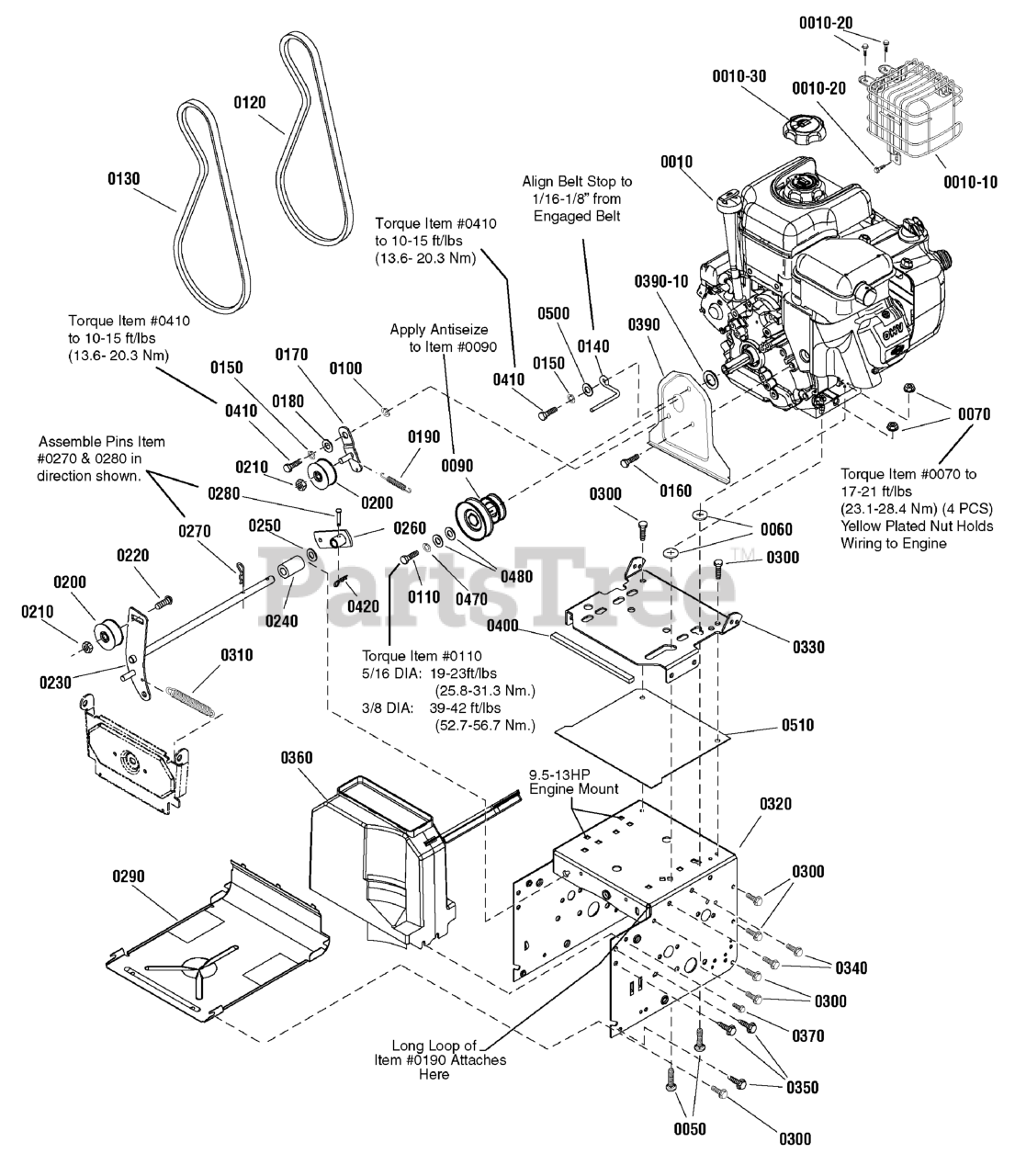

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 15C114-0121-E8

* ENGINE, 11.5 TP Briggs &Stratton

Note: (Engine Model 15C114-0121-E8)

$

$

Currently unavailable

0010

Murray 20M314-0115-E1

* ENGINE, 14.5 TP Briggs & Stratton

Note: (Engine Model 20M314-0115-E1)

$

$

Currently unavailable

0010-10

Murray 793193

GUARD, Muffler

Note: (Use on 11.5TP models)

$55.99

$

Usually ships in 2-12 days

0

0010-10

Murray 796384

GUARD, Muffler

Note: (Use on 14.5TP models)

$83.99

$

Usually ships in 2-12 days

0

0010-20

Murray 699854

SCREW, Muffler Guard

Note: (Use on 11.5TP models)

$3.99

$

In Stock, Qty 7

0

0010-20

Murray 699234

SCREW, Muffler Guard

Note: (Use on 14.5TP models)

$3.99

$

In Stock, only 2 left!

0

0010-30

Murray 792647

CAP, Fuel
(Superseded to 795027)

$10.99

$

In Stock, Qty 20+

0

0050

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0060

Murray 028X76MA

PUSHNUT, 1/4

$4.49

$

Usually ships in 2-12 days

0

0070

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0090

Murray 1501109MA

PULLEY, Engine

$41.99

$

In Stock, only 2 left!

0

0100

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0110

Murray 1921982SM

CAPSCREW, Hex Head, 5/16-24 x 1-1/4, G5
(Superseded to 703299)

Note: (Use on 11.5TP models)

$4.99

$

Usually ships in 2-12 days

0

0110

Murray 1960428SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/4
(Superseded to 703165)

Note: (Use on 14.5TP models)

$3.99

$

Usually ships in 2-12 days

0

0120

Murray 1733324SM

V-BELT, Traction Drive, 3L 33.13

$19.99

$

In Stock, Qty 20+

0

0130

Murray 585416MA

BELT, Auger Drive, V4L 38.10

$22.99

$

In Stock, Qty 20+

0

0140

Murray 1739070YP

BELT GUIDE

$7.99

$

In Stock, Qty 5

0

0150

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Murray 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4 G5

$3.99

$

Usually ships in 2-12 days

0

0170

Murray 1501112YZMA

IDLER BRACKET
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0

0190

Murray 53704MA

SPRING, Extension, Idler

$8.49

$

In Stock, only 2 left!

0

0200

Murray 1502120MA

IDLER

$21.99

$

In Stock, Qty 6

0

0210

Murray 1960251SM

NUT, Hex Centerlock Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0220

Murray 585781MA

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/4, G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 1501369YZMA

IDLER ASSEMBLY, Auger

$49.99

$

Usually ships in 2-12 days

0

0240

Murray 1501200MA

SPACER, 1/2 ID x 1OD x 1-3/4"

$5.99

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

ARM, Control

$20.99

$

In Stock, only 3 left!

0

0270

Murray 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

0290

Murray 1740906ASM

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

0300

Murray 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0310

Murray 165X159MA

SPRING, Extension, Auger

$6.99

$

In Stock, Qty 9

0

0320

Murray 1740571ZMA

FRAME BOX

Note: (Use on 14.5TP models)

$108.99

$

Usually ships in 2-12 days

0

0320

Murray 1740572ZMA

FRAME BOX

Note: (Use on 11.5TP models)

$108.99

$

Usually ships in 2-12 days

0

0330

Murray 1733583ZYP

PLATE, Engine Mount

$44.99

$

Usually ships in 2-12 days

0

0340

Murray 25X020MA

CAPSCREW, Hex Washer Head, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 6

0

0350

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1733923SM

BELT COVER ASSEMBLY

$75.99

$

Usually ships in 2-12 days

0

0370

Murray 26X306MA

SCREW, Hex Washer Head, Tapping, SEMS, 1/4 x 3/4

$4.99

$

Usually ships in 2-12 days

0

0390

Murray 1733868ASM

PLATE, Seal
(Superseded to 1733868BMYP)

$13.99

$

In Stock, only 1 left!

0

0390-10

Murray 1733898SM

SEAL, Foam

Note: (Use on 11.5TP models)

$6.49

$

Usually ships in 2-12 days

0

0390-10

Murray 1750185YP

SEAL, Foam

Note: (Use on 14.5TP models)

$6.99

$

Usually ships in 2-12 days

0

0400

Murray 1750172YP

STRIP, Seal

$7.49

$

Usually ships in 2-12 days

0

0410

Murray 910828MA

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0420

Murray 7023590SM

COTTER PIN, Self Lock, 1/4

$3.99

$

In Stock, Qty 20+

0

0470

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

Note: (Use on 11.5TP models)

$3.49

$

In Stock, Qty 20+

0

0470

Murray 1916965SM

LOCKWASHER, Spring
(Superseded to 703454)

Note: (Use on 14.5TP models)

$3.49

$

In Stock, Qty 15

0

0480

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

Note: (Use on 11.5TP models)

$4.49

$

Usually ships in 2-12 days

0

0480

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

Note: (Use on 14.5TP models)

$4.99

$

In Stock, Qty 9

0

0500

Murray 7091528SM

WASHER, Flat, 3/8

$3.99

$

Usually ships in 2-12 days

0

0510

Murray 1750135YP

SEAL, Engine Plate

Note: (Use on 11.5TP models)

$15.99

$

Usually ships in 2-12 days

0

0510

Murray 1750134YP

SEAL, Engine Plate

Note: (Use on 14.5TP models)

$17.99

$

Usually ships in 2-12 days

0
