1695951 - Champion 24" Snow Thrower, 9hp, Canada (2010) Gear Case Assembly (1738602) Parts Diagram

24" Snow Thrower, 9hp, Canada

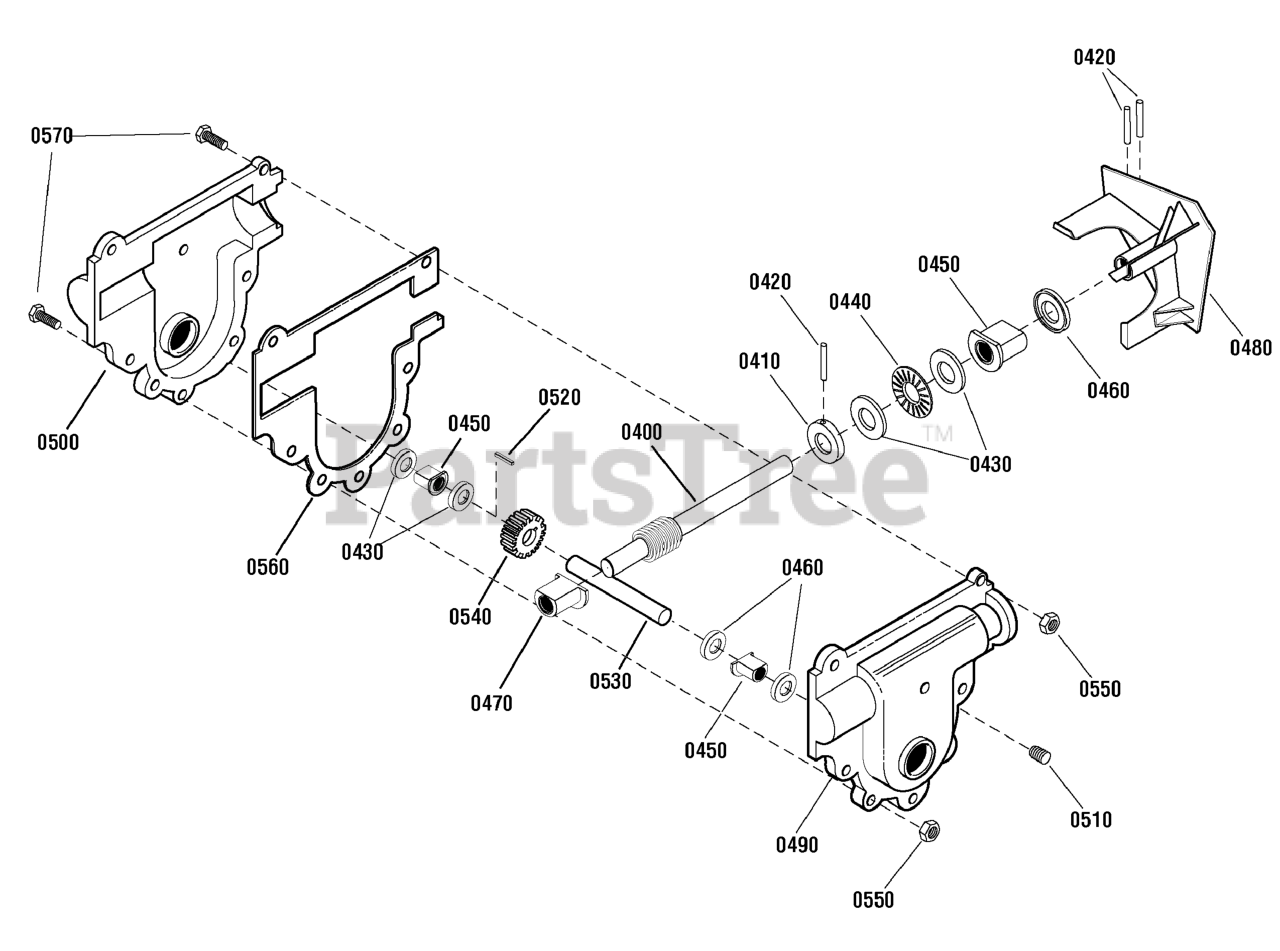

Gear Case Assembly (1738602) Parts Diagram

  • Title

0400

Murray 1501191MA

SHAFT, Input

$75.99

$

In Stock, only 2 left!

0

0410

Murray 580295MA

COLLAR, Thrust, .3/4 x 1-1/4

$22.99

$

Usually ships in 2-12 days

0

0420

Murray 454565MA

PIN, Spring, 1/4 x 1-1/4

$

$

Not available

0430

Murray 48275MA

WASHER, Thrust

$6.49

$

In Stock, only 4 left!

0

0440

Murray 50684MA

BEARING,, Roll, 3/4 ID x 1-1/4 OD

$6.49

$

In Stock, only 4 left!

0

0450

Murray 50304MA

BEARING, Flange, 3/4 ID x 1 OD

$8.49

$

In Stock, Qty 14

0

0460

Murray 9566MA

SEAL, Oil

$12.99

$

In Stock, only 3 left!

0

0470

Murray 50221MA

BEARING, Flange

$8.49

$

In Stock, only 4 left!

0

0480

Murray 1740929AYP

IMPELLER ASSEMBLY

$359.99

$

Usually ships in 2-12 days

0

0490

Murray 10576MA

CASE, Gear, LH

$22.99

$

In Stock, Qty 5

0

0500

Murray 10577MA

CASE, Gear, RH

$22.99

$

In Stock, only 1 left!

0

0510

Murray 9344MA

SCREW, 3/8-16 X .50
(Superseded to 704213)

$5.49

$

In Stock, only 1 left!

0

0520

Murray 431787MA

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

0530

Murray 1501189MA

SHAFT, Auger Output

$55.99

$

In Stock, only 1 left!

0

0540

Murray 51405MA

GEAR, Worm

$78.99

$

In Stock, only 1 left!

0

0550

Murray 15X143MA

NUT, Center Lock, 1/4-20

$4.99

$

In Stock, Qty 13

0

0560

Murray 51279MA

GASKET, Gear Box

$12.99

$

In Stock, Qty 10

0

0570

Murray 710025MA

SCREW, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0
