1695951 - Champion 24" Snow Thrower, 9hp, Canada (2010) Auger Housing Group Parts Diagram

24" Snow Thrower, 9hp, Canada

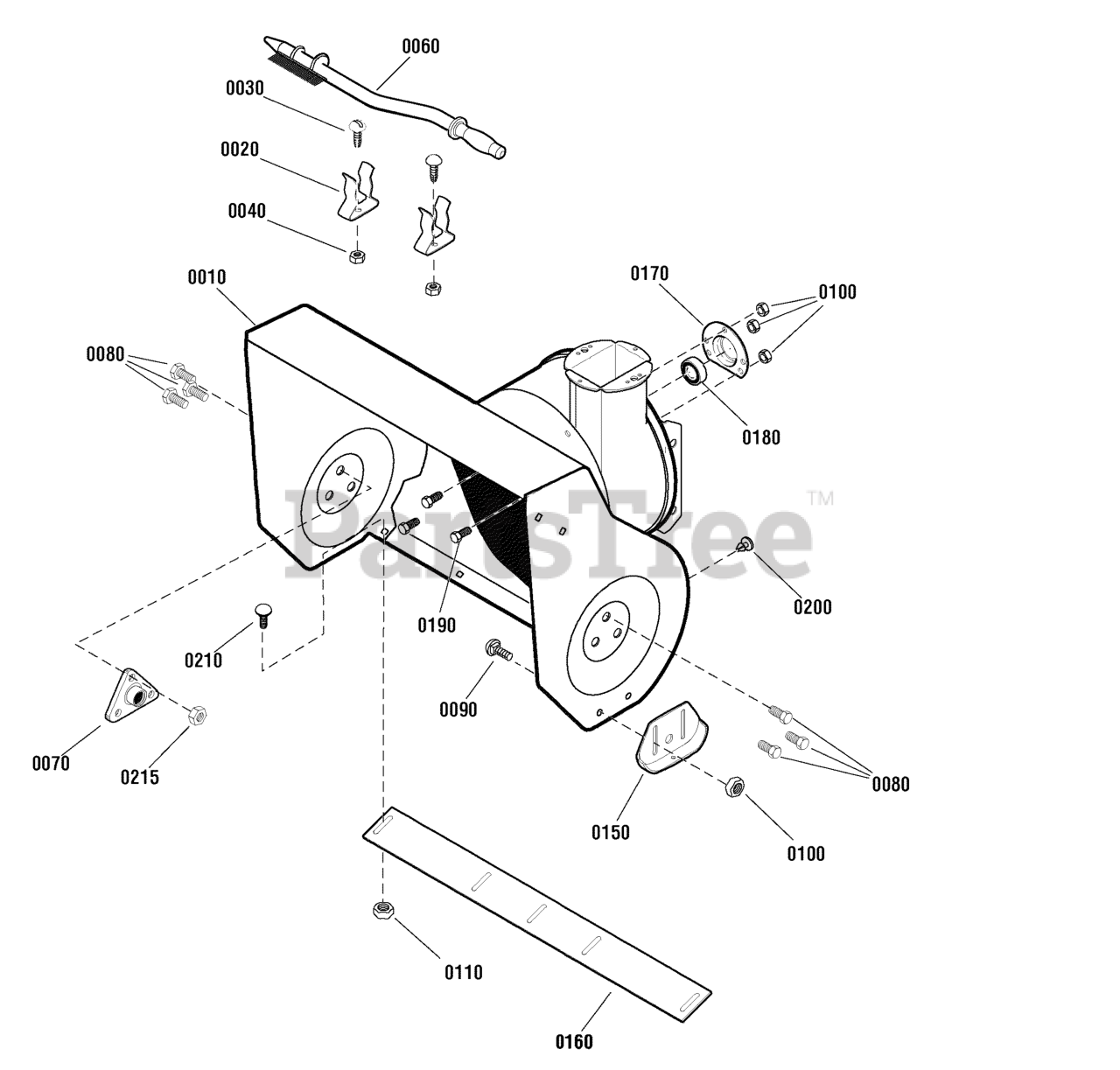

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687514YP

AUGER HOUSING

$341.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLAMP, Spring

$6.49

$

In Stock, only 2 left!

0

0030

Murray 1960569SM

SCREW, Truss Head, Torx #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 15X146MA

NUT, Hex Lock, Nylon, #10C
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0060

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 4 left!

0

0070

Murray 9517MA

BEARING, Auger

$5.99

$

In Stock, Qty 18

0

0080

Murray 9357MA

CAPSCREW, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

0090

Murray 7091547YP

BOLT, Carriage, 3/8-16 x 3/4, G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 7091619SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0110

Murray 710026MA

NUT, Hex Flange, Serrated Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1737986AYP

SKID, Height Adjust
(Superseded to 1740912BMYP)

$13.99

$

In Stock, Qty 10

0

0160

Murray 1738335AYP

BLADE, Scraper

$

$

Not available

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0190

Murray 001X45MA

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

0200

Murray 760040MA

PLUG

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 7090799SM

BOLT, Carriage, 5/16-18 x 5/8, G5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0215

Murray 711862MA

NUT, Hex Flange, Top Lock, 5/16-18

$4.99

$

In Stock, Qty 5

0
