1695951 - Champion 24" Snow Thrower, 9hp, Canada (2010) Auger Drive Group Parts Diagram

24" Snow Thrower, 9hp, Canada

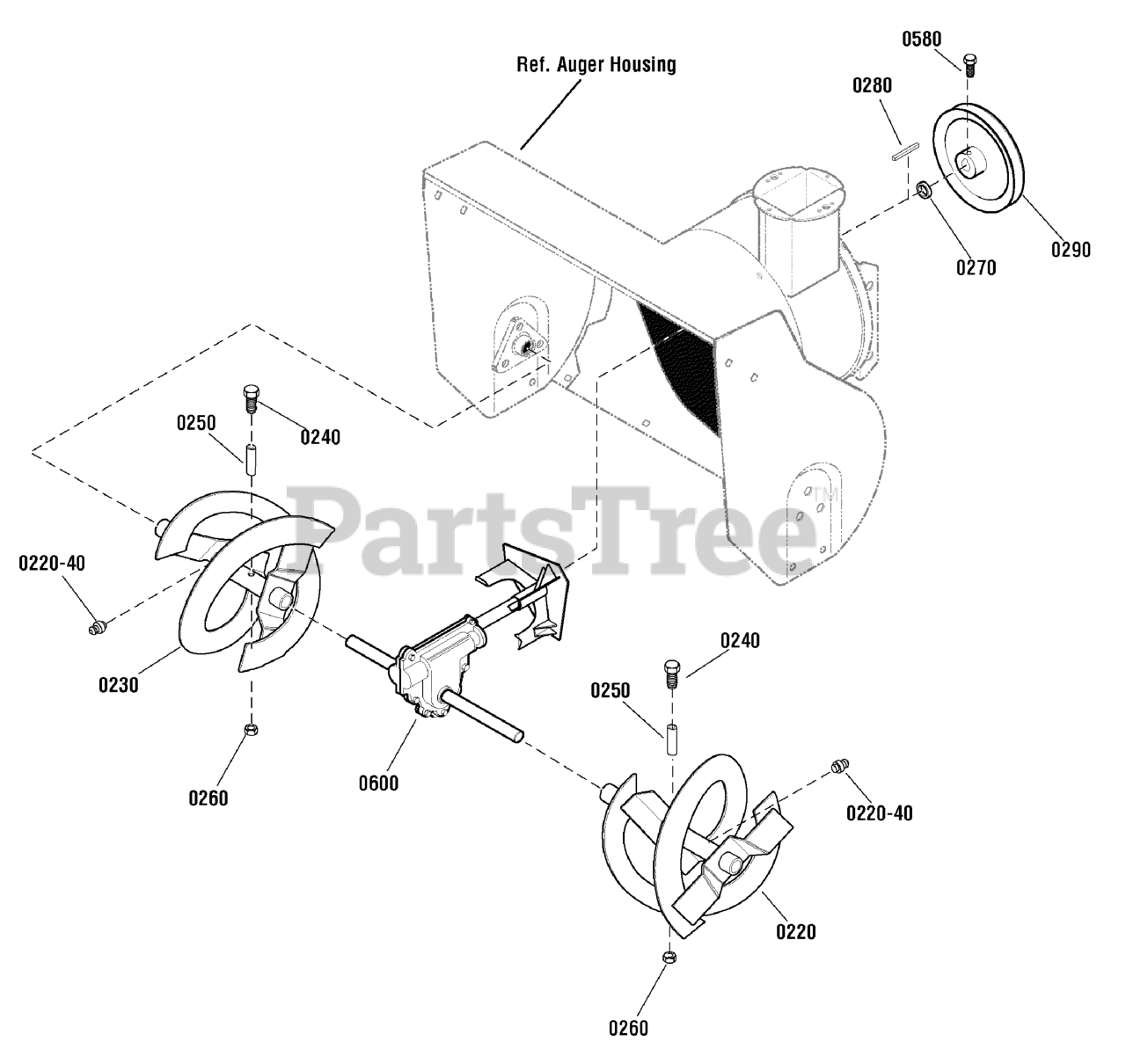

Auger Drive Group Parts Diagram

  • Title

0220

Murray 1750036BCYP

AUGER, L.H.

Note: (Includes Ref. No. 0220-40)

$100.99

$

Usually ships in 2-12 days

0

0230

Murray 1750037BCYP

AUGER, R.H.

Note: (Includes Ref. No. 0220-40)

$100.99

$

Usually ships in 2-12 days

0

0220-40

Murray 10104MA

FITTING, Zerk
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0240

Murray 9524MA

CAPSCREW, Hex Head, 1/4-20 x 1-1-3/4, G2
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

0250

Murray 3943MA

SPACER, Sleeve, 1/4 x 1/2
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

0260

Murray 73826MA

NUT, Hex Centerlock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0270

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 10

0

0280

Murray 2001022MA

KEY, Square 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

0290

Murray 1501211MA

PULLEY, V4L 6.12 x .67

$71.99

$

In Stock, only 3 left!

0

0580

Murray 577400MA

CAPSCREW, Hex Head, 5/16-18 x 5/8

$4.99

$

Usually ships in 2-12 days

0

0600

Murray 1738602YP

GEAR CASE ASSEMBLY, Complete

$729.99

$

Usually ships in 2-12 days

0

--

Murray 1501216MA

SHEAR BOLT KIT

Note: (Includes Ref. Nos. 0240, 0250 & 0260)

$4.99

$

In Stock, Qty 10

0
