1695946 - Snapper Mulch Kit for 46" Mower 46" & 52" Mulcher Kit Parts Diagram

Mulch Kit for 46" Mower

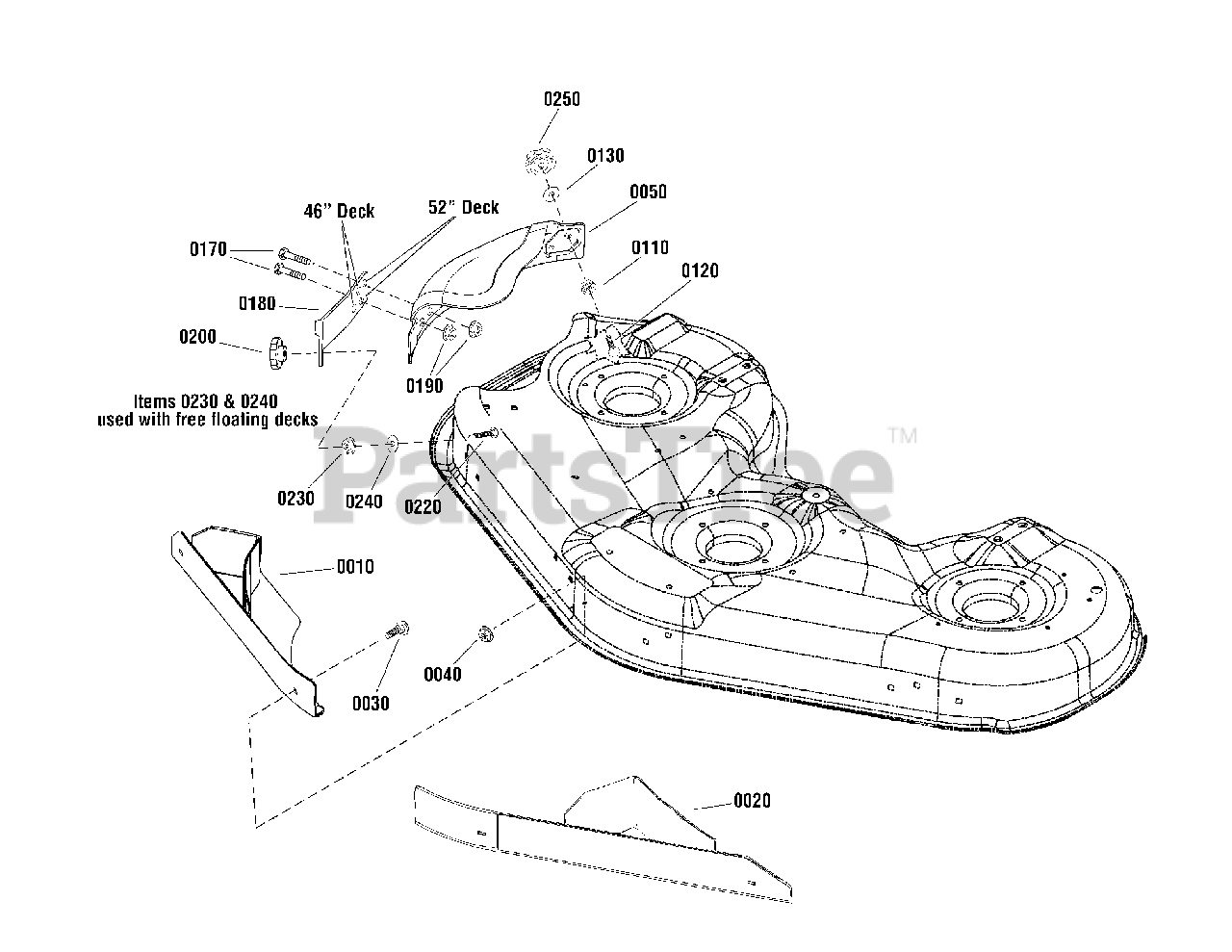

46" & 52" Mulcher Kit Parts Diagram

  • Title
0010

Snapper 1737317AYP

BAFFLE ASSEMBLY, 46 MULCHING, RH

Note: (46" Mower Deck Only)

$

$

Not available

0010

Snapper 1737319AYP

BAFFLE ASSEMBLY, 52 MULCHING, RH
(Superseded to 1737319BZYP)

Note: (52" Mower Deck Only)

$100.99

$

Usually ships in 2-12 days

0

0020

Snapper 1737316AYP

BAFFLE ASSEMBLY, 46 MULCHING, LH

Note: (46" Mower Deck Only)

$

$

Not available

0020

Snapper 1737318AYP

BAFFLE ASSEMBLY, 52 MULCHING, LH

Note: (52" Mower Deck Only)

$

$

Not available

0030

Snapper 1931332SM

BOLT, Round Head, Short Neck 5/16-18 X 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 703330YP

NUT, Hex Flange, 5/16-18

$

$

Not available

0050

Snapper 1751018YP

COVER, Mulching

$39.99

$

In Stock, Qty 6

0

0110

Snapper 703061YP

NUT, Hex, 1/4-20

$

$

Not available

0120

Snapper 1960698SM

BOLT, Round Head, Short Neck, 1/4-20 X 1
(Superseded to 703584)

$3.99

$

In Stock, Qty 9

0

0130

Snapper 7091627YP

WASHER, Flat, .281 X 1 X.1/8

$4.99

$

In Stock, Qty 11

0

0170

Snapper 1921332SMYP

CAPSCREW, Hex Head, 5/16-18 X 3/4

$

$

Not available

0180

Snapper 7301167BMYP

LATCH, Mulch Cover

$

$

Not available

0190

Snapper 703115YP

NUT, Hex Flange,Nylock, 5/16-18

$

$

Not available

0200

Snapper 7101022YP

KNOB, Flutted

$7.49

$

In Stock, Qty 5

0

0220

Snapper 7091169YP

BOLT, Carriage, Short neck, 5/16 x 1 1/8
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

0230

Snapper 015X79MAYP

NUT, Flange, 5/16 - 18

$

$

Not available

0240

Snapper 1919384SM

WASHER, Flat 3/8

$5.49

$

In Stock, only 1 left!

0

0250

Snapper 1738295YP

KNOB, .25-20 ESNA

$7.49

$

In Stock, only 1 left!

0

--

Snapper 1695946YP

MULCH KIT
(Superseded to 1696910)

$218.99

$

Usually ships in 2-12 days

0
