1695931 - Brute 29" Snow Thrower, 14.5 Gross TP (2010) Auger Drive Group Parts Diagram

29" Snow Thrower, 14.5 Gross TP

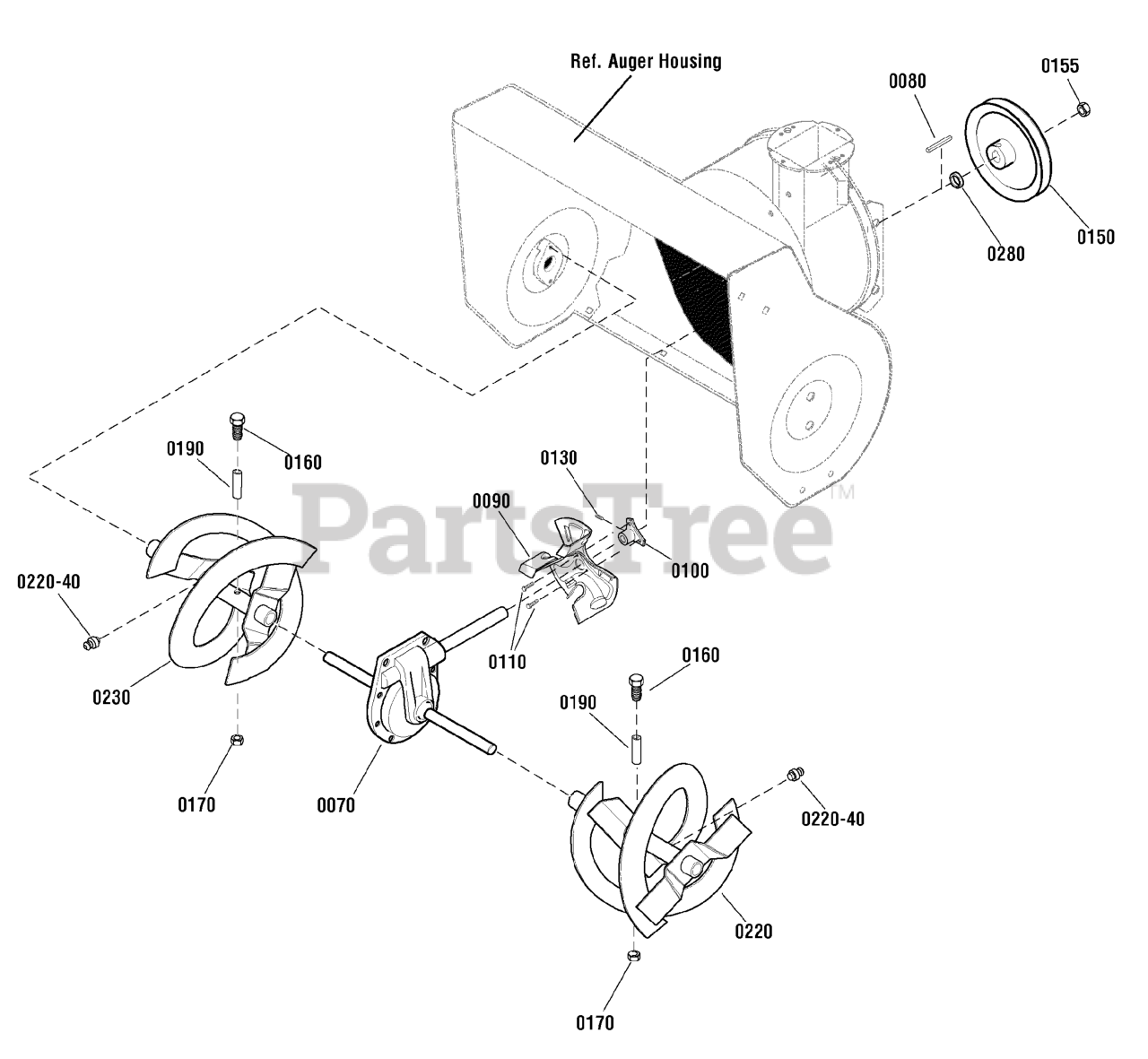

Auger Drive Group Parts Diagram

  • Title

0070

Murray 1751318YP

GEARBOX ASSEMBLY

$940.99

$

Usually ships in 2-12 days

0

0080

Murray 2001022MA

KEY,Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

0090

Murray 1739094AYP

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, Qty 17

0

0100

Murray 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 4 left!

0

0110

Murray 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0130

Murray 1930540SM

SCREW, Set, Square Head, 5/16-18 x 5/8, G8

$4.49

$

In Stock, Qty 10

0

0150

Murray 583146MA

PULLEY

$

$

Not available

0155

Murray 15X112MA

NUT, Hex Flange, Serrated Lock, 1/2-20

$5.49

$

In Stock, only 2 left!

0

0160

Murray 9524MA

CAPSCREW, Hex Head, 1/4-20 x 1-3/4
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

0170

Murray 73826MA

NUT, Hex Centerlock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0190

Murray 3943MA

SPACER, Sleeve, 1/4 x 1/2
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

0220

Murray 1738031BCYP

AUGER, 29, LH
(Superseded to 1738031BMYP)

Note: (Includes Ref. No. 0220-40)

$222.99

$

In Stock, only 1 left!

0

0230

Murray 1738032BCYP

AUGER, 29, RH

Note: (Includes Ref. No. 0220-40)

$

$

Not available

0220-40

Murray 10104MA

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0280

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 10

0

--

Murray 1501216MA

KIT, Shear Bolt

$4.99

$

In Stock, Qty 14

0
