1695920 - Simplicity Roticul Mini Cultivator Handles & Controls Group - Electric & Manual Start Parts Diagram

Roticul Mini Cultivator

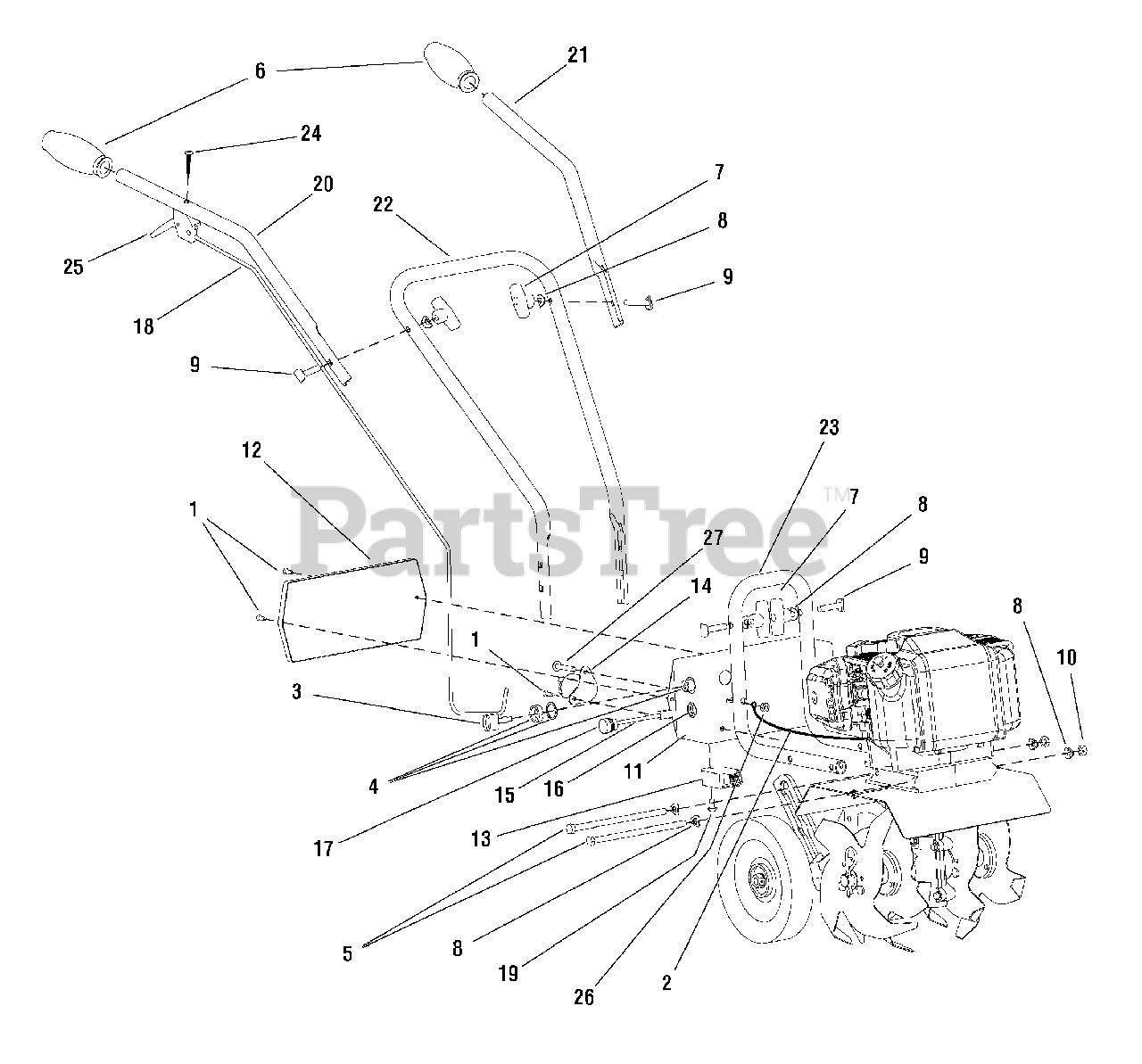

Handles & Controls Group - Electric & Manual Start Parts Diagram

  • Title

1

Simplicity 1735859

BOLT, M5 x 12mm

$

$

Not available

2

Simplicity 1750876

GROUND WIRE
(Superseded to 1750876YP)

$39.99

$

Usually ships in 2-12 days

0

3

Simplicity 1750877

KEY ONLY
(Superseded to 1750877YP)

$20.99

$

Usually ships in 2-12 days

0

4

Simplicity 1750878

KEY SWITCH
(Superseded to 1750878YP)

$46.99

$

Usually ships in 2-12 days

0

5

Simplicity 1750879

BOLT, Hex Head, M8 x 1.25 x 160mm
(Superseded to 1750879YP)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1750880

GRIP, Handlebar, Flangeless, 1"
(Superseded to 1750880YP)

$19.99

$

Usually ships in 2-12 days

0

7

Simplicity 1750881

NUT, T-Handle
(Superseded to 1750881YP)

$18.99

$

Usually ships in 2-12 days

0

8

Simplicity 1750882

WASHER HANDLE
(Superseded to 1750882YP)

$5.99

$

Usually ships in 2-12 days

0

9

Simplicity 1750883

BOLT, Handle Clamp
(Superseded to 1750883YP)

$5.49

$

Usually ships in 2-12 days

0

10

Simplicity 1721436

NUT, Hex Head, M8 x 1.25
(Superseded to 1721436SM)

$8.99

$

Usually ships in 2-12 days

0

11

Simplicity 1750884

BATTERY BOX MC43e

$

$

Not available

12

Simplicity 1750885

COVER, Battery Box
(Superseded to 1750885YP)

$38.99

$

Usually ships in 2-12 days

0

13

Simplicity 1750886

VOLTAGE RECTIFIER
(Superseded to 1750886YP)

$66.99

$

Usually ships in 2-12 days

0

14

Simplicity 1750887

SOLENOID
(Superseded to 1750887YP)

$39.99

$

Usually ships in 2-12 days

0

15

Simplicity 1750888

CHARGER PIGTAIL
(Superseded to 1750888YP)

$79.99

$

Usually ships in 2-12 days

0

16

Simplicity 1750889

NUT, Charger Pigtail
(Superseded to 1750889YP)

$21.99

$

Usually ships in 2-12 days

0

17

Simplicity 1750890

CAP, Charger Pigtail
(Superseded to 1750890YP)

$75.99

$

Usually ships in 2-12 days

0

18

Simplicity 1750891

THROTTLE CABLE
(Superseded to 1750891YP)

$34.99

$

Usually ships in 2-12 days

0

19

Simplicity 1750892

BOLT, Pan Head, M6 x 1mm x 12mm
(Superseded to 1750892YP)

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1750893

HANDLEBAR, Upper Right
(Superseded to 1750893YP)

$43.99

$

Usually ships in 2-12 days

0

21

Simplicity 1750894

HANDLEBAR, Upper Left
(Superseded to 1750894YP)

$43.99

$

Usually ships in 2-12 days

0

22

Simplicity 1750895

HANDLEBAR, Middle
(Superseded to 1750895YP)

$47.99

$

Usually ships in 2-12 days

0

23

Simplicity 1750896

HANDLEBAR, Lower
(Superseded to 1750896YP)

$47.99

$

Usually ships in 2-12 days

0

24

Simplicity 1750897

BOLT, Phillips Truss Head ZN, 10-24 x 1-1/4
(Superseded to 1750897YP)

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 1750898

TRIGGER ASSEMBLY, Long Throw w/o Cable
(Superseded to 1750898YP)

$52.99

$

Usually ships in 2-12 days

0

26

Simplicity 722398

NUT, Bi-Way Lock, 1/4-20
(Superseded to 7001278MA)

$

$

Not available

27

Simplicity 1935945

BOLT, Phillips Truss Head ZN, 1/4-20 x 1-1/2
(Superseded to 1935945SM)

$3.49

$

Usually ships in 2-12 days

0

28

BATTERY, 12V 7A (not shown)

Note: (Not a serviceable part)

$

$

Not available

29

FUSE HOLDER (not shown)

Note: (Includes Ref. No. 30)

$

$

Not available

30

* FUSE, 10 Amp (not shown)

Note: (Included with Ref. No. 29)

$

$

Not available

31

Simplicity 1750899

BATTERY CONNECTOR SET, White (not shown)
(Superseded to 1750899YP)

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 1750900

BATTERY CHARGER (not shown)
(Superseded to 1750900YP)

$64.99

$

Usually ships in 2-12 days

0
