1695890 (CS 55800) - Canadiana 22" Snow Thrower, Canada (2010-2011) Chute Rotation Group - Remote Parts Diagram

22" Snow Thrower, Canada

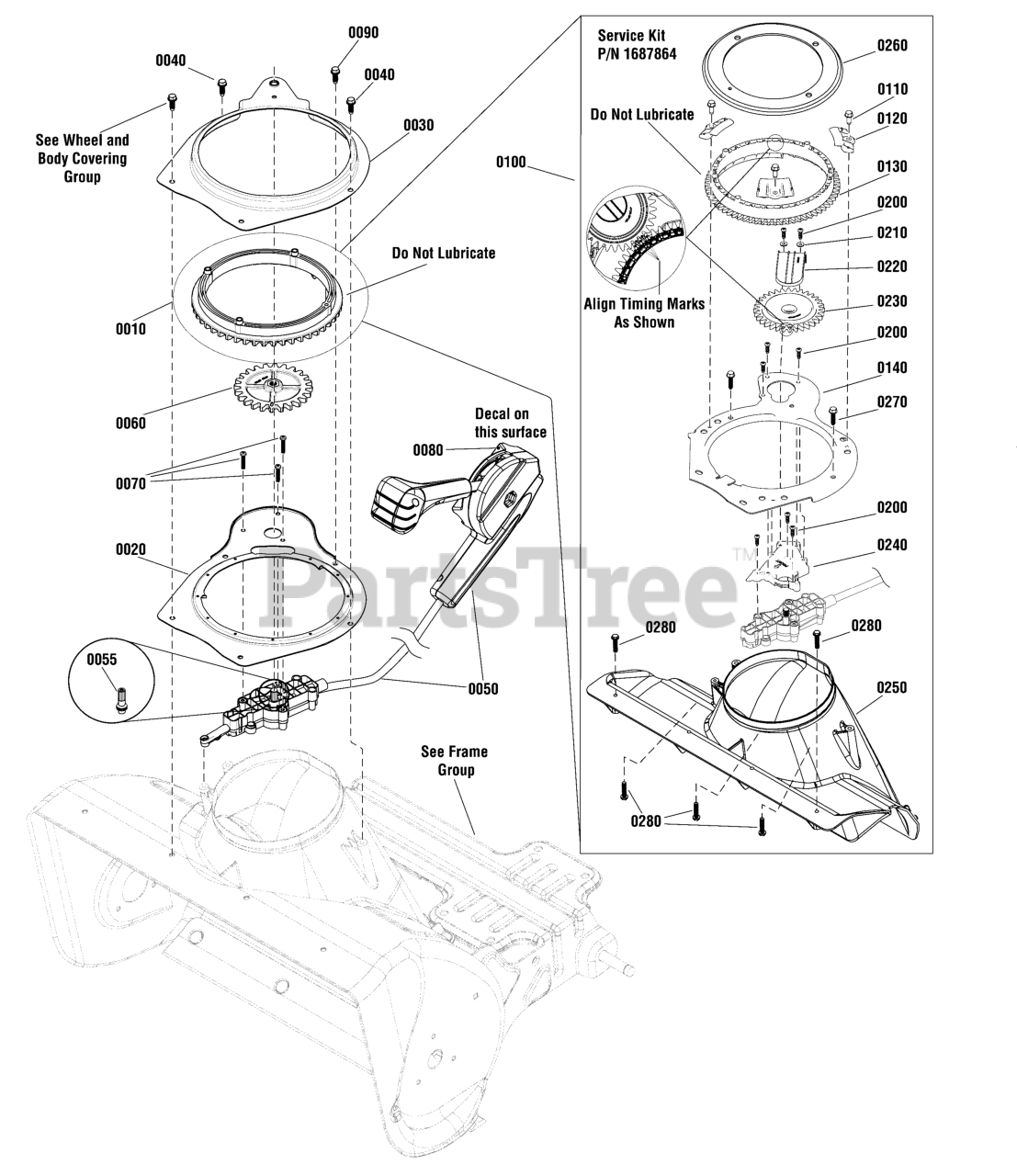

Chute Rotation Group - Remote Parts Diagram

  • Title
0010

Murray 1739123YP

GEAR, Chute Rotation
(Superseded to 1687864)

$227.99

$

In Stock, only 2 left!

0

0020

Murray 1739364YP

PLATE, Chute Mounting

$26.99

$

Usually ships in 2-12 days

0

0030

Murray 1739365YP

RETAINER, Chute Gear

$31.99

$

In Stock, only 1 left!

0

0040

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0050

Murray 1739754YP

CHUTE ROTATION ASSEMBLY, Remote

$207.99

$

Usually ships in 2-12 days

0

0055

Murray 709524

GEAR, Spur, Remote Chute Rotation Output Shaft

$69.99

$

Usually ships in 2-12 days

0

0060

Murray 1738955YP

GEAR, Chute Rotation

$19.99

$

Usually ships in 2-12 days

0

0070

Murray 7100225YP

SCREW, #8-16, Pan Head Torxplus Recessed, Twin Helix
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 1739976YP

DECAL, Chute Rotation (Remote Models Only)

$11.99

$

Usually ships in 2-12 days

0

0090

Murray 1750447YP

SCREW, Hex Washer Head, Trilob, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

0100

Murray 1687864

KIT, Chute Rotation

Note: (Item 0100 Includes items 0110, 0120, 0130, 0140, 0200, 0210, 0220, 0230, 0240, 0250, 0260, 0270 and 0280.)

$227.99

$

In Stock, only 2 left!

0

0110

Murray 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 9

0

0120

RETAINER, Chute

$

$

Not available

0130

$38.99

$

In Stock, only 1 left!

0

0140

Murray 708695

PLATE, Chute Rotation

$60.99

$

Usually ships in 2-12 days

0

0200

Murray 704209

SCREW, #8-16X5/8, Torx, RH Twin Helix, ZC/CL

$3.99

$

Usually ships in 2-12 days

0

0210

Murray 708699

WASHER, Flat 7/16

$3.49

$

Usually ships in 2-12 days

0

0220

Murray 708698

HOLD DOWN, Gear

$8.49

$

Usually ships in 2-12 days

0

0230

Murray 708697

GEAR, Quick Chute Assembly

$12.99

$

Usually ships in 2-12 days

0

0240

Murray 708696

SPACER, Remote Chute Rotation Assembly

$6.49

$

Usually ships in 2-12 days

0

0250

Murray 707849

CHIMNEY

Note: Used with Service Kit 1687864

$106.99

$

In Stock, Qty 5

0

0260

Murray 708735

COVER, Chute Rotation Moisture

$8.49

$

In Stock, only 1 left!

0

0270

Murray 706516

SCREW, Hi-Low, 1/4-15 x 1

$3.49

$

In Stock, only 2 left!

0

0280

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

Note: (Chimney Mounting)

$4.49

$

In Stock, Qty 12

0
