1695875 - Simplicity 22" Snow Thrower, 8hp Wheel & Body Covering Group Parts Diagram

22" Snow Thrower, 8hp

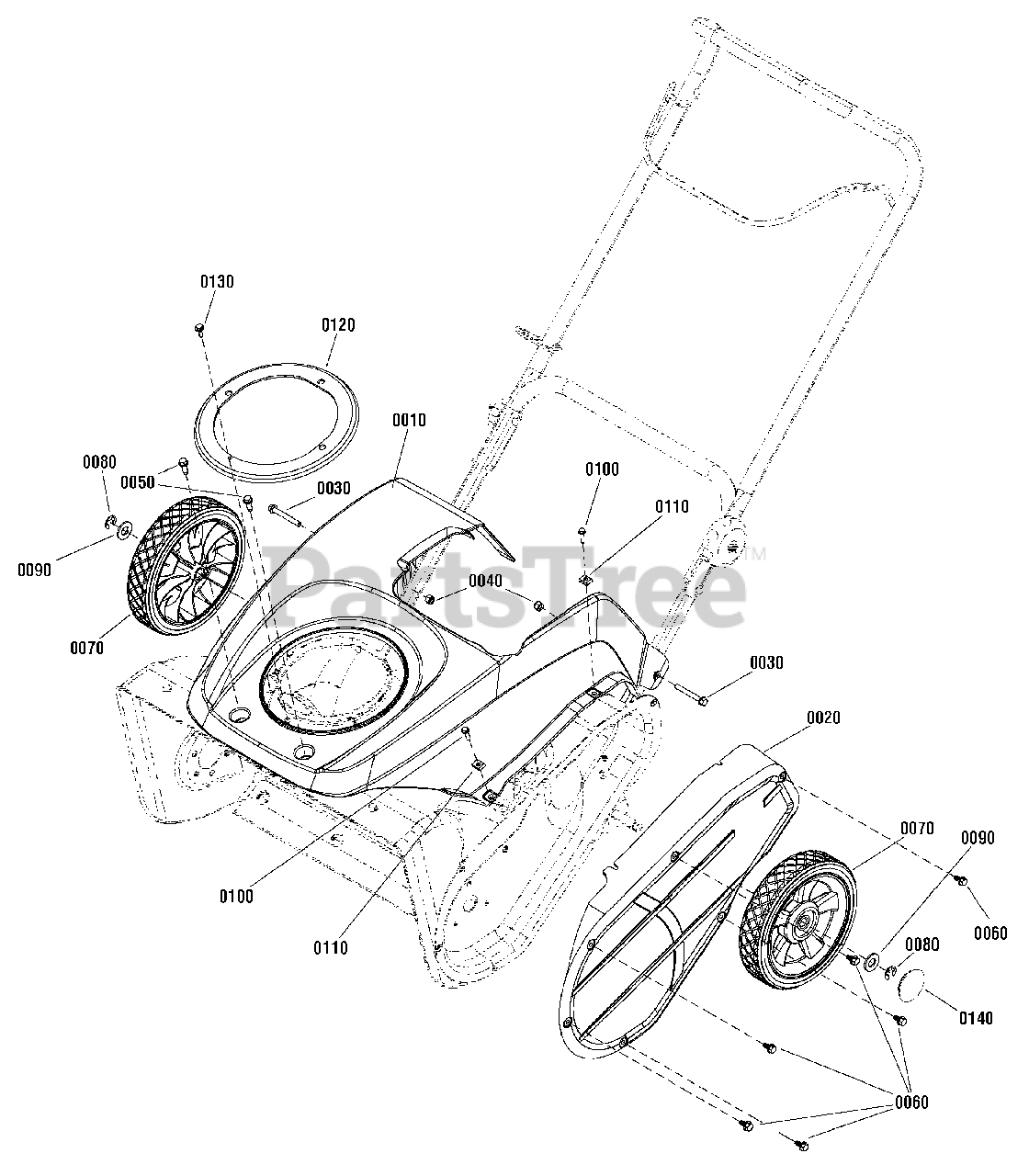

Wheel & Body Covering Group Parts Diagram

  • Title

0010

Simplicity 1739958

COVER, Top, Orange
(Superseded to 1752321YP)

Note: (Used on Manual Chute Rotation Models)

$85.99

$

Usually ships in 2-12 days

0

0010

Simplicity 1752321

COVER, Top, Orange
(Superseded to 1752321YP)

Note: (Used on Remote Chute Rotation Models)

$85.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1739599

COVER, Drive Case, Black
(Superseded to 1739599YP)

$63.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1750777

CAPSCREW, Hex Washer Head, 1/4 x 20 x 2
(Superseded to 1750777YP)

$3.99

$

In Stock, only 2 left!

0

0040

Simplicity 7091603

NUT, Nylock, 1/4
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0050

Simplicity 1750444

SCREW, Hi-Low, 1/4-15 x 3/4
(Superseded to 7091081SM)

$4.49

$

In Stock, Qty 12

0

0060

Simplicity 1750447

SCREW, Hex Washer Head, Trilob,1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

0070

Simplicity 311237

WHEEL, 2 x 8, Plastic 1/2, SILVER
(Superseded to 311237YP)

$20.99

$

In Stock, only 1 left!

0

0080

Simplicity 192050

E-RING, Axle, 1/2
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

0090

Simplicity 7025074

WASHER, Flat, 17/32 x 5/8
(Superseded to 7025074SM)

$4.49

$

Usually ships in 2-12 days

0

0100

Simplicity 1750638

CAPSCREW, Hex Washer Head, 10-24 x 3/4
(Superseded to 1750638YP)

$4.49

$

Usually ships in 2-12 days

0

0110

Simplicity 885118

NUT, U-Style Speed, #10
(Superseded to 885118YP)

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1739752

MOISTURE COVER, Chute
(Superseded to 1739752YP)

$5.49

$

In Stock, only 1 left!

0

0130

Simplicity 723361

SCREW, Hex Washer Head, #10-HL x 5/8
(Superseded to 316042MA)

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 1751540

HUBCAP
(Superseded to 1751540YP)

$3.99

$

Usually ships in 2-12 days

0
