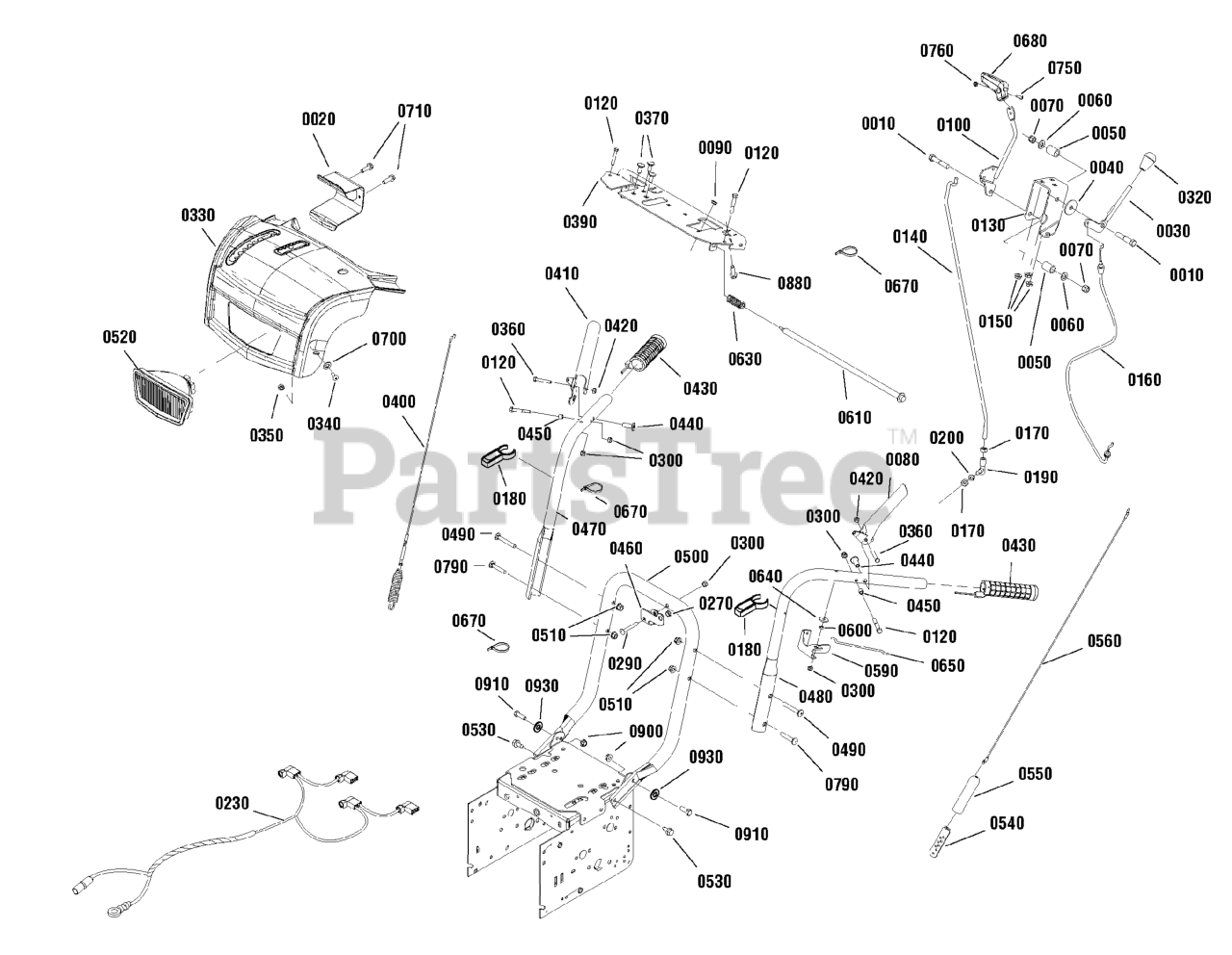

1695874 - Brute 33" Snow Thrower, 16.5 Gross TP (2010) Handle & Controls Group Parts Diagram

33" Snow Thrower, 16.5 Gross TP

Handle & Controls Group Parts Diagram

  • Title

0010

Murray 1923701SM

CAPSCREW, Hex Head 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0020

Murray 1736305AYP

BRACKET, LIGHT MOUNT

$31.99

$

Usually ships in 2-12 days

0

0030

Murray 1736192YP

LEVER, DEFLECTOR CONTROL

$13.99

$

Usually ships in 2-12 days

0

0040

Murray 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 50786MA

SPRING, COMPRESSION .509 x .75

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0070

Murray 1919439SM

NUT, Hex Lock ESNA Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1739782AYP

LEVER, Clutch, Left

$

$

Not available

0090

Murray 1667588SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

0100

Murray 1736836YP

ROD & BRACKET ASSEMBLY, SPEED
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0120

Murray 1921962SM

CAPSCREW, HEX .250- 20 x 1.75
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0130

Murray 1737684YP

SPEED & DEFLECTOR CONTROL, BRACKET

$16.99

$

Usually ships in 2-12 days

0

0140

Murray 1751543YP

ROD, LINK SPEED CONTROL
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0150

Murray 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0160

Murray 1732971SM

CABLE ASSEMBLY, DEFLECTOR
(Superseded to 1750623YP)

$49.99

$

In Stock, Qty 6

0

0170

Murray 2820263SM

NUT, Hex 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1739510YP

BRACKET, Mounting, Panel

$14.99

$

Usually ships in 2-12 days

0

0190

Murray 50782MA

BALLJOINT, STEEL

$21.99

$

In Stock, Qty 6

0

0200

Murray 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0230

Murray 1738285YP

WIRING HARNESS

$42.99

$

Usually ships in 2-12 days

0

0270

Murray 1501874MA

BUSHING

$4.99

$

In Stock, only 1 left!

0

0290

Murray 1931323SM

CARRIAGE BOLT, 1/4-20 x 2

$4.49

$

Usually ships in 2-12 days

0

0300

Murray 1920397SM

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0320

Murray 1732470SM

KNOB

$19.99

$

In Stock, Qty 6

0

0330

Murray 1736345YP

COVER, Panel Assembly
(Superseded to 1757547YP)

$119.99

$

Usually ships in 2-12 days

0

0340

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

0350

Murray 7091576SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

0360

Murray 1750554YP

BOLT, Shoulder, 1/4 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

0370

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0390

Murray 1739500AYP

SUPPORT, DASH PANEL

$51.99

$

Usually ships in 2-12 days

0

0400

Murray 1732471SM

CABLE & SPRING ASSEMBLY

$

$

Not available

0410

Murray 1739783AYP

CLUTCH GRIP, RH PLASTISOL

$28.99

$

In Stock, only 1 left!

0

0420

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Murray 1723965SM

HEATED GRIP

$86.99

$

Usually ships in 2-12 days

0

0440

Murray 1736542YP

SPACER, Handle

$4.49

$

Usually ships in 2-12 days

0

0450

Murray 1678392SM

SPACER
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0460

Murray 1735589YP

BRACKET, ROD SUPPORT

$9.49

$

Usually ships in 2-12 days

0

0470

Murray 1734587ASM

HANDLE, UPPER RH

$51.99

$

Usually ships in 2-12 days

0

0480

Murray 1734586ASM

HANDLE. UPPER LH

$55.99

$

In Stock, only 1 left!

0

0490

Murray 1960273SM

CARRIAGE BOLT, 5/16-18 x 2-1/4 G5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0500

Murray 1736301AYP

HANDLE, LOWER

$96.99

$

Usually ships in 2-12 days

0

--

BULB, TWIN LIGHT

Note: (15W 12V)

$

$

Not available

0520

Murray 1736208YP

HEAD LIGHT ASSEMBLY

$42.99

$

Usually ships in 2-12 days

0

0530

Murray 1664847SM

CAPSCREW, HEX HD 5/16-18 x 5/8 G5
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0540

Murray 313441MA

BRACKET, CABLE ADJUST

$

$

Not available

0550

Murray 308146MA

BOOT, Control Spring

$6.49

$

Usually ships in 2-12 days

0

0560

Murray 1502113MA

CABLE, Drive

$22.99

$

In Stock, Qty 20+

0

0590

Murray 1733505ASM

BRACKET, Free Hand Control
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0600

Murray 1733095SM

SPACER, Powdered Metal

$4.49

$

Usually ships in 2-12 days

0

0510

Murray 1739305YP

NUT, Hex Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0610

Murray 1733509SM

ROD, FREE HAND CONTROL

$81.99

$

Usually ships in 2-12 days

0

0630

Murray 2108360SM

SPRING, Compression

$5.49

$

In Stock, only 1 left!

0

0640

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0650

Murray 1736360YP

ROD, HOLDDOWN

$11.99

$

Usually ships in 2-12 days

0

0670

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0680

Murray 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0700

Murray 1921319SM

WASHER, 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0710

Murray 316042MA

SCREW, 10 X .62

$4.49

$

Usually ships in 2-12 days

0

0750

Murray 1960589SM

SCREW, Round Head Phillips #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0760

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0790

Murray 1931338SM

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck, GR5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0900

Murray 1935048SM

NUT, Hex Flange Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0910

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0930

Murray 71071MA

WASHER, Flat, 3/8
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0
