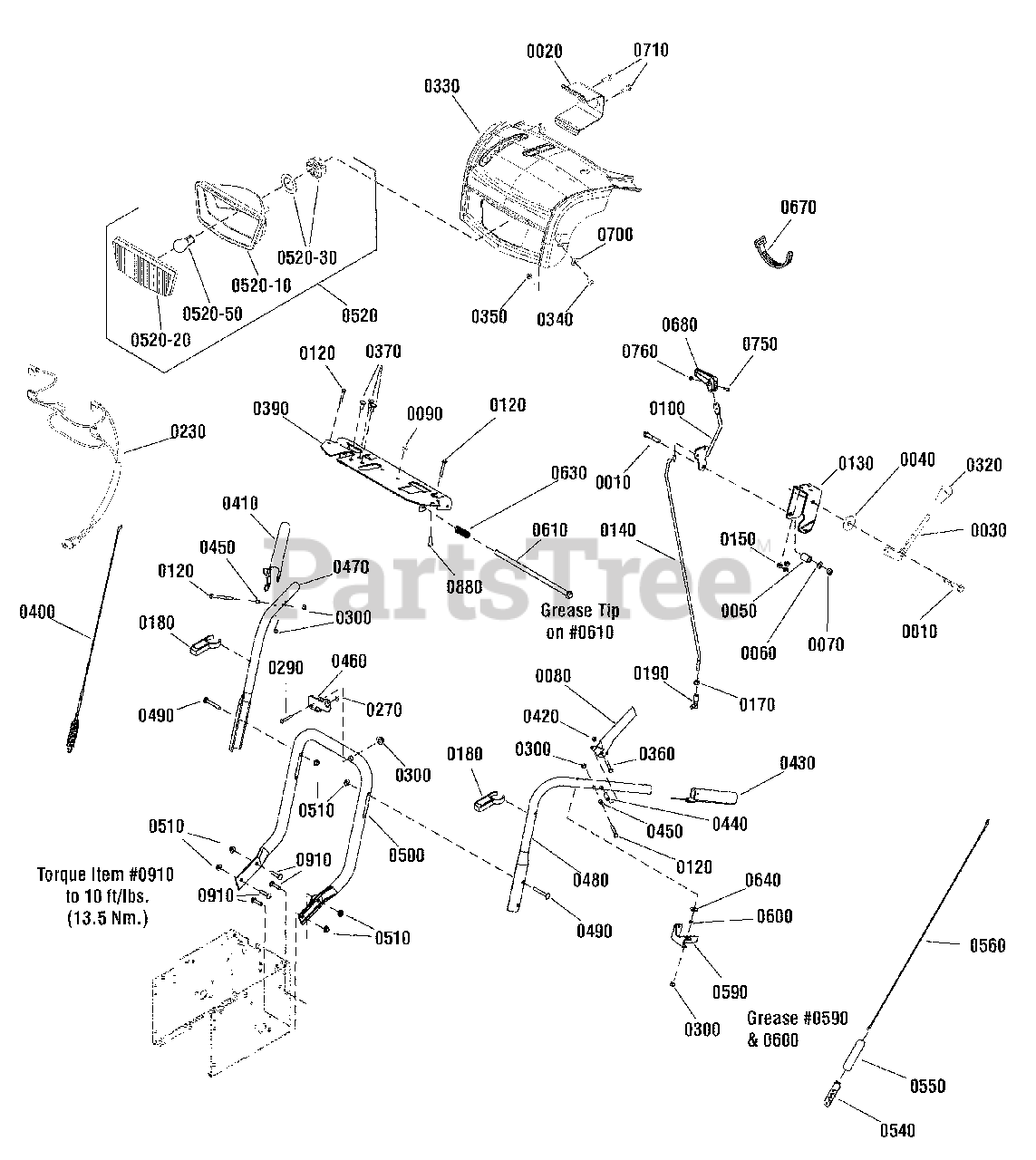

1695872 - Brute 27" Snow Thrower, 11.5 Gross TP (2010) Handles and Controls Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

Handles and Controls Group Parts Diagram

  • Title

0010

Briggs & Stratton 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0020

Briggs & Stratton 1736305AYP

BRACKET, Light Mount

$31.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 1736192YP

LEVER, Deflector Control

$13.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0050

Briggs & Stratton 50786MA

SPRING, 3/4

$5.49

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0070

Briggs & Stratton 1919439SM

NUT, Hex Lock, Esna Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0080

Briggs & Stratton 1739782AYP

LEVER, Clutch, Left

$

$

Not available

0090

Briggs & Stratton 1667588SM

BUSHING, Nylon, 3/8ID x 1/2OD x 1/4 long

$5.99

$

In Stock, Qty 20+

0

0100

Briggs & Stratton 1736836YP

SPEED LEVER
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0120

Briggs & Stratton 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 1751543YP

ROD, Speed Control
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0170

Briggs & Stratton 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0180

Briggs & Stratton 1739510YP

BRACKET, Mounting, Panel

$14.99

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 1739290YP

BALL JOINT
(Superseded to 703224)

$21.99

$

In Stock, only 2 left!

0

0230

Briggs & Stratton 1738286YP

WIRE HARNESS, Headlights

$25.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 1501874MA

BUSHING, Chute Crank

$4.99

$

In Stock, only 1 left!

0

0290

Briggs & Stratton 1931323SM

BOLT, Carriage, 1/4-20 x 2, G5

$4.49

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 1920397SM

NUT, Hex Lock, Esna Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0320

Briggs & Stratton 1732470SM

KNOB, Internal Thread, 3/8-16

$19.99

$

In Stock, Qty 6

0

0330

Briggs & Stratton 1736345YP

DASH ASSEMBLY
(Superseded to 1757547YP)

$119.99

$

Usually ships in 2-12 days

0

0340

Briggs & Stratton 1960001SM

SCREW, Hex Washer Head, Plastite, #10-14 x 5/8
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

0350

Briggs & Stratton 7091576SM

NUT, Hex, 1/4-20 x G5
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

0360

Briggs & Stratton 1750554YP

BOLT, Shoulder

$4.99

$

In Stock, only 1 left!

0

0370

Briggs & Stratton 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0390

Briggs & Stratton 1739500AYP

SUPPORT, Dash Panel

$51.99

$

Usually ships in 2-12 days

0

0400

Briggs & Stratton 1737544YP

CABLE AND SPRING ASSEMBLY, Auger Drive, Right
(Superseded to 703221)

$24.99

$

In Stock, only 4 left!

0

0410

Briggs & Stratton 1739783AYP

LEVER, Clutch, Right

$28.99

$

In Stock, only 1 left!

0

0420

Briggs & Stratton 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Briggs & Stratton 1726317SM

HAND GRIP, Heated

$8.49

$

In Stock, only 1 left!

0

0440

Briggs & Stratton 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0450

Briggs & Stratton 1678392SM

SPACER, 1/4ID x 3/80OD x 5/16
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0460

Briggs & Stratton 1735589YP

BRACKET, Rod Support

$9.49

$

Usually ships in 2-12 days

0

0470

Briggs & Stratton 1734587ASM

HANDLE, Upper, Right

$51.99

$

Usually ships in 2-12 days

0

0480

Briggs & Stratton 1734586ASM

HANDLE, Upper, Left

$55.99

$

In Stock, only 1 left!

0

0490

Briggs & Stratton 1960273SM

BOLT, Carriage, 5/16-18 x 2-1/4, G5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0500

Briggs & Stratton 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0510

Briggs & Stratton 1739305YP

NUT, Hex Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0520

Briggs & Stratton 1736208YP

HEADLIGHT ASSEMBLY

$42.99

$

Usually ships in 2-12 days

0

0520-10

DEFLECTOR, Light

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-20

LENS, Light

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-30

Briggs & Stratton 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

Note: (Included with Ref. No. 0520)

$10.99

$

Usually ships in 2-12 days

0

0520-50

* BULB, Light, 12V 15W

Note: (Included with Ref. No. 0520)

$

$

Not available

0540

Briggs & Stratton 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0550

Briggs & Stratton 308146MA

BOOT, Spring End Cover, 4"

$6.49

$

Usually ships in 2-12 days

0

0560

Briggs & Stratton 1502113MA

CABLE, Front Drive

$22.99

$

In Stock, Qty 20+

0

0590

Briggs & Stratton 1733505ASM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0600

Briggs & Stratton 1733095SM

SPACER, 1/4ID x 3/8OD x 1/8

$4.49

$

Usually ships in 2-12 days

0

0610

Briggs & Stratton 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0630

Briggs & Stratton 2108360SM

SPRING, Compression

$5.49

$

In Stock, only 1 left!

0

0640

Briggs & Stratton 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0670

Briggs & Stratton 1701011SM

TIE, Self Lock, 1/4

$5.49

$

In Stock, only 2 left!

0

0680

Briggs & Stratton 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0700

Briggs & Stratton 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0710

Briggs & Stratton 316042MA

SCREW, Hex Washer, #10-HL x 5/8

$4.49

$

Usually ships in 2-12 days

0

0750

Briggs & Stratton 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0760

Briggs & Stratton 1933896SM

NUT, Hex Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0880

Briggs & Stratton 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0910

Briggs & Stratton 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0
