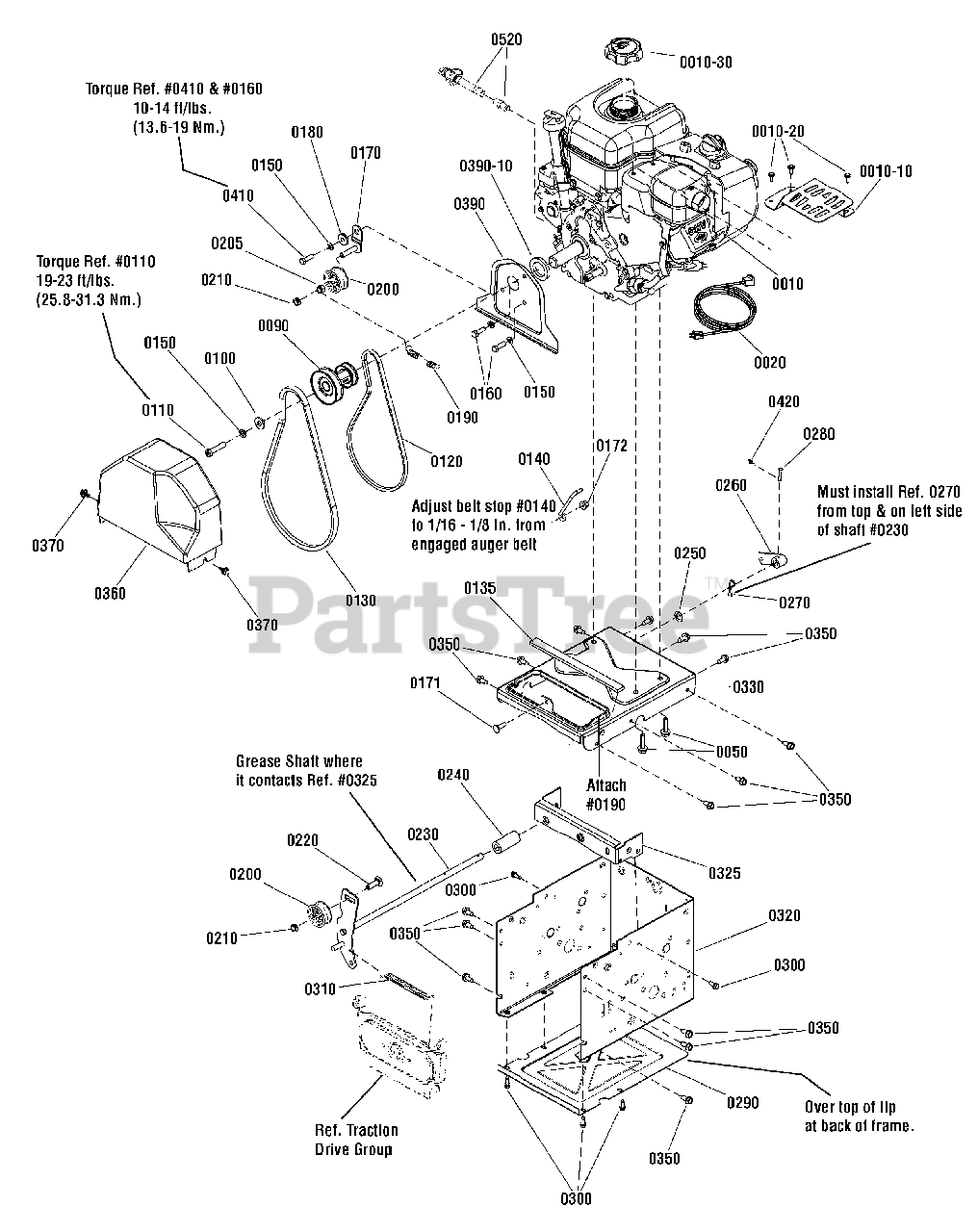

1695872 - Brute 27" Snow Thrower, 11.5 Gross TP (2010) Engine Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

Engine Group Parts Diagram

  • Title

0010

Briggs & Stratton 15C114-0120-E8

* ENGINE, 11.5TP Briggs & Stratton

Note: (Engine Model: 15C114-0120-E8)

$

$

Not available

0010-10

Briggs & Stratton 797003

GUARD, Muffler

$45.99

$

Usually ships in 2-12 days

0

0010-20

Briggs & Stratton 699234

SCREW, Hex Head, Muffler Guard

$3.99

$

In Stock, only 2 left!

0

0010-30

Briggs & Stratton 795027

CAP, FUEL

$10.99

$

In Stock, Qty 20+

0

0020

Briggs & Stratton 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

0050

Briggs & Stratton 75246GS

SCREW, Hex Head, Trilobular, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 1739514YP

PULLEY ASSEMBLY

$42.99

$

In Stock, only 2 left!

0

0100

Briggs & Stratton 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 1441MA

CAPSCREW, Hex Head, 5/16-24 x 1-3/4

$4.49

$

Usually ships in 2-12 days

0

0120

Briggs & Stratton 1733324SM

V-BELT, Traction Drive, 3L 33.13

$19.99

$

In Stock, Qty 20+

0

0130

Briggs & Stratton 585416MA

BELT, Auger, V4L 38.10 MF 05-10

$22.99

$

In Stock, Qty 20+

0

0135

Briggs & Stratton 1750314YP

SEAL, Strip

$8.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 1737377YP

STOP, Belt

$11.99

$

In Stock, only 1 left!

0

0150

Briggs & Stratton 1917356SM

LOCKWASHER, Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Briggs & Stratton 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5

$3.99

$

Usually ships in 2-12 days

0

0170

Briggs & Stratton 1739846YP

BRACKET, Idler

$8.99

$

Usually ships in 2-12 days

0

0171

Briggs & Stratton 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0172

Briggs & Stratton 1960684SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

0180

Briggs & Stratton 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0

0190

Briggs & Stratton 165X164MA

SPRING, Extension, Idler

$7.49

$

In Stock, only 3 left!

0

0200

Briggs & Stratton 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, Qty 6

0

0205

Briggs & Stratton 7091299SM

NUT, Nylock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0210

Briggs & Stratton 1960251SM

NUT, Hex Centerlock Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0220

Briggs & Stratton 585781MA

BOLT, Carriage, 3/8-16 x 1-1/4, G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 1739574YP

IDLER, Auger

$38.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 1739964YP

SPACER, Auger Bracket

$9.49

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Briggs & Stratton 1733451SM

ARM, Control

$20.99

$

In Stock, only 3 left!

0

0270

Briggs & Stratton 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Briggs & Stratton 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

0290

Briggs & Stratton 1737221AYP

PANEL, Bottom
(Superseded to 1737221BMYP)

$43.99

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0310

Briggs & Stratton 165X159MA

SPRING, Extension, Auger, 5

$6.99

$

In Stock, Qty 9

0

0320

Briggs & Stratton 1739107ZYP

FRAME BOX

$119.99

$

Usually ships in 2-12 days

0

0325

Briggs & Stratton 1739093AYP

BRACKET, Auger and Traction Rod Mount
(Superseded to 1739093BMYP)

$19.99

$

Usually ships in 2-12 days

0

0330

Briggs & Stratton 1739450ZYP

PLATE, Engine

$51.99

$

Usually ships in 2-12 days

0

0350

Briggs & Stratton 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Briggs & Stratton 1750551YP

COVER, Belt

$26.99

$

Usually ships in 2-12 days

0

0370

Briggs & Stratton 26X306MA

SCREW, Hex Washer Head, 1/4 x 3/4

$4.99

$

Usually ships in 2-12 days

0

0390

Briggs & Stratton 1733868ASM

WATER SHIELD
(Superseded to 1733868BMYP)

$13.99

$

In Stock, only 1 left!

0

0390-10

Briggs & Stratton 1733898SM

SEAL, Foam

$6.49

$

Usually ships in 2-12 days

0

0410

Briggs & Stratton 910828MA

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0420

Briggs & Stratton 7023590SM

COTTER PIN, 1/4

$3.99

$

In Stock, Qty 20+

0

0520

Briggs & Stratton 798980

OIL DRAIN ASSEMBLY

Note: (Optional Accessory)

$

$

Not available
