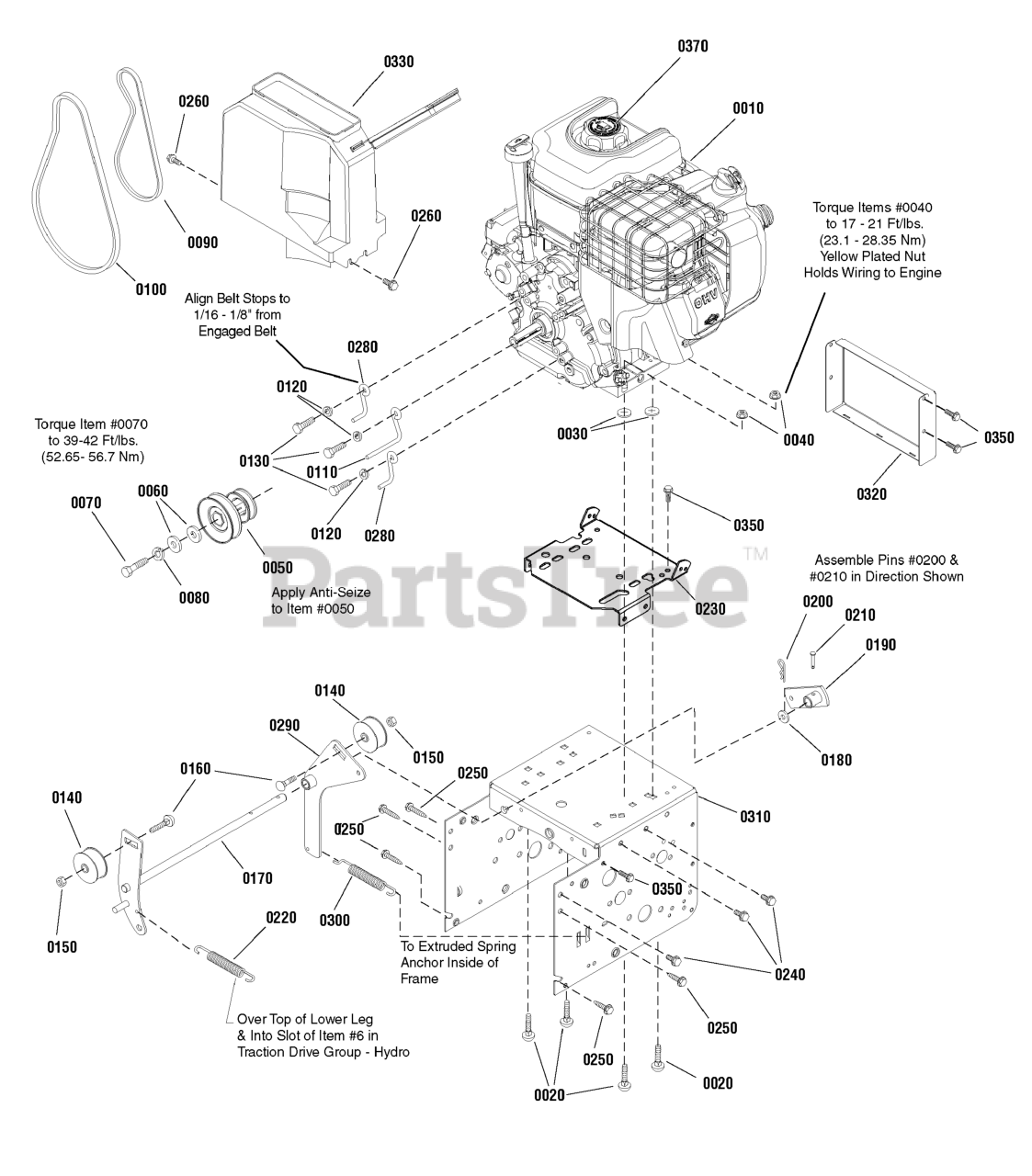

1695868 (CM 741450 H) - Canadiana 29" Snow Thrower, Canada (2010) Engine & Frame Group Parts Diagram

29" Snow Thrower, Canada

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 20M314-0127-E1

* ENGINE, 14.5TP, Briggs & Stratton

Note: (Engine Model: 20M314-0127-E1)

$

$

Currently unavailable

0020

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0030

Murray 028X76MA

PUSHNUT, 1/4

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 1739305YP

NUT, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0050

Murray 1501109MA

PULLEY, Engine

$41.99

$

In Stock, only 2 left!

0

0060

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0070

Murray 1960428SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/4, G8
(Superseded to 703165)

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 1916965SM

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

0090

Murray 1733323SM

V-BELT, Traction Drive, 3L 25.65

$24.99

$

Usually ships in 2-12 days

0

0100

Murray 585416MA

BELT, Auger Drive, V4L 38.10

$22.99

$

In Stock, Qty 20+

0

0110

Murray 1739070YP

BELT GUIDE

$7.99

$

In Stock, Qty 5

0

0120

Murray 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0130

Murray 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5

$3.99

$

Usually ships in 2-12 days

0

0140

Murray 1502120MA

IDLER

$21.99

$

In Stock, Qty 6

0

0150

Murray 1960251SM

NUT, Hex Centerlock Jaam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0160

Murray 585781MA

BOLT, Carriage, 3/8-16 x 1-1/4, G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0170

Murray 1501226YZMA

AUGER IDLER

$52.99

$

Usually ships in 2-12 days

0

0180

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0190

Murray 1733451SM

ARM, Control

$20.99

$

In Stock, only 3 left!

0

0200

Murray 0031X6MA

PIN, Hair 3/8 x 1-5/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0210

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

0220

Murray 165X159MA

SPRING, Extension Auger

$6.99

$

In Stock, Qty 9

0

0230

Murray 1733583BNYP

PLATE, Engine Mount

$43.99

$

Usually ships in 2-12 days

0

0240

Murray 1924856SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0250

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0260

Murray 26X306MA

CAPSCREW, Tapping, 1/4 x 3/4

$4.99

$

Usually ships in 2-12 days

0

0280

Murray 1733013SM

STOP, Belt

$27.99

$

Usually ships in 2-12 days

0

0290

Murray 1501370YZMA

DRIVE IDLER

$41.99

$

Usually ships in 2-12 days

0

0300

Murray 165X155MA

SPRING, Extension Control

$6.49

$

In Stock, only 1 left!

0

0310

Murray 1740590BNYP

FRAME BOX

$93.99

$

Usually ships in 2-12 days

0

0320

Murray 1740596AYP

BACK PANEL

$39.99

$

Usually ships in 2-12 days

0

0330

Murray 1741069MA

BELT COVER ASSEMBLY

$

$

Not available

0350

Murray 1927429SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0370

Murray 698109

CAP, Gas

$

$

Not available
