1695867 (CM 741450 S) - Canadiana 29" Snow Thrower, Canada (2010) Wheels and Tires Group Parts Diagram

29" Snow Thrower, Canada

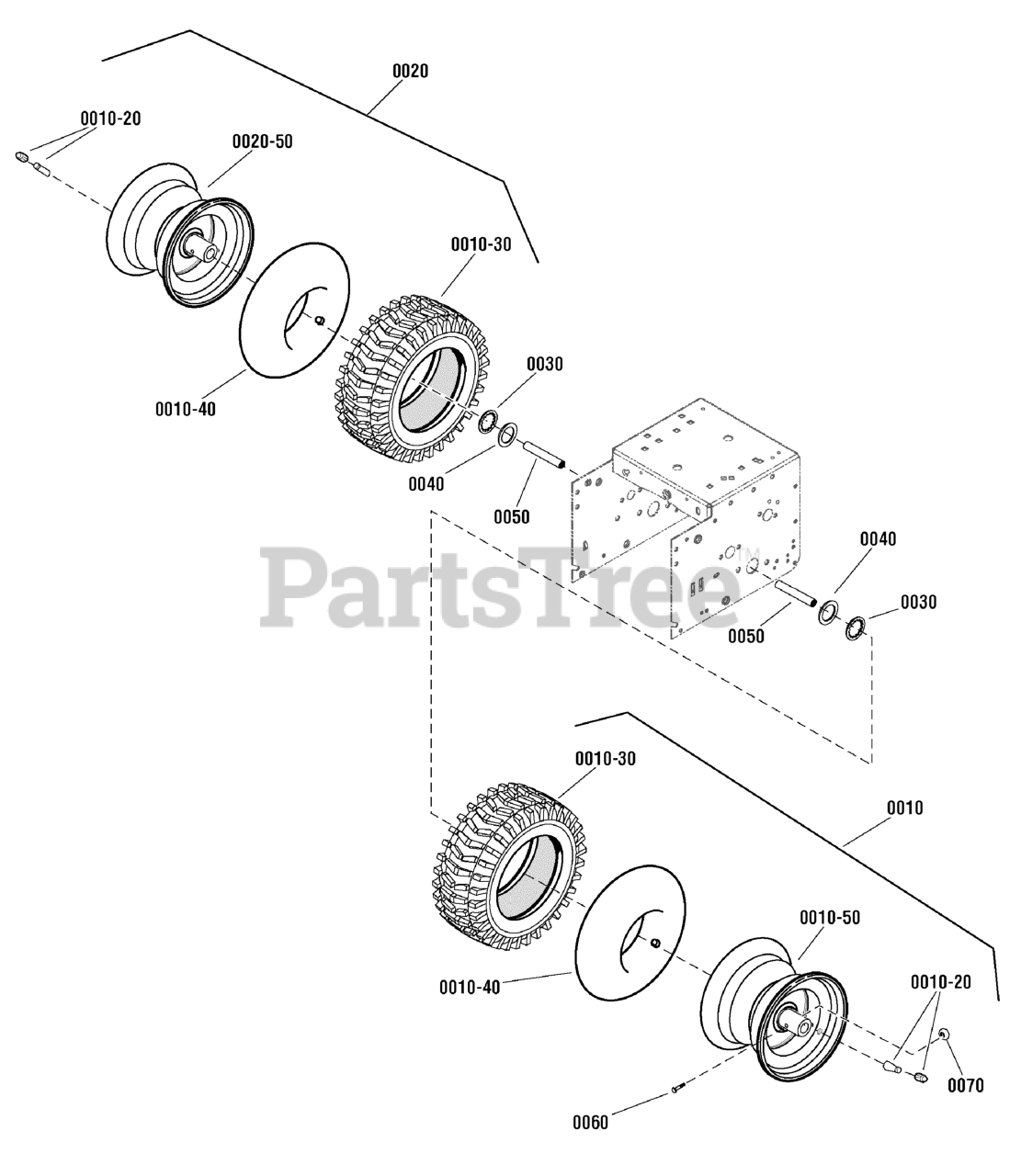

Wheels and Tires Group Parts Diagram

  • Title

0010

Murray 1751296YP

WHEEL ASSEMBLY, 16 x 4.8-8, L.H.

Note: (Includes Ref. Nos. 0010-20, 0010-30 & 0010-50)

$153.99

$

Usually ships in 2-12 days

0

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0010-30

Murray 1751298YP

TIRE, 4.80-8

$107.99

$

Usually ships in 2-12 days

0

0010-40

Murray 2153038SM

TUBE, Tire 4.80/4.00

$35.99

$

Usually ships in 2-12 days

0

0010-50

*RIM, 16 X 4.8, L.H.

$

$

Not available

0020

Murray 1751297YP

WHEEL ASSEMBLY, 16 x 4.8-8, R.H.

Note: (Includes Ref. Nos. 0020-50, 0010-20 & 0010-30)

$170.99

$

Usually ships in 2-12 days

0

0020-50

*RIM, 16 X 4.8, R.H.

$

$

Not available

0030

Murray 1657528SM

RETAINER

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, 3/4

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1501138MA

BUSHING, Wheel

$

$

Not available

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4, G5

$4.99

$

In Stock, Qty 5

0

0070

Murray 15X145MA

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0030

Murray 1657528SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 20+

0

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4

$4.99

$

In Stock, Qty 5

0

0070

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
