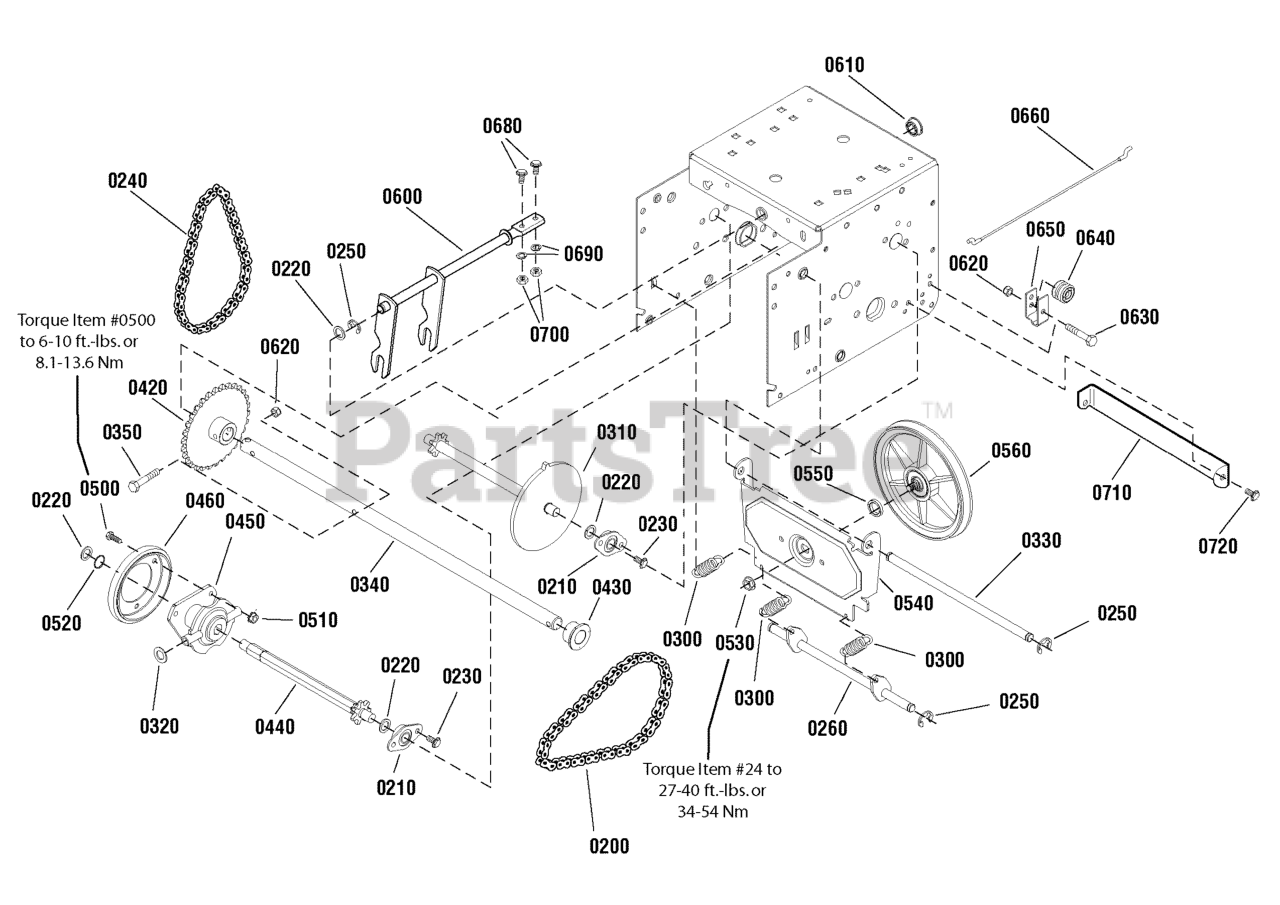

1695865 (CH 61900) - Canadiana 24" Snow Thrower, 9hp, Canada (2010) Traction Drive Group Parts Diagram

24" Snow Thrower, 9hp, Canada

Traction Drive Group Parts Diagram

  • Title

0200

Murray 724613

CHAIN, Roller, 420 x 19"
(Superseded to 579851MA)

$21.99

$

In Stock, Qty 15

0

0210

Murray 723655

RETAINER & BUSHING ASSEMBLY
(Superseded to 334163MA)

$11.99

$

In Stock, only 2 left!

0

0220

Murray 724619

WASHER, Flat, 1/2
(Superseded to 579858MA)

$4.49

$

In Stock, Qty 20+

0

0230

Murray 1924856

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0240

Murray 724627

CHAIN, Roller, 420 x 18"
(Superseded to 579868MA)

$20.99

$

In Stock, Qty 17

0

0250

Murray 721910

RETAINER, Ring, 7/16
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 11

0

0260

Murray 722377

SPRING LINK
(Superseded to 1502105YZMA)

$33.99

$

Usually ships in 2-12 days

0

0300

Murray 1736469

SPRING, Extension
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 20+

0

0310

Murray 722081

SPROCKET
(Superseded to 1501237MA)

$80.99

$

In Stock, only 3 left!

0

0320

Murray 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0330

Murray 722082

AXLE, Swing Plate, 10-1/2"
(Superseded to 703328)

$21.99

$

Usually ships in 2-12 days

0

0340

Murray 722209

AXLE, 21-3/8"
(Superseded to 1501562YZMA)

$59.99

$

Usually ships in 2-12 days

0

0350

Murray 720220

BOLT, Hex, 1/4-20 x 1-3/4 G8
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

0420

Murray 722080

AXLE SPROCKET, 30T
(Superseded to 1501089MA)

$42.99

$

In Stock, Qty 7

0

0430

Murray 722091

BEARING, Axle
(Superseded to 1501114MA)

$11.99

$

In Stock, Qty 20+

0

0440

Murray 722083

HEX SHAFT & SPROCKET ASSEMBLY
(Superseded to 1501100MA)

$

$

Not available

0450

Murray 1739282

BEARING TRUNNION ASSEMBLY
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

0460

Murray 722185

WHEEL, Friction
(Superseded to 1501435MA)

$27.99

$

In Stock, Qty 20+

0

0500

Murray 1921959

CAPSCREW, Hex Head, 1/4-20 x 5/8, G5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

0510

Murray 1928372

NUT, Hex KEPS, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

0520

Murray 1733326

RING, Retaining, External Tooth
(Superseded to 1733326SM)

$4.49

$

In Stock, only 1 left!

0

0530

Murray 722391

NUT, Flange Lock, 3/8-24
(Superseded to 15X114MA)

$4.49

$

Usually ships in 2-12 days

0

0540

Murray 722069

PLATE, Swinging
(Superseded to 1501057YZMA)

$37.99

$

In Stock, only 1 left!

0

0550

Murray 722110

SPACER, Friction Pulley
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

0560

Murray 722092

FRICTION PULLEY ASSEMBLY
(Superseded to 1501115MA)

$

$

Not available

0600

Murray 722078

SPEED SELECT
(Superseded to 1501085YZMA)

$40.99

$

Usually ships in 2-12 days

0

0610

Murray 724636

BEARING, Flange, 1/2 ID x 7/5 OD
(Superseded to 579944MA)

$15.99

$

Usually ships in 2-12 days

0

0620

Murray 1920397

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0630

Murray 1922837

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0640

Murray 724621

SPOOL CABLE, Auger Control
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 7

0

0650

Murray 1750398

BRACKET, Spool
(Superseded to 1750398YP)

$6.49

$

In Stock, only 2 left!

0

0660

Murray 1750403

CABLE, Drive
(Superseded to 1750403YP)

$8.49

$

In Stock, only 1 left!

0

0680

Murray 720017

BOLT, Hex, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

0690

Murray 7091576

NUT, Hex, 1/4-20, GR5
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

0700

Murray 1916964

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

0710

Murray 722364

BRACKET, Support
(Superseded to 704216)

$9.49

$

Usually ships in 2-12 days

0

0720

Murray 1927429

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0
