1695835 - Murray 27" Snow Thrower, 9hp, Canada (2010) Chute and Rotation Group Parts Diagram

27" Snow Thrower, 9hp, Canada

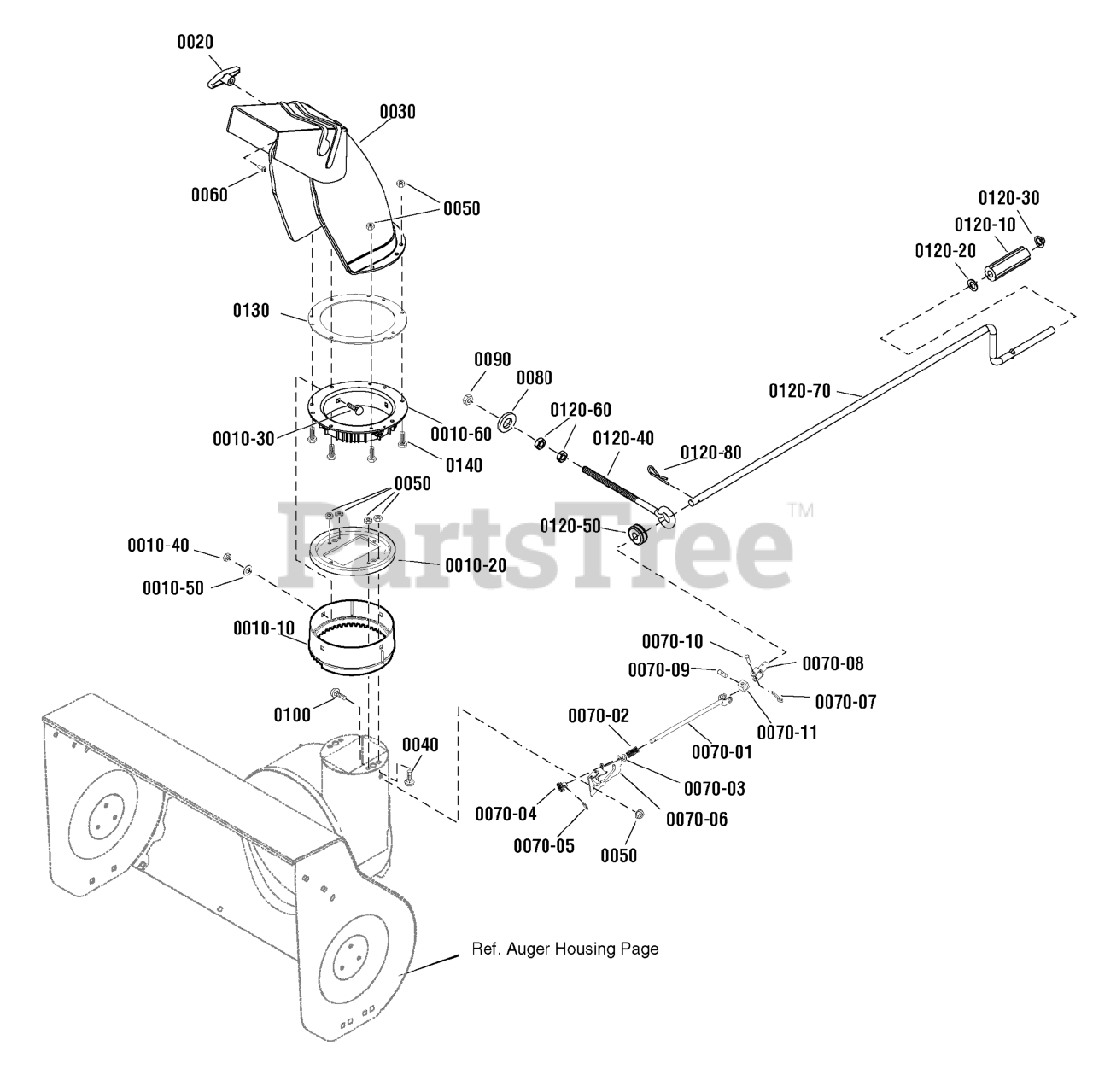

Chute and Rotation Group Parts Diagram

  • Title

0010-10

Murray 1501282MA

RETAINER RING OUTER

$26.99

$

In Stock, only 2 left!

0

0010-20

Murray 1501932YZMA

CHUTE COLLAR

$28.99

$

In Stock, only 1 left!

0

0010-30

Murray 2X100MA

BOLT, 5/16-18 X 1.00
(Superseded to 704217)

$

$

Not available

0010-40

Murray 71038MA

NUT, Hex Nylock, 5/16 - 18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0010-50

Murray 71071MA

WASHER, FLAT .349 X .69 X .066
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0010-60

Murray 1741917YP

RING, Retainer, Inner

$22.99

$

Usually ships in 2-12 days

0

0020

Murray 1501260MA

KNOB, Wing, 5/16-18

$7.99

$

In Stock, Qty 7

0

0030

Murray 1736313YP

CHUTE ASSEMBLY

$107.99

$

Usually ships in 2-12 days

0

0040

Murray 7091530SM

BOLT, Carriage, 1/4C x 3/4, GR5

$3.99

$

In Stock, only 3 left!

0

0050

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0060

Murray 002X97MA

BOLT, CARRIAGE 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0070-01

Murray 1501533YZMA

ASSEMBLY, YOKE & ROD

$11.99

$

Usually ships in 2-12 days

0

0070-02

Murray 164X37MA

SPRING, COMPRESSION

$9.49

$

In Stock, only 1 left!

0

0070-03

Murray 017X48MA

WASHER, .39.75

$8.49

$

Usually ships in 2-12 days

0

0070-04

Murray 1501067MA

GEAR, CHUTE ROTATION 9T

$17.99

$

In Stock, only 2 left!

0

0070-05

Murray 1501293MA

PIN, HAIR

$4.99

$

Usually ships in 2-12 days

0

0070-06

Murray 1740591AYP

BRACKET, CHUTE GEAR

$22.99

$

Usually ships in 2-12 days

0

0070-07

Murray 579493MA

PIN, COTTER

$4.49

$

Usually ships in 2-12 days

0

0070-08

Murray 1501075YZMA

ASSEMBLY, YOKE ADAPTER YZ

$10.99

$

In Stock, only 1 left!

0

0070-09

Murray 578060MA

PIN, Universal Joint

$7.49

$

Usually ships in 2-12 days

0

0070-10

Murray 578309MA

PIN, CLEVIS

$5.49

$

In Stock, Qty 7

0

0070-11

Murray 578063MA

BLOCK, Universal Pivot

$5.49

$

In Stock, only 3 left!

0

0080

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0090

Murray 71046MA

NUT, 3/8-16 HEX NYLOCK

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 02X101MA

BOLT, CARRIAGE 1/4-20 X 0.75
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

0120-10

Murray 51443MA

KNOB, SLEEVE

$7.49

$

Usually ships in 2-12 days

0

0120-20

Murray 309312MA

WASHER, Flat, .400-0.69-.06

$4.49

$

In Stock, only 3 left!

0

0120-30

Murray 73664MA

NUT, PUSH ON 3/8"

$4.99

$

In Stock, only 3 left!

0

0120-40

Murray 1501456MA

EYE BOLT 3/8-16 X 6.50

$9.49

$

Usually ships in 2-12 days

0

0120-50

Murray 148MA

GROMMET,EYE BOLT

$

$

Not available

0120-60

Murray 71045MA

NUT, 3/8-16 HEXJAM

$4.99

$

Usually ships in 2-12 days

0

0120-70

Murray 1501074YZMA

CRANK, ASSEMBLY CHUTE

$

$

Not available

0120-80

Murray 0031X6MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0130

Murray 1736435AYP

RING, Chute Base

$12.99

$

Usually ships in 2-12 days

0

0140

Murray 1935450SM

CAPSCREW, Hex-Flange, 1/4-20 x .75

$4.49

$

Usually ships in 2-12 days

0
