1695810 - Murray 46" Mower Deck 46" Mower Deck - Clutch Group Parts Diagram

46" Mower Deck

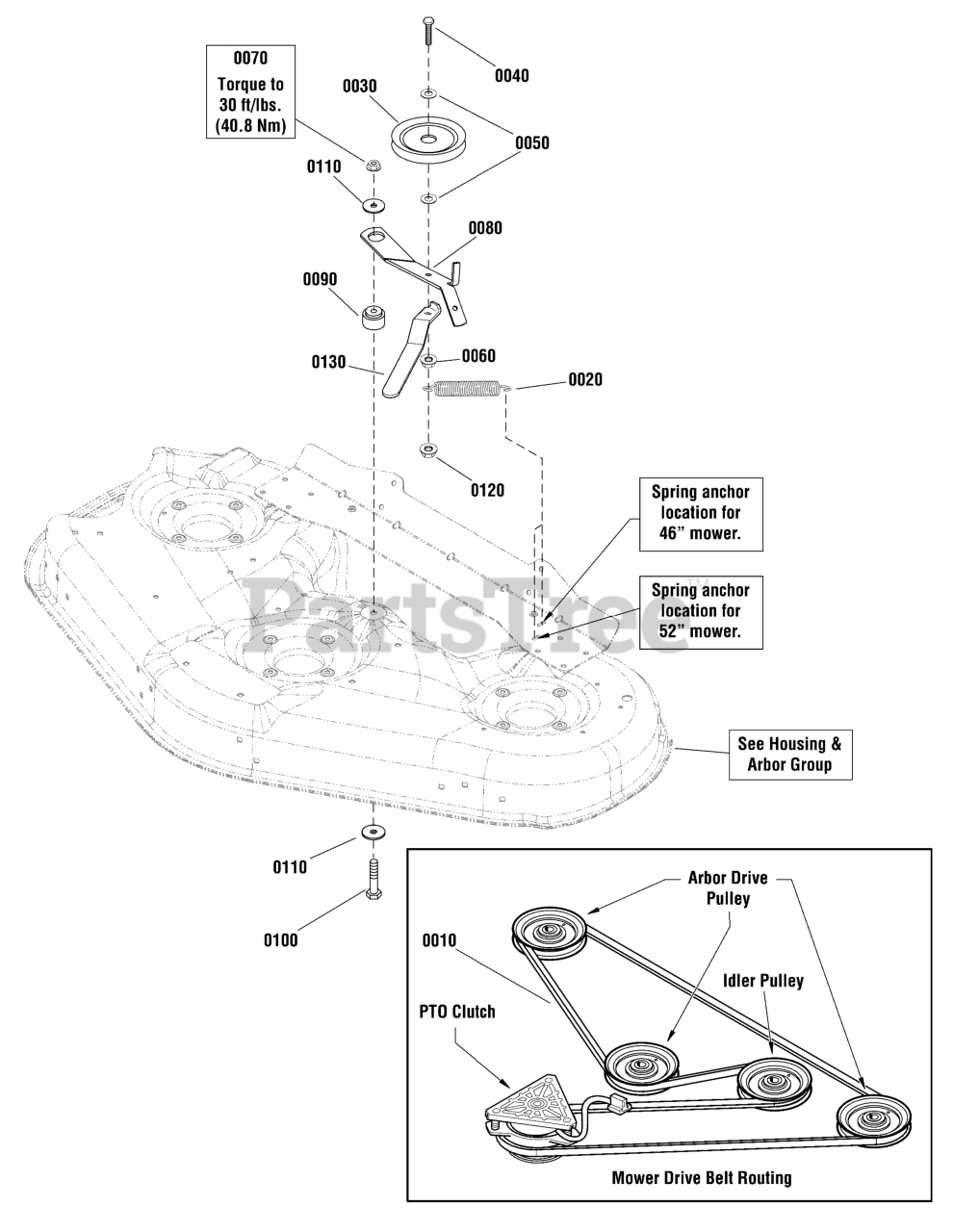

46" Mower Deck - Clutch Group Parts Diagram

  • Title
0010

Murray 1719911SM

V-BELT, 117"

$56.99

$

In Stock, only 3 left!

0

0020

Murray 1715772SM

SPRING, Extension

$13.99

$

In Stock, Qty 20+

0

0030

Murray 1736540YP

PULLEY, Idler

$35.99

$

In Stock, only 3 left!

0

0040

Murray 1933685SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/2, G5

$5.49

$

In Stock, only 1 left!

0

0050

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0060

Murray 1931211SM

NUT, Hex Flange Whiz Lock Small, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0070

Murray 1960339SM

NUT, Hex Flange, MAC Lock Large, 3/8-16

$

$

Not available

0080

Murray 1736551AYP

ARM, Idler

$31.99

$

In Stock, only 1 left!

0

0090

Murray 1729007SM

SPACER, 3/8 OD x 1-1/2 OD x 1

$11.99

$

In Stock, Qty 20+

0

0100

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0110

Murray 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0120

Murray 7091585SM

NUT, Center Lock Hex, 3/8-16 GR5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0130

Murray 1755653BMYP

HANDLE, Idler Arm

$24.99

$

Usually ships in 2-12 days

0
