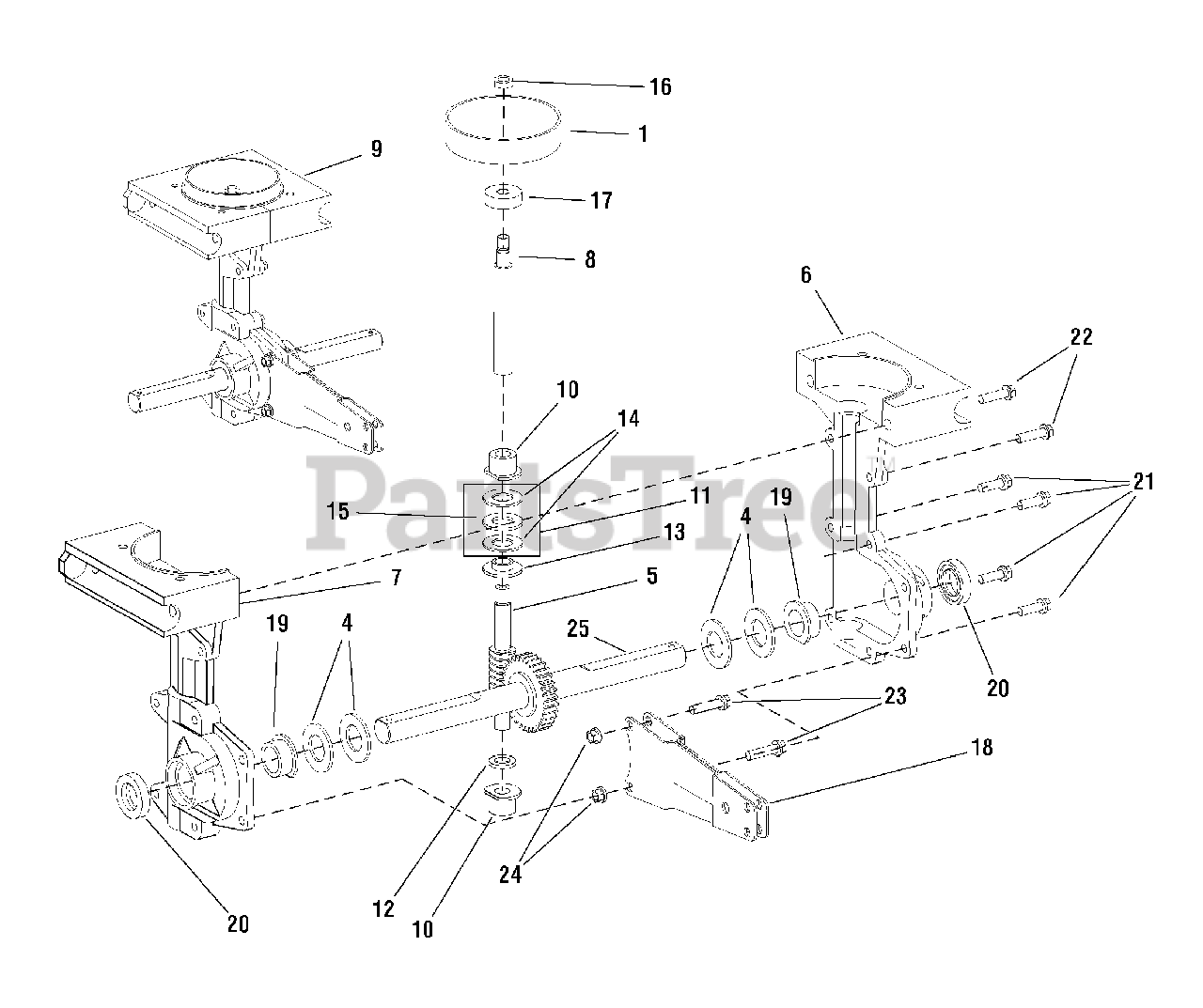

1695764 - Simplicity Roticul Mini Cultivator Transmission Group Parts Diagram

Roticul Mini Cultivator

Transmission Group Parts Diagram

  • Title

1

Simplicity 1751059

CLUTCH DRUM
(Superseded to 1751059YP)

$104.99

$

Usually ships in 2-12 days

0

4

Simplicity 1751060

SHIM, Tine Shaft
(Superseded to 1751060YP)

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 1751061

WORM SPUD
(Superseded to 1751061YP)

$78.99

$

Usually ships in 2-12 days

0

6

Simplicity 1751063

TRANSMISSION CASTING, Right
(Superseded to 1751063YP)

$82.99

$

Usually ships in 2-12 days

0

7

Simplicity 1751064

TRANSMISSION CASTING, Left
(Superseded to 1751064YP)

$82.99

$

Usually ships in 2-12 days

0

8

Simplicity 1751065

DRIVE SHAFT
(Superseded to 1751065YP)

$37.99

$

Usually ships in 2-12 days

0

9

Simplicity 1750907

TRANSMISSION ASSEMBLY
(Superseded to 1751066YP)

$626.99

$

Usually ships in 2-12 days

0

10

Simplicity 1751067

BUSHING, Drive Shaft
(Superseded to 1751067YP)

$54.99

$

Usually ships in 2-12 days

0

11

Simplicity 1751068

THRUST BEARING ASSEMBLY
(Superseded to 1751068YP)

$31.99

$

Usually ships in 2-12 days

0

12

Simplicity 1751069

SPACER, Bushing
(Superseded to 1751069YP)

$21.99

$

Usually ships in 2-12 days

0

13

Simplicity 1751070

REDUCER, Thrust Bearing
(Superseded to 1751070YP)

$22.99

$

Usually ships in 2-12 days

0

14

Simplicity 1670971

WASHER, Thrust
(Superseded to 1670971SM)

$4.49

$

In Stock, Qty 6

0

15

Simplicity 1751071

WASHER, Thrust Bearing Cage
(Superseded to 1751071YP)

$18.99

$

Usually ships in 2-12 days

0

16

Simplicity 2860433

NUT, Jam, M8
(Superseded to 2860433SM)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 1751072

BALL BEARING, 9mm
(Superseded to 1751072YP)

$31.99

$

Usually ships in 2-12 days

0

18

Simplicity 1751073

MOUNT, Arm Wheel / Drag Stake
(Superseded to 1751073YP)

$31.99

$

Usually ships in 2-12 days

0

19

Simplicity 1751074

BUSHING, Tine Shaft
(Superseded to 1751074YP)

$72.99

$

Usually ships in 2-12 days

0

20

Simplicity 1751075

SEAL, Tine Shaft
(Superseded to 1751075YP)

$13.99

$

Usually ships in 2-12 days

0

21

Simplicity 1751076

BOLT, Hex Head Flange, M6 x 1 x 18mm
(Superseded to 1751076YP)

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1751077

BOLT, Hex Head Flange, M6 x 1 x 22mm
(Superseded to 1751077YP)

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 1751079

BOLT, Hex Head Flange, M6 x 1 x 24mm
(Superseded to 1751079YP)

$5.49

$

Usually ships in 2-12 days

0

24

Simplicity 1751081

NUT, Hex Flange, M6
(Superseded to 1751081YP)

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 1751082

TINE GEAR & SHAFT ASSEMBLY
(Superseded to 1751082YP)

Note: (Includes Ref. No. 26 & 27)

$125.99

$

Usually ships in 2-12 days

0

26

* TINE SHAFT

$

$

Not available

27

* GEAR, Tine Shaft

$

$

Not available
