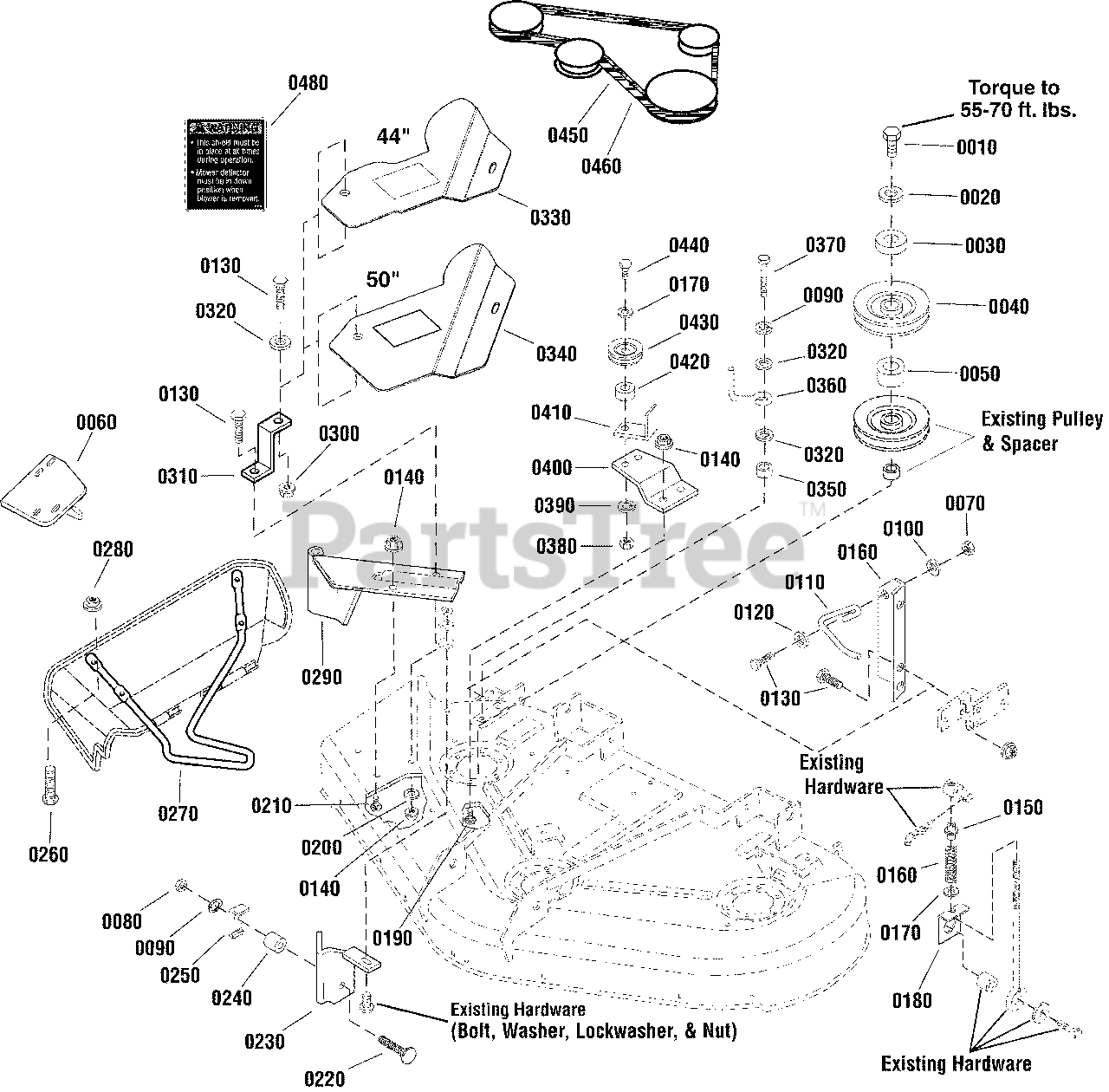

1695761 - Simplicity Clean Sweep Twin Grass Catcher Mount Group Parts Diagram

Clean Sweep Twin Grass Catcher

Mount Group Parts Diagram

  • Title

0010

Simplicity 1713523

NUT, Sleeve, 9/16-18 x 3/4INT x 1.34LG Black
(Superseded to 1713523SM)

$41.99

$

In Stock, only 1 left!

0

0020

Simplicity 1603592

WASHER, Bellville, 0.88ID x 1.75OD x .08TH Black
(Superseded to 1603592SM)

$11.99

$

Usually ships in 2-12 days

0

0030

Simplicity 5049088

SPACER, 0.812ID x 1.75OD x 0.50LG
(Superseded to 5049088SM)

$17.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1709941

PULLEY, 04.30OD 1.000ID 0.579 Groove 9GA
(Superseded to 1709941SM)

$28.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1713623

HUB, .79ID x 1.5OD x .73LG Metafusion
(Superseded to 1713623SM)

$9.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1704983A

BRACKET & PLATE ASSEMBLY, Clamp
(Superseded to 1704983ASM)

$

$

Not available

0070

Simplicity 1923362

NUTHex Centerlock, 5/16-18 Black
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

0080

Simplicity 1917372

NUT,Hex, 5/16-18 NC-2B Black
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0090

Simplicity 1917356

LOCKWASHER, Spring 5/16 Black
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 1704982A

PLATE, Anchor
(Superseded to 1704982ASM)

$67.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1705064

SPRING, Latch, .125WIRE 4.3LG Black
(Superseded to 1705064SM)

$44.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1919381

WASHER, 5/16 (0.34ID x 1.00OD x .13THK) Black
(Superseded to 1919381SM)

$4.49

$

In Stock, only 1 left!

0

0130

Simplicity 1921333

CAPSCREW, Hex Head, 5/16-18 x 1 G5 Black
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0140

Simplicity 1931277

NUT, Hex Flange Whiz Lock, 5/16-18 all Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Simplicity 5049144

SPACER, 0.390ID x 0.75OD x 1.13 LG YELLOW
(Superseded to 5049144SM)

$24.99

$

Usually ships in 2-12 days

0

0160

Simplicity 5049159

SPRING, Compression, 0.720OD x 2.25 LG .085 Wire
(Superseded to 5049159SM)

$39.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1924940

WASHER, 3/8 (0.41ID x 0.87OD x .08THK) Black
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 5049145A

PLATE, Spring Support 10GA
(Superseded to 5049145ASM)

$12.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1923325

CAPSCREW, Hex Head, 5/16-18 x 7/8 G5 Black
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

0200

Simplicity 1922755

WASHER, 3/8 (0.41ID x 1.00OD x .13THK) Black
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0210

Simplicity 1931333

CARRIAGE BOLT, 5/16-18 x 3/4 G5 Black
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0220

Simplicity 1960223

CARRIAGE BOLT, 5/16-18 x 1-1/4 G5 Black
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0230

Simplicity 1704880A

BRACKET ASSEMBLY, Cutoff, 44"
(Superseded to 1704880ASM)

$112.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1666294

SPACER, 0.385ID x 0.668OD x 0.455LG Powdered Metal Black
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

0250

Simplicity 1705308A

BRACKET, L 12GA 1.00WD 1.98LG 0.62LG
(Superseded to 1705308ASM)

$33.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1960404

SCREW, Truss Head Phillips, #10-24 x 3/4 Black
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0270

Simplicity 1718295A

ROD, .375DIA 22.0LG
(Superseded to 1718295ASM)

$112.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1933896

NUT, Hex Lock, 10-24 with Nylon Insert NC3B Black
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0290

Simplicity 1722546A

PIVOT & BRACKETS ASSEMBLY, 38, 44 & 50"
(Superseded to 1722546ASM)

$216.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1919438

NUT, Hex Lock ESNA Light, 5/16-18NC-3B Black
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

0310

Simplicity 1718304A

SUPPORT, Belt Cover 10GA 1.0WD 3.0LG
(Superseded to 1718304ASM)

$14.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1919326

WASHER, 5/16 (0.34ID x 0.75OD x .06THK) Black
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0330

Simplicity 5049171A

COVER, Belt 44" 12GA
(Superseded to 5049171ASM)

$29.99

$

Usually ships in 2-12 days

0

0340

Simplicity 5049170A

COVER, Belt 50" 12GA
(Superseded to 5049170ASM)

$29.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1710703

SPACER, 0.328ID x 0.499OD x 0.625LG Powdered Metal
(Superseded to 1710703SM)

$6.49

$

In Stock, Qty 20+

0

0360

Simplicity 2172845

STOP, Belt, .188WIRE 1.750,2.250 Black
(Superseded to 2172845SM)

$11.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1921221

CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5 Black
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

0380

Simplicity 1916950

NUT, Hex 3/8-16 NC-2B Black
(Superseded to 703577)

$4.49

$

Usually ships in 2-12 days

0

0390

Simplicity 1916965

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

0400

Simplicity 1704768A

BRACKET, Z .164TH 5.88WD 3.21LG
(Superseded to 1704768ASM)

$13.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1724373A

BRACKET, L 12GA 1.24WD 2.24LG 2.28LG
(Superseded to 1724373ASM)

$17.99

$

Usually ships in 2-12 days

0

0420

Simplicity 2108717

SPACER, 0.390ID x 0.625OD x .265LG
(Superseded to 2108717SM)

$17.99

$

Usually ships in 2-12 days

0

0430

Simplicity 1714817

PULLEY, Idler, 2.75OD 0.380ID 0.50W
(Superseded to 703056)

$42.99

$

In Stock, Qty 6

0

0440

Simplicity 1923701

CAPSCREW, Hex Head, 3/8-16 x 2 G5 Black
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

0450

Simplicity 1732945

V-BELT, Cog, 44" Mower Deck
(Superseded to 1732945SM)

$25.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1707956

V-BELT, Cog, 50" Mower Deck
(Superseded to 1734005SM)

$25.99

$

In Stock, only 4 left!

0

0480

Simplicity 1717291

DECAL, WARNING Sheild & Mower Deflector
(Superseded to 1717291SM)

$13.99

$

Usually ships in 2-12 days

0
